VocoPro CLUB-6800 - Manual (Page 3)

CLUB-6800

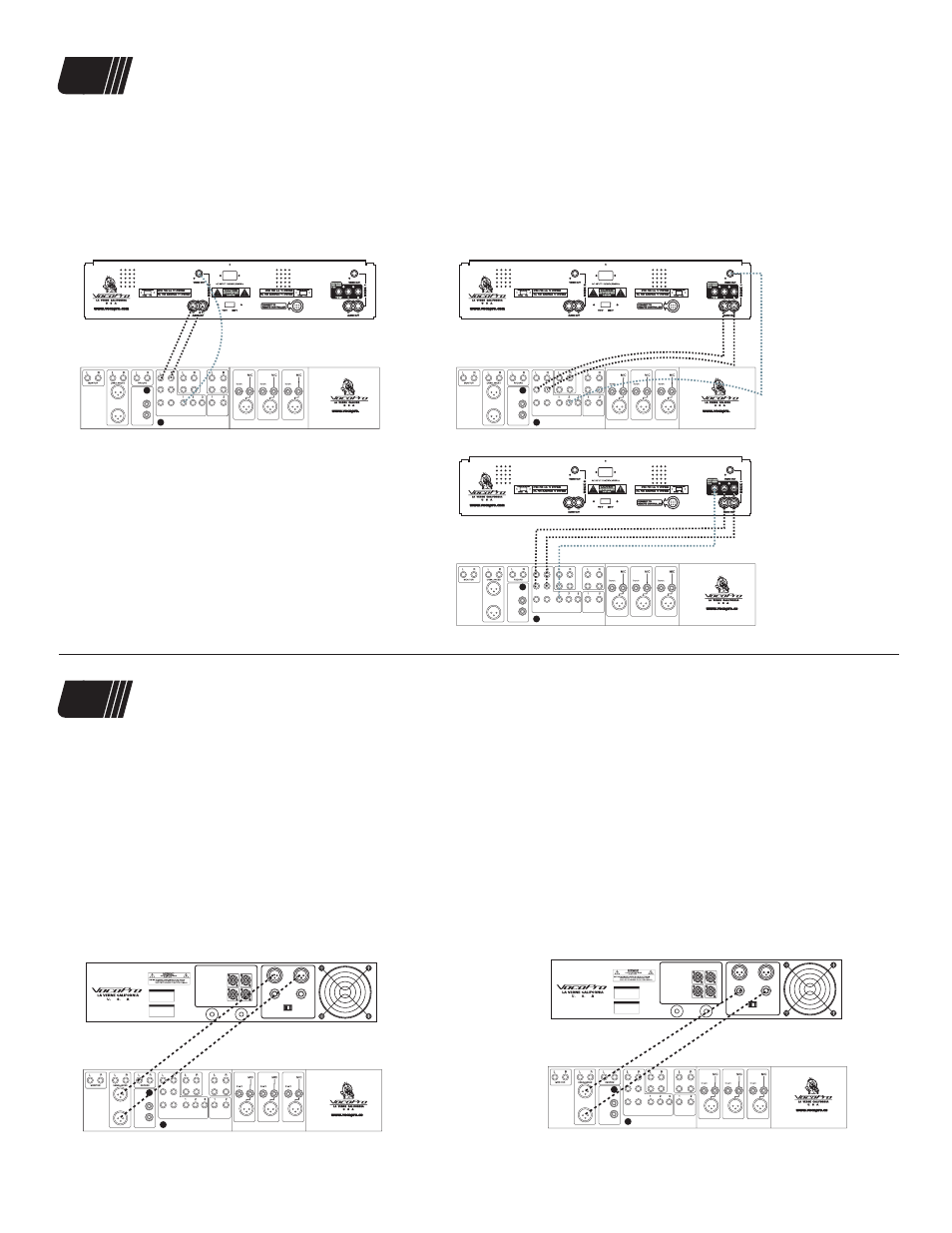

Quick Start
CDG-9000 PRO player unit to KJM-8000 PRO
You have the option of either connecting each deck of the CDG-9000 PRO separately (Fig. 1) or together through a single
SWITCHED output (Fig. 2).
Separately through individual deck outputs (Fig.1)
Using RCA cables:
1. For each deck, connect the L/R (red & white) audio outputs and Video (yellow) output on the CDG-9000 PRO to the
CDG(1) and DVD(3) inputs on the rear panel of the KJM-8000 PRO
CDG(1)
DVD(2)
LD(3)
CDG(1)
DVD(2)
LD(3)
CDG-9000 PRO Player
2
KJM-8000 PRO Mixer
Together through SWITCHED output (Fig. 2)
Using RCA cables:
1. Connect the L/R SWITCHED audio and
SWITCHED video outputs on the CDG-9000
PRO player to the CDG(1) audio input on the
KJM-8000 PRO
CDG(1)
DVD(2)
LD(3)
CDG-9000 PRO Player
KJM-8000 PRO Mixer
KJM-8000 PRO to VP-600 PRO
You can do this using either XLR(f) to XLR(m) cables or XLR(f) to ¼”(m) cables. Below are instructions for each.
3
CDG(1)
DVD(2)
LD(3)
STEREO MONO BRIDGE INPUTS
CH. B CH. A
BALANCED
BRIDGED
OUTPUTS
MODEL VP-600 PRO
STEREO 300W
PER CHANNEL
INTO 4 OHM
600W MONO
BRIDGED INTO
8 OHM
CH. A MONO CH. B
Using two XLR(f) to ¼”(m) (Fig. 2)
1. Connect the XLR(f) end to the LEFT MASTER AUDIO XLR
output on the KJM-8000 PRO and the ¼”(m) end to the CH.
B ¼” audio input on the VP-600 PRO.
2. Now do the same thing except now go from the RIGHT
MASTER AUDIO XLR output on the KJM-8000 PRO and the
CH. A ¼” audio input on the VP-600 PRO.
CDG(1)
DVD(2)
LD(3)
STEREO MONO BRIDGE
INPUTS
CH. B CH. A
BALANCED
BRIDGED
OUTPUTS
MODEL VP-600 PRO
STEREO 300W
PER CHANNEL INTO 4 OHM
600W MONO
BRIDGED INTO
8 OHM
CH. A MONO CH. B
VP-600 PRO Amplifier
KJM-8000 PRO Mixer
Using two XLR(f) to XLR(m) (Fig.1)
1. Connect the XLR(f) end to the LEFT MASTER AUDIO
XLR output on the KJM-8000 PRO and the XLR (m) end
to the left XLR audio input on the VP-600 PRO.
2. Now do the same thing except now go from the RIGHT
MASTER AUDIO XLR output on the KJM-8000 PRO and
the right XLR audio input on the VP-600 PRO
