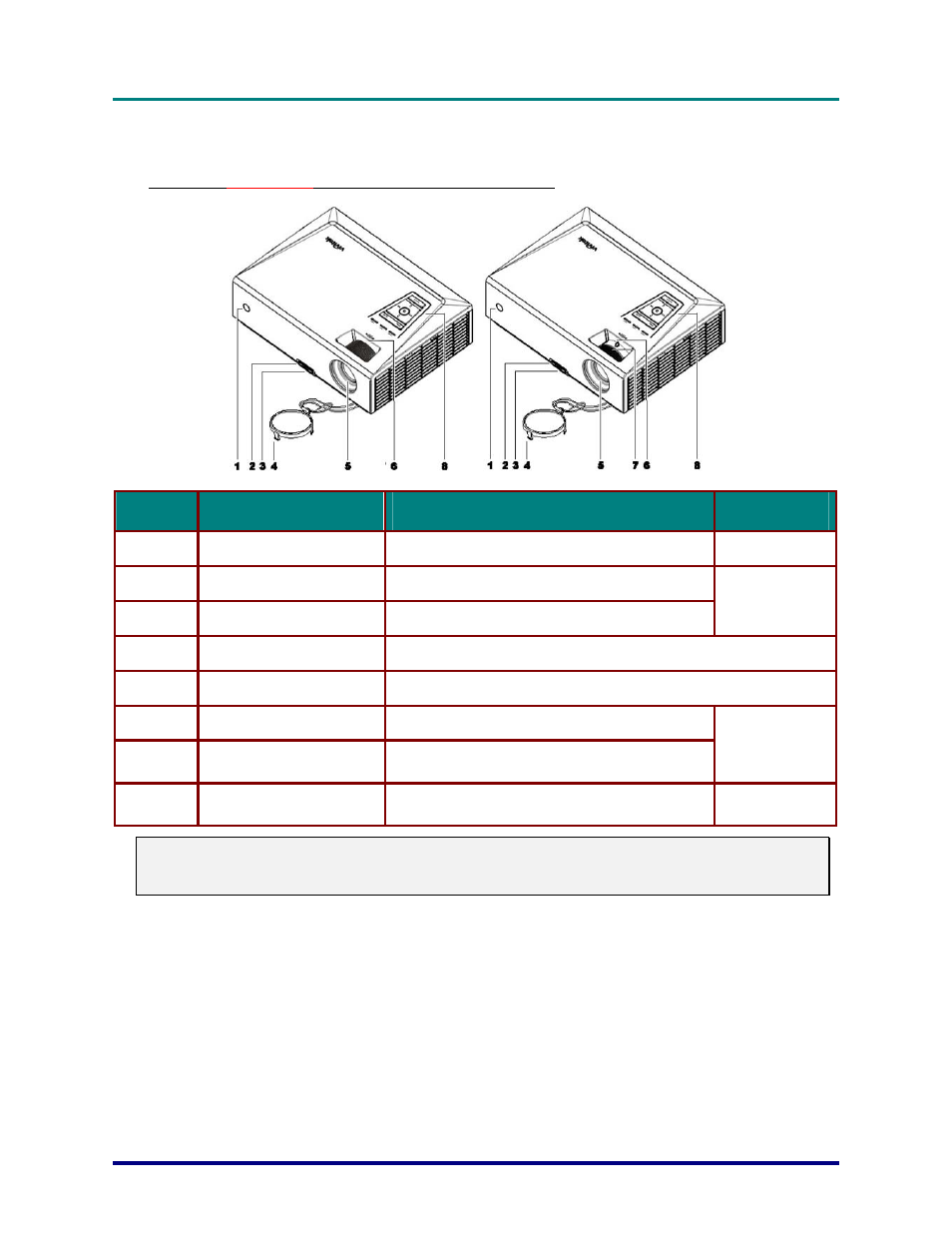

Views of Projector Parts
D825MS
/ D820MS
/ D825MX Front-right View
I
TEM
L
ABEL
D
ESCRIPTION
S
EE PAGE
:
1.
IR receiver
Receive IR signal from remote control
6
2.
Height-adjuster button
Push to release height adjuster
3.
Height adjuster
Adjusts level of projector
15
4.
Lens cap
Protect lens when not in use
5.
Lens Projection
Lens
6.
Focus ring
Focuses the projected image
7.
Zoom ring
(
D820MS/
D825MX only)
Enlarges the projected image
16
8.
Function keys
See Top view—On-screen Display (OSD) buttons
and LEDs.
3
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
