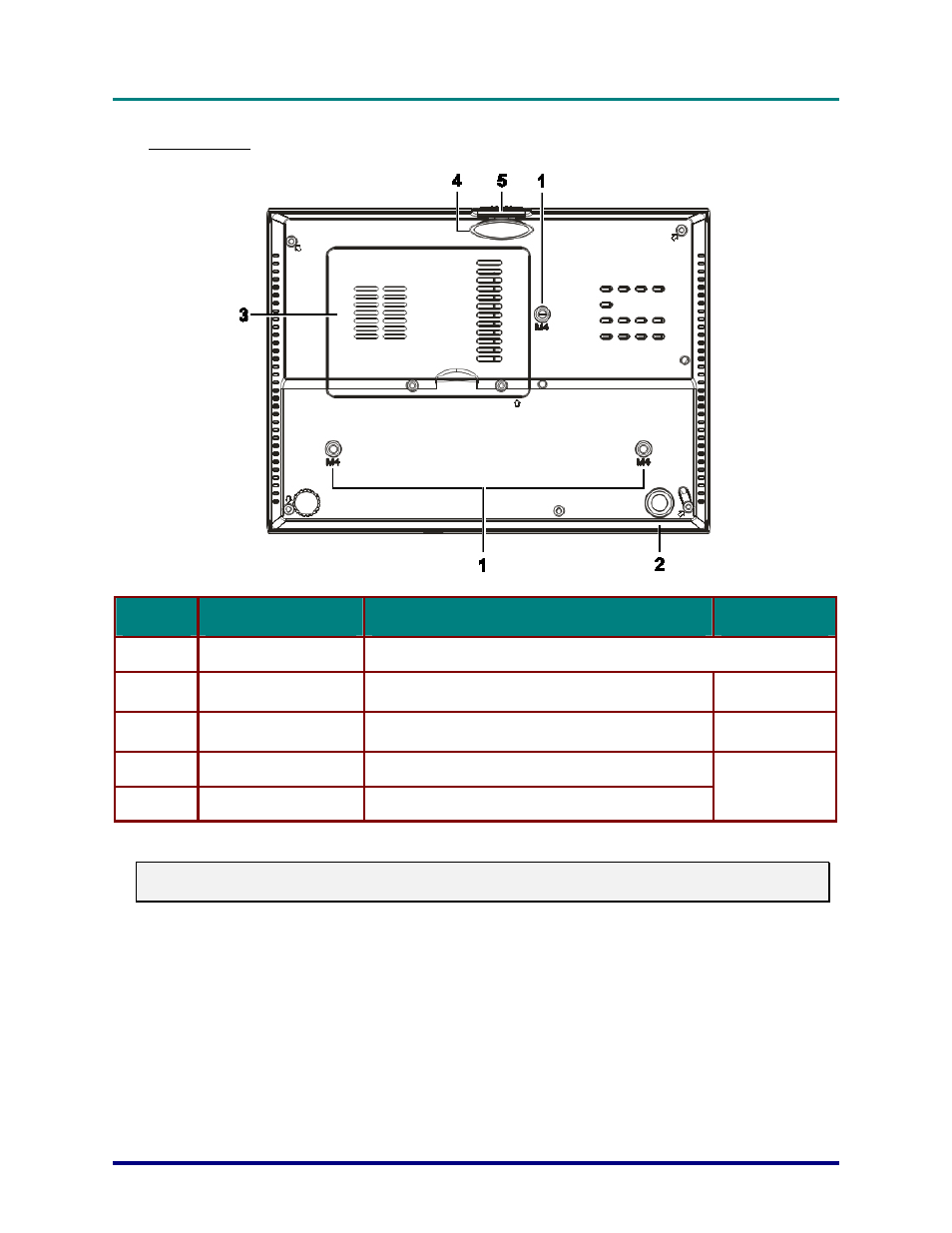

Bottom view
I
TEM
L
ABEL
D
ESCRIPTION
S
EE PAGE
:
1.
Ceiling support holes
Contact your dealer for information on mounting the projector on a ceiling
2.
Tilt adjustor
Rotate adjuster lever to adjust angle position.
15
3.
Lamp cover
Remove when changing the lamp.
34
4.
Height adjustor
Adjuster drops down when adjuster button is pushed.
5.
Height adjustor button
Push to release adjustor.
15
Note:
When installing, ensure that you use only UL Listed ceiling mounts.
