DLP Projector – User’s Manual
– 5 –

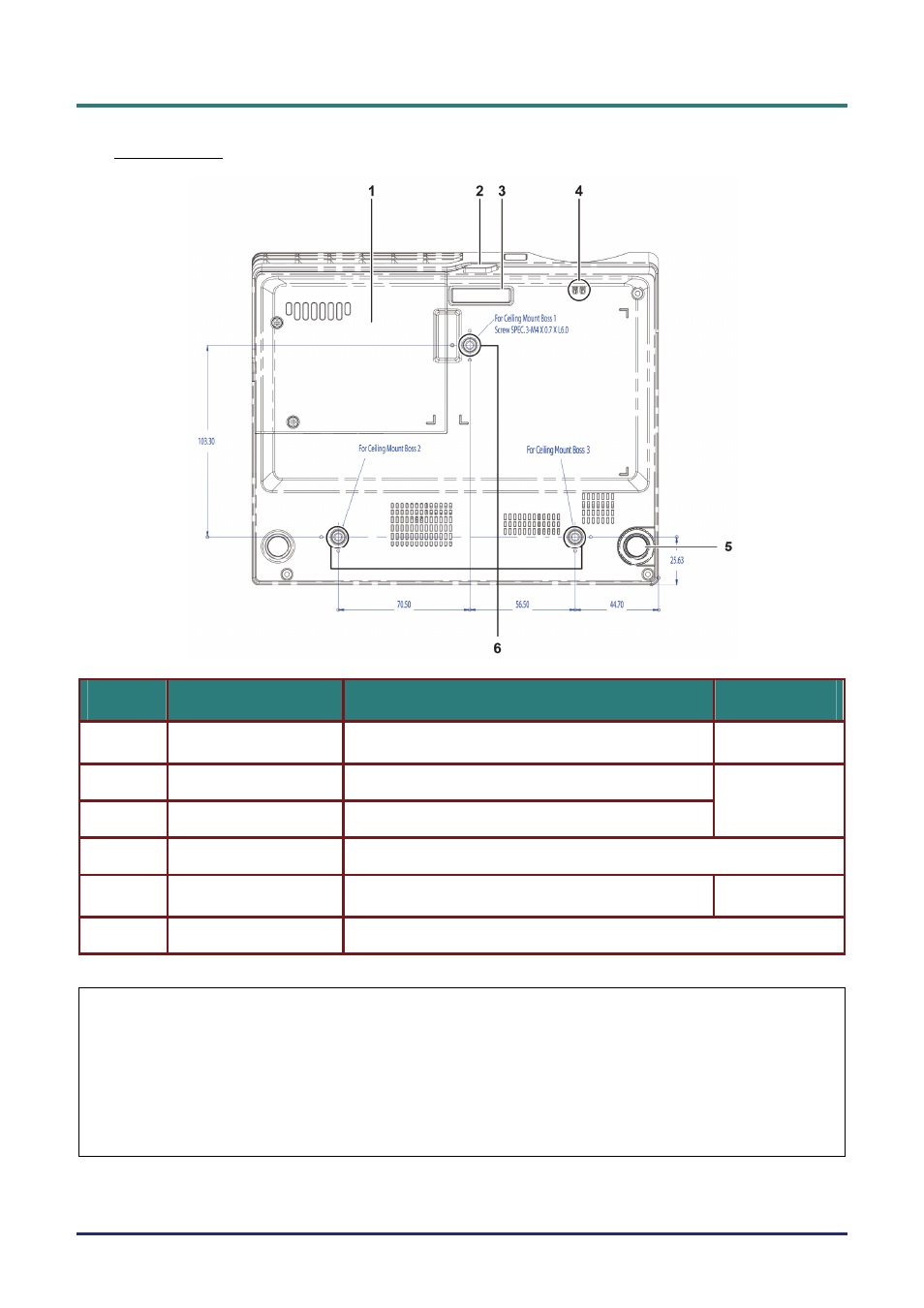

Bottom view
I
TEM
L
ABEL
D
ESCRIPTION
S
EE PAGE
:
1.
Lamp cover
Remove when changing the lamp.
2.
Height adjustor button
Push to release adjustor.
3.
Height adjustor
Adjuster drops down when adjuster button is pushed.
4.
Lens cap hook
To fasten the lens cap cover.
5.
Tilt adjustor
Rotate adjuster lever to adjust angle position.
6.
Ceiling support holes
Contact your dealer for information on mounting the projector on a ceiling.
Note:
When installing, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 6 mm (0.23 inch).
The construction of the ceiling mount must be of a suitable shape and strength. The ceiling
mount load capacity must exceed the weight of the installed equipment, and as an additional pre-
caution be capable of withstanding three times the weight of the equipment (not less than 5.15 kg)
over a period of 60 seconds.
