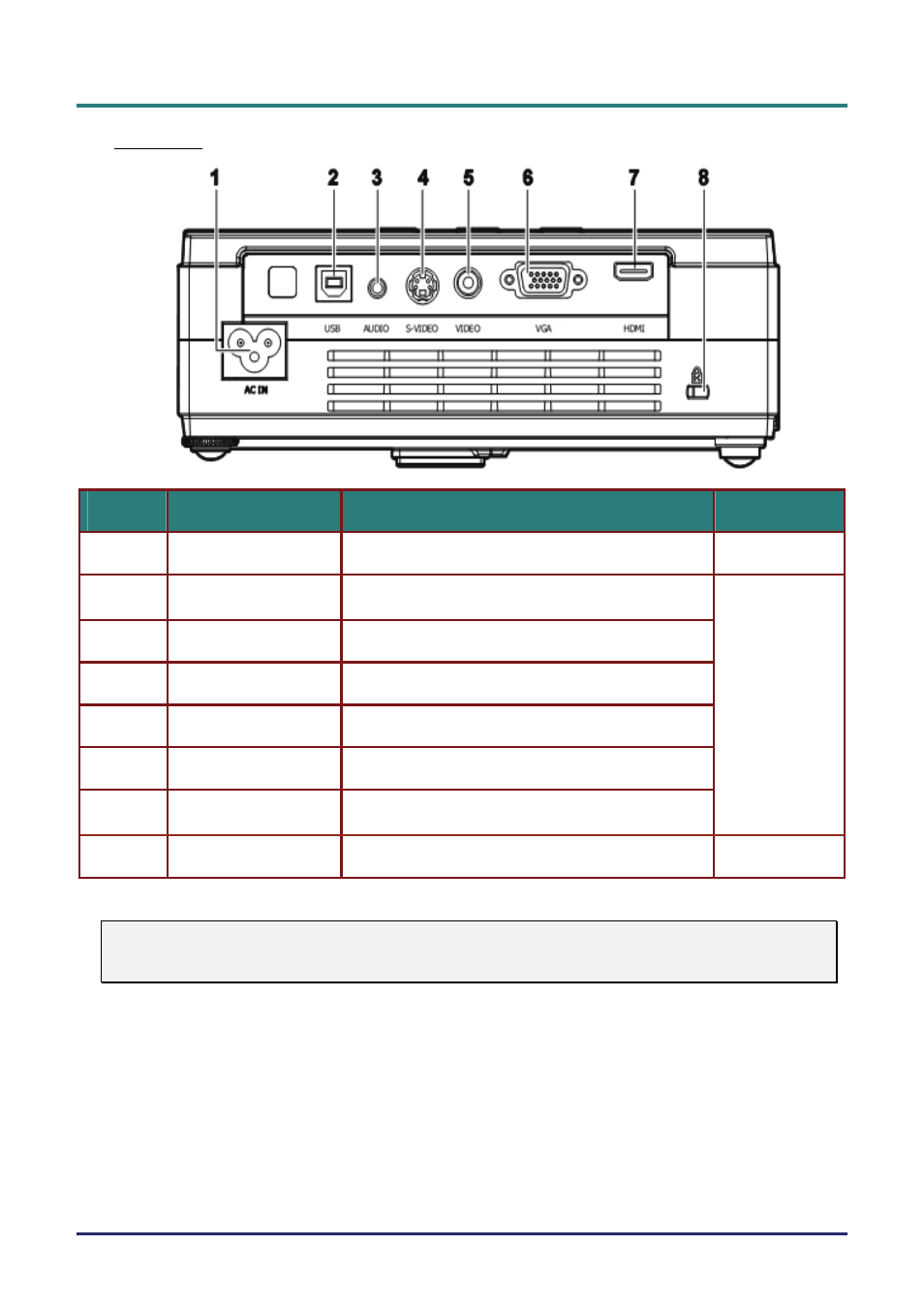

Rear view
I
TEM
L
ABEL
D
ESCRIPTION
S
EE PAGE
:
1.
AC IN
Connect the POWER CABLE
Connect the USB CABLE from a computer (Service
Only)
2.
USB (Service Only)
3.
AUDIO
Connect the AUDIO CABLE from the input device
4.
S-VIDEO
Connect the S-VIDEO CABLE from a video device
– 4 –
5.
VIDEO
Connect the VIDEO CABLE from a video device
6.
VGA
Connect the RGB cable (supplied) from a computer
Connect the HDMI
TM
digital video CABLE from a video
device
7.
HDMI
TM
8.
Security Lock
Secure to permanent object with a Kensington® Lock
Note:
If your video equipment has both S-VIDEO and RCA jacks (composite video) connect to the
S-VIDEO connector. S-VIDEO provides a better quality signal.
