Connecting an external Receiver/Amp
2.7.1
Optical Output of Audio received with HD
Programs

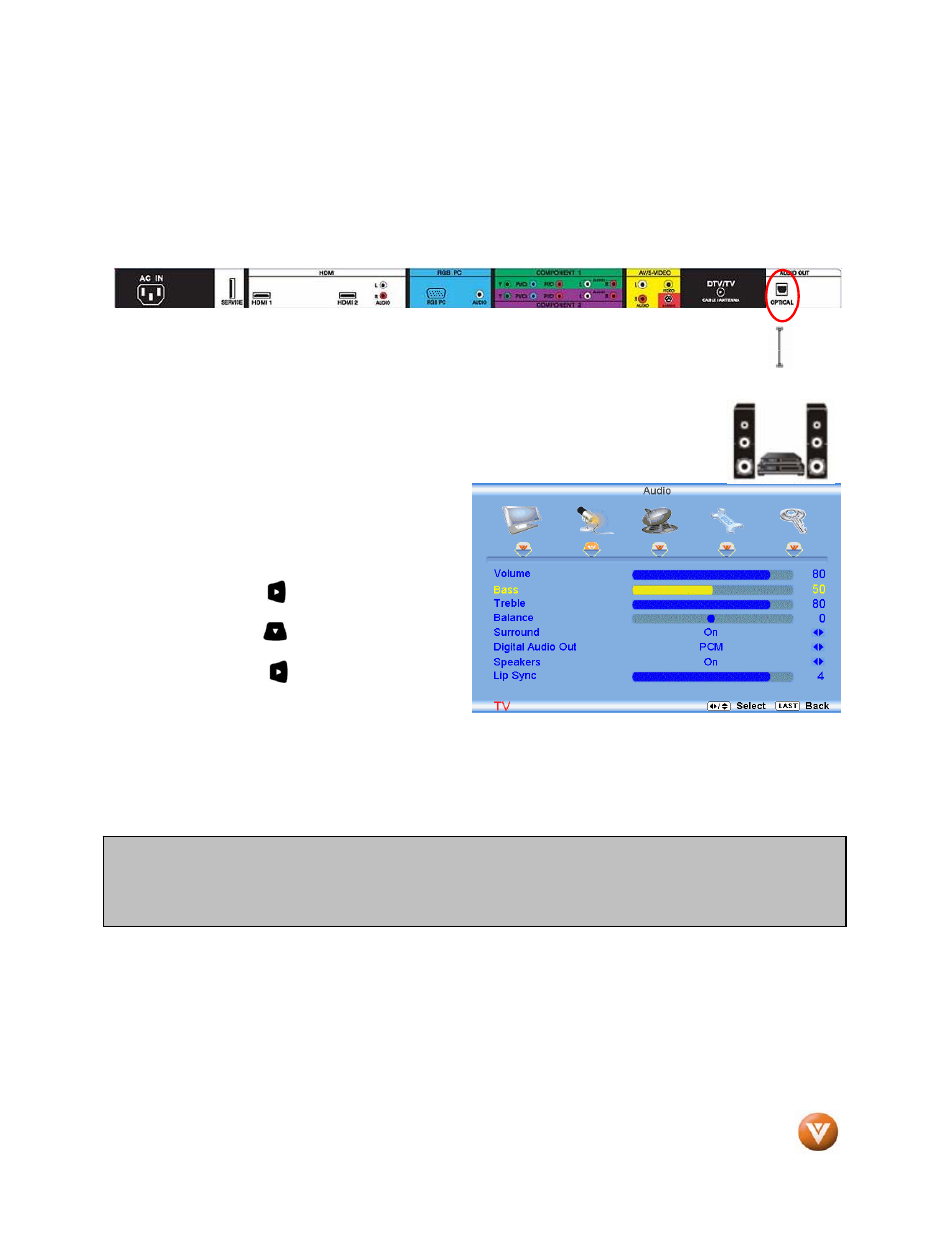

If your sound system has a SPDIF (optical) digital audio input you can connect it to the optical DIGITAL
AUDIO OUT (white area) at the rear of the LCD HDTV. This is active when receiving digital audio with
the program being viewed no matter what input (TV, AV, Component or HDMI) is being used.
1. Turn off the power to the LCD HDTV and Receiver/Amp.
2. Using an audio cable (optical cable), connect the cable to the audio input
connector on the Receiver/Amp and connect the other end to the OPTICAL
OUT (white area) audio connector at the rear of the LCD HDTV.
3. Turn on the power to the LCD HDTV
and Receiver/Amp.
4. Then press the MENU button on the
remote control to open the On-Screen
Display (OSD) menu.
5. Press the on the remote control to
select the Audio menu.
6. Press the on the remote control to
select SPEAKERS.
7. Press the on the remote control to
select OFF so that the sound from the
LCD HDTV will now be routed
through your Receiver/Amp system.
Press the LAST key once to return to the previous screen or repeatedly to return to your program if task
has been completed.
Note:
a) Refer to your Receiver/Amp user manual to select the corresponding audio input.
b) The audio output can not be connected directly to external speakers.
