Page 32: Pre l iminar y
22
Vidikron VL-40 and VL-46 Owner’s Operating Manual
PRE
L
IMINAR
Y
Connecting to a Dolby Digital
Amplifier
If your home theater has a Dolby Digital amplifier or receiver, connect the digital audio
output from the DView to the digital audio input of the amplifier/receiver as shown in Figure
3-10. The DView supports both coaxial (S/PDIF) and optical (TosLink) digital audio
connections.

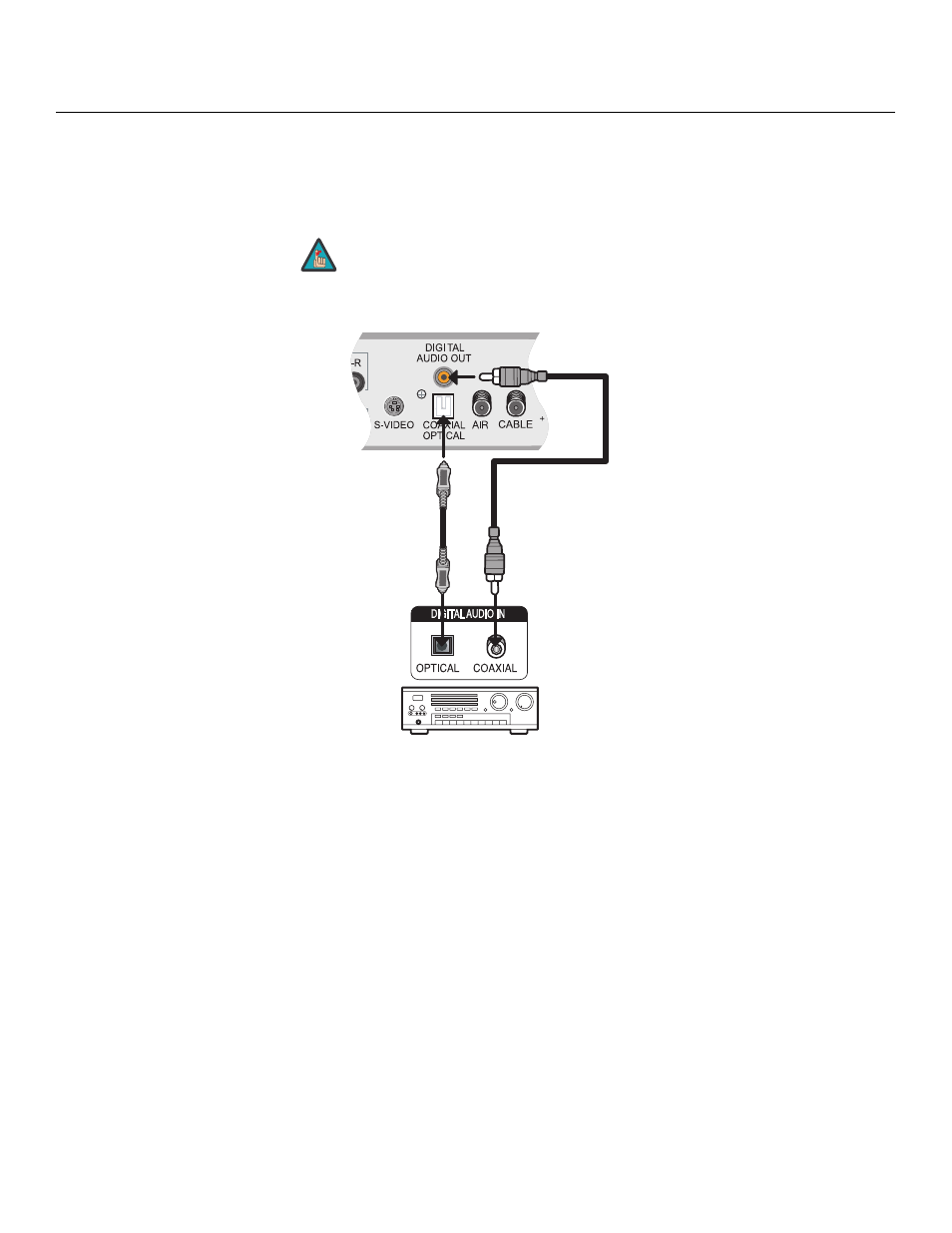

Figure 3-10. Digital Audio Connection
➤
The audio output level is fixed. (The volume and mute controls affect only
the speaker and headphone outputs.)
Note
Digital Audio Cable,
Optical
(Sold Separately)
Digital Audio Cable,
Coaxial
(Sold Separately)
Dolby Digital
Amplifier
- or -
