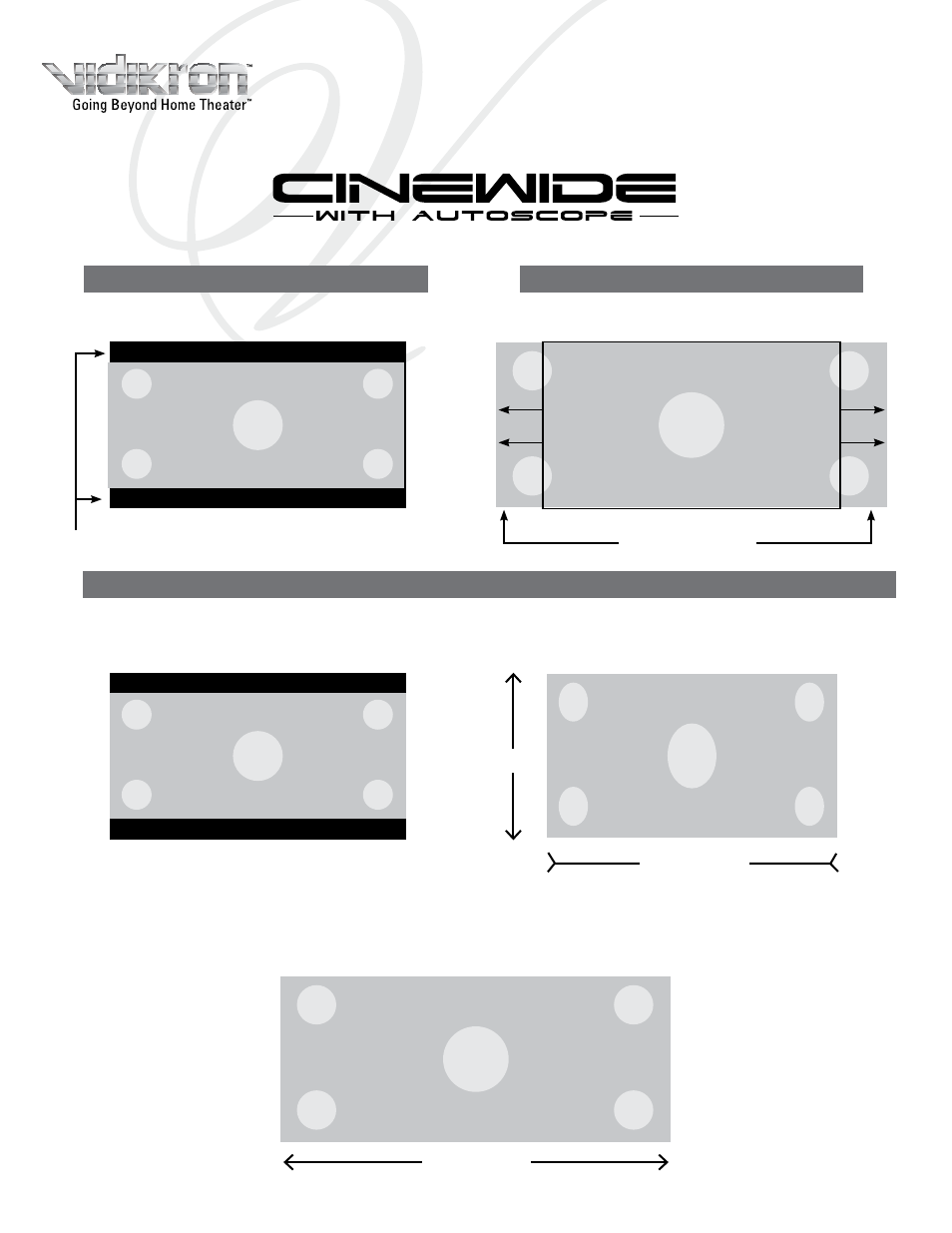

IMAGE AREA
Conventional 2.35:1 image displayed
on a 1.78:1 (16:9) screen.
16:9 IMAGE AREA
Constant Vertical height and full resolution
maintained. 100% of pixels are used.
Black stripes = lost resolution
CineWide™ with AutoScope™ Conventional Method
2:35:1 image area
How it works:
Video processor anamorphically “squeezes” the 2.35:1 image to fill a 16:9 or
4:3 display device image area. This allows all pixels to be used.
2.35:1 Image 16:9 or 4:3 Image Area
FILL
SQUEEZE
Anamorphic lens then “stretches” the image back to 2.35:1. Correct geometry is restored,
while 100% of the pixels are now used to maintain full resolution.
™
STRETCH
