6

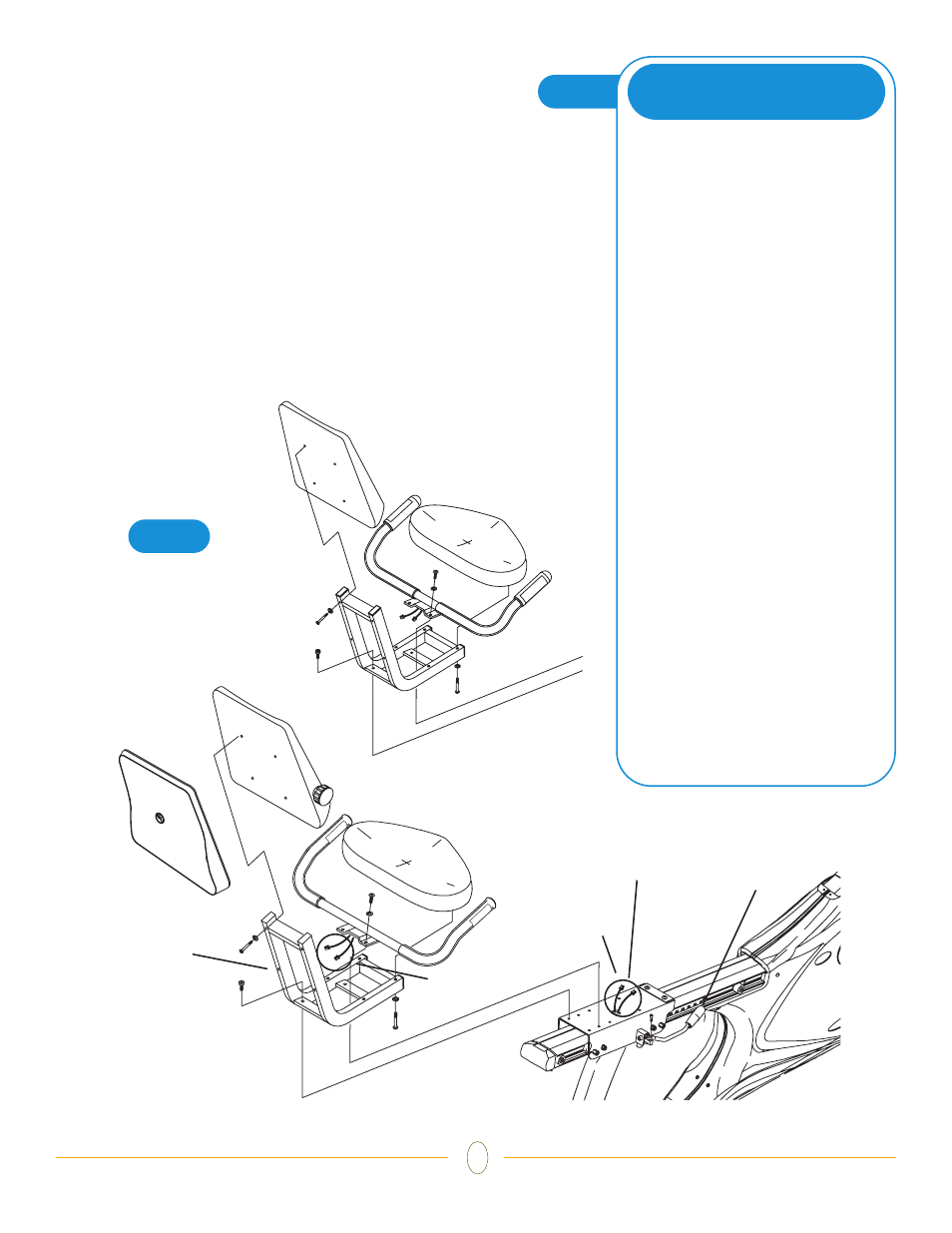

Seat Frame
B
A
Seat Bracket
R2200HRT
Seat Lever
R2200
2
STEP
2
STEP
• Place the seat bracket on the seat
frame. Secure in place with four
(M8x20) socket-head cap screws.
Tighten with the 6mm L-shaped wrench.
• Remove the socket-head cap screw in
front of the seat lever, located on the
right side of the seat frame, with the
4mm L-shaped wrench. Line-up the seat
lever into position on the bracket.
Reinsert the socket-head cap screw and
tighten with the 4mm L-shaped wrench.
• Take the seat frame handlebar and
connect the heart rate wires (A) exiting
its center to the heart rate wires (B) com-
ing from the seat frame.
• Mount the seat handlebars to the seat
frame with four screws (M8x15L) and
four lock washers (M8). Tighten with the
5mm allen wrench.
• Mount the seat backrest cushion to
the seat frame with four screws
(M6x55L) and four lock washers (M6).
Tighten with the 4mm L-shaped wrench.
• Mount the seat bottom cushion to the
seat frame with four screws (M6x55L)
and four lock washers (M6). Tighten
with the 4mm L-shaped wrench.
R2200HRT ONLY: Snap the plastic
cover onto the rear of the seat back.
BLUE BAG
