- 1 -
1. Condensing Unit
• Place the condensing units WM250-850SCU in a
properly ventilated location. If it is not, heat exhausted
by the condensing unit will build up and the cooling
system will not operate properly.
• Condensing unit shall be elevated to avoid possible
flooding and shaded from direct sun. It shall not be exposed to
temperatures higher than 110
° F or lower than 50 ° F (optional low ambient
kit available).
• Leave minimum 5 feet clearance for the exhaust side and leave minimum
1 foot clearance for the fresh air intake side.
CAUTION:
IF THE UNIT IS EQUIPPED WITH A LOW AMBIENT CONDITION KIT, DO NOT
SWITCH ON THE COMPRESSOR UNTIL THE UNIT HAS BEEN PLUGGED IN
FOR 24 HOURS.

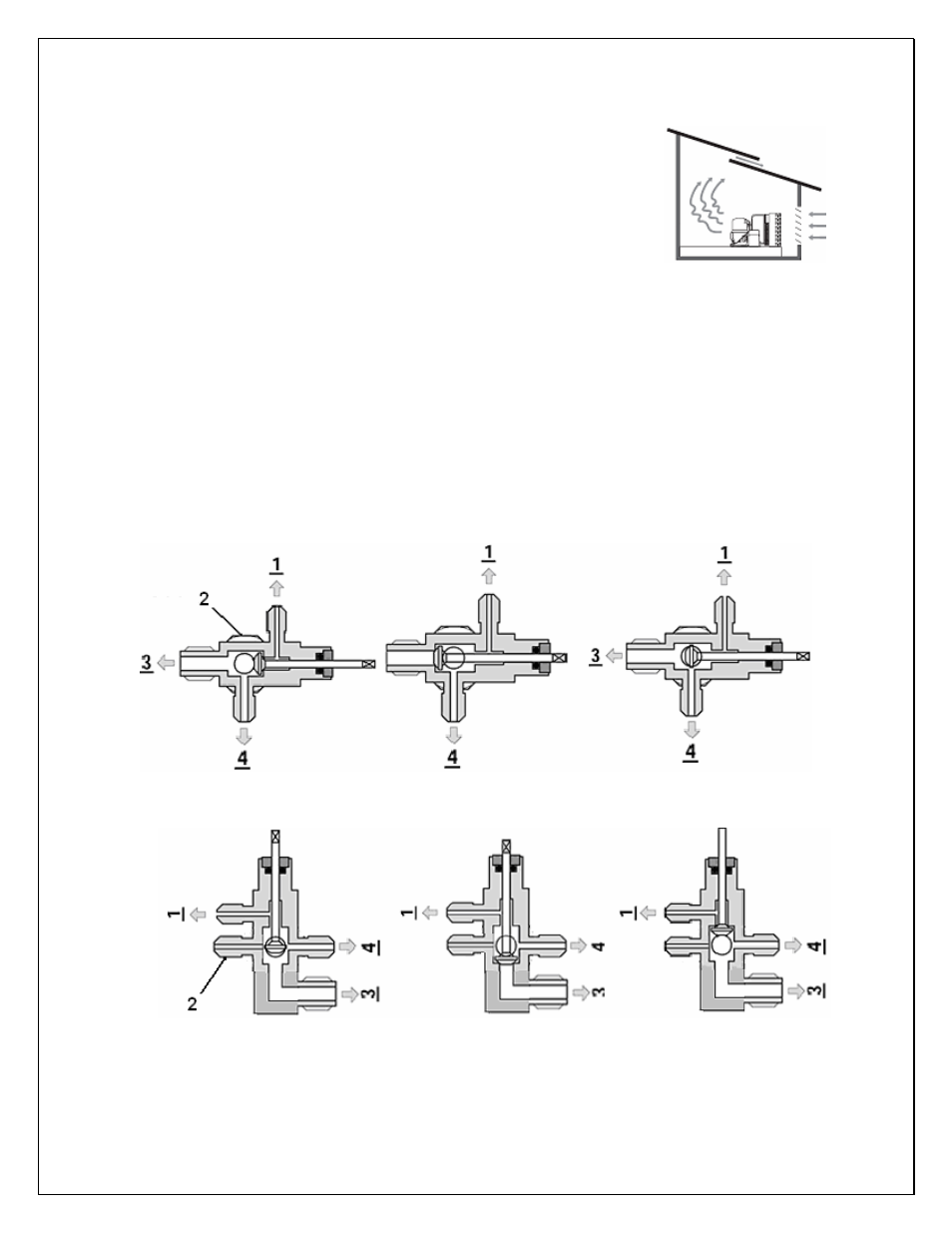

2. Valve Operation (Condensing unit)
BACK POSITION FRONT POSITION MIDDLE POSITION
Fig. 5 ROTALOCK Valve Operation
BACK POSITION FRONT POSITION MIDDLE POSITION
Fig. 6 Base Valve Operation
1 - Process & Manometer; 2 - Receiver/Compressor Suction
3 - Liquid/Suction Line; 4 - Pressure Control
