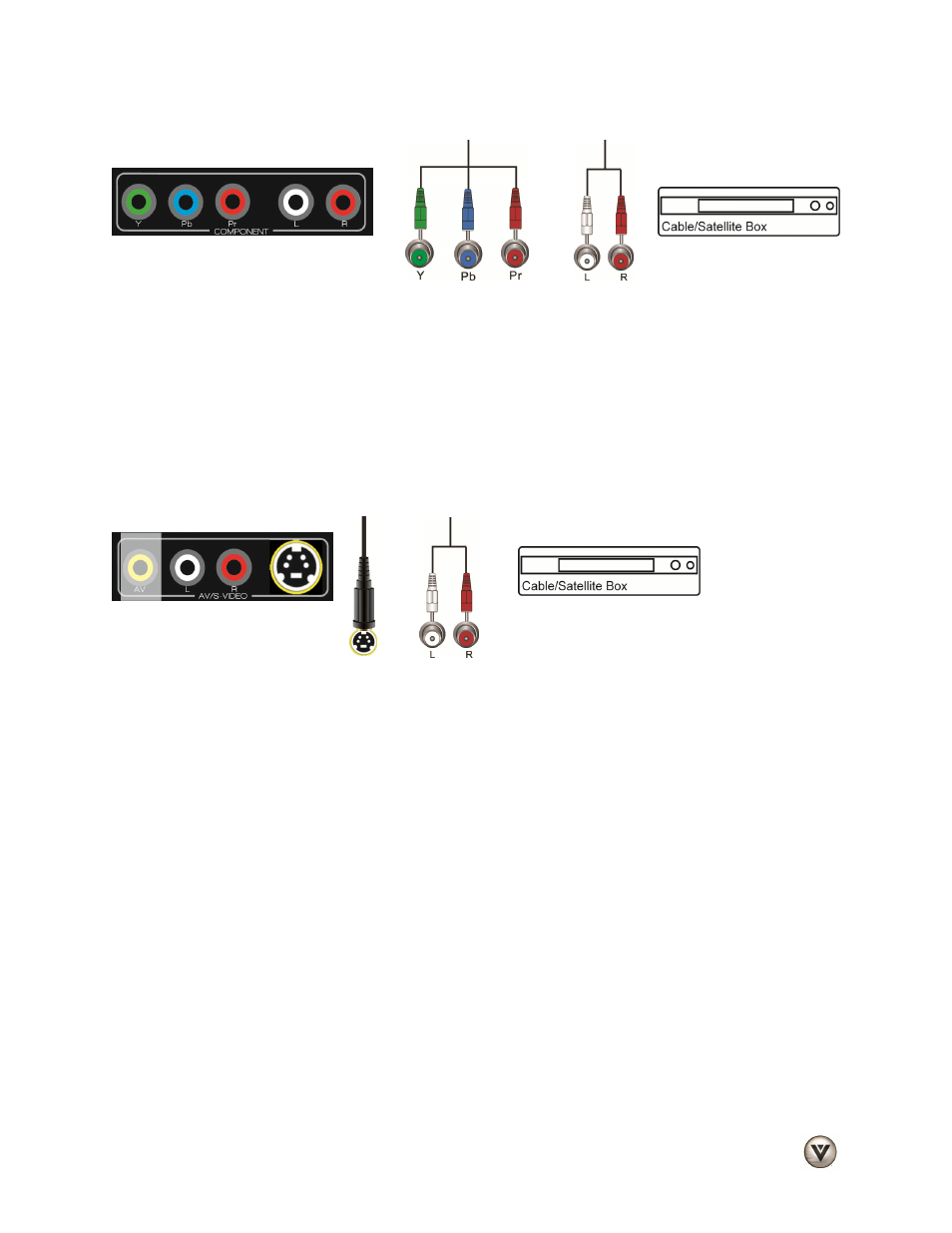

Using Component Video (Better)
1.
Turn off your HDTV and cable/satellite box.
2.
Connect the component cables (green, blue, and red) from your cable/satellite box to the
COMPONENT jacks on your HDTV.
T
3.
Connect the audio cables (white and red) from your cable/satellite box to the COMPONENT
T
L and R Audio jacks on your HDTV.
4.
Turn on your HDTV and cable/satellite box.
5.
Select Comp using the INPUT button on the remote control, or directly by pressing the
COMP button on the remote control.
Using S-Video (Better)
1. Turn off your HDTV and cable/satellite box.
2. Connect the S-VIDEO cable from your cable/satellite box to the S-VIDEO jack on your HDTV.
3. Connect the audio cables (white and red) on your cable/satellite box to the corresponding L and
R AUDIO jacks on your HDTV.
4. Turn on your HDTV and cable/satellite box.
5. Select AV using the INPUT button on the remote control, or directly by pressing the AV button on
the remote control.
