DLP Projector—User’s Manual
– 10 –

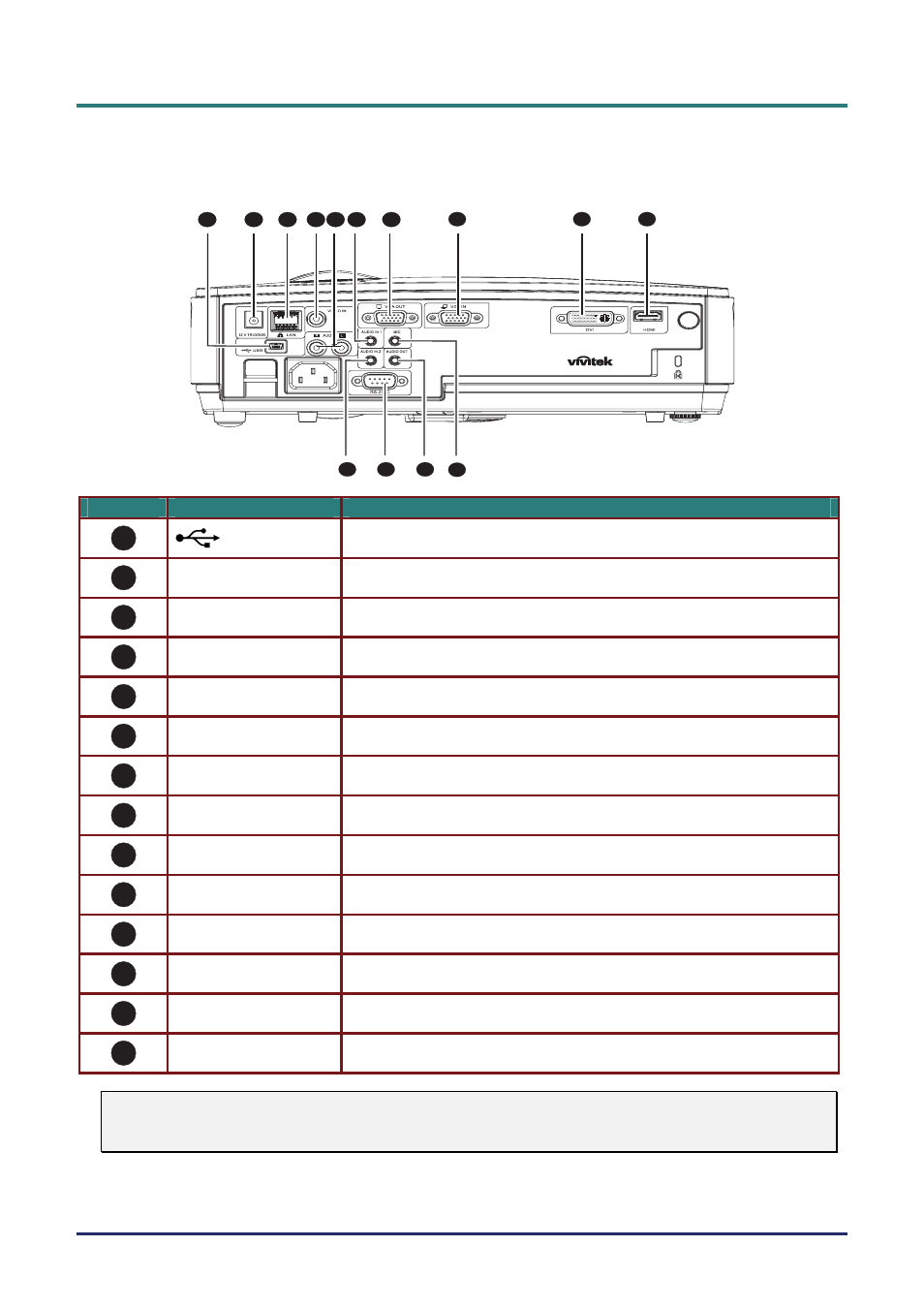

Connecting Input Devices
A PC or notebook computer and video devices can be connected to the projector at the same time. Video
devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras.
Check the user manual of the connecting device to confirm it has the appropriate output connector.
A B C D E F G H I J
K L N M
I TEM L ABEL D ESCRIPTION
A
(USB) Connect the USB CABLE from a computer
B
12V TRIGGER Connect the DC 12V OUT
C
LAN Connect a LAN CABLE from Ethernet
D
VIDEO IN Connect the COMPOSITE CABLE from a video device
E
AUDIO IN (L and R) Connect the AUDIO CABLES from a audio device
F
AUDIO IN -1 Connect an AUDIO CABLE from the input device
G
VGA OUT Connect the RGB CABLE to a display (Loop Thru only for VGA IN-1)
H
VGA IN Connect the RGB CABLE from a computer and components
I
DVI Connect the DVI CABLE to a display
J
HDMI TM Connect the HDMI TM CABLE from a HDMI TM device
K
AUDIO IN -2 Connect an AUDIO CABLE from the input device
L
RS-232C Connect the RS-232 serial cable for remote control
M
AUDIO OUT Connect an AUDIO CABLE for audio loop through
N
MIC Connect the Microphone input device
Warning:
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
