DLP Projector—User’s Manual
– 4 –

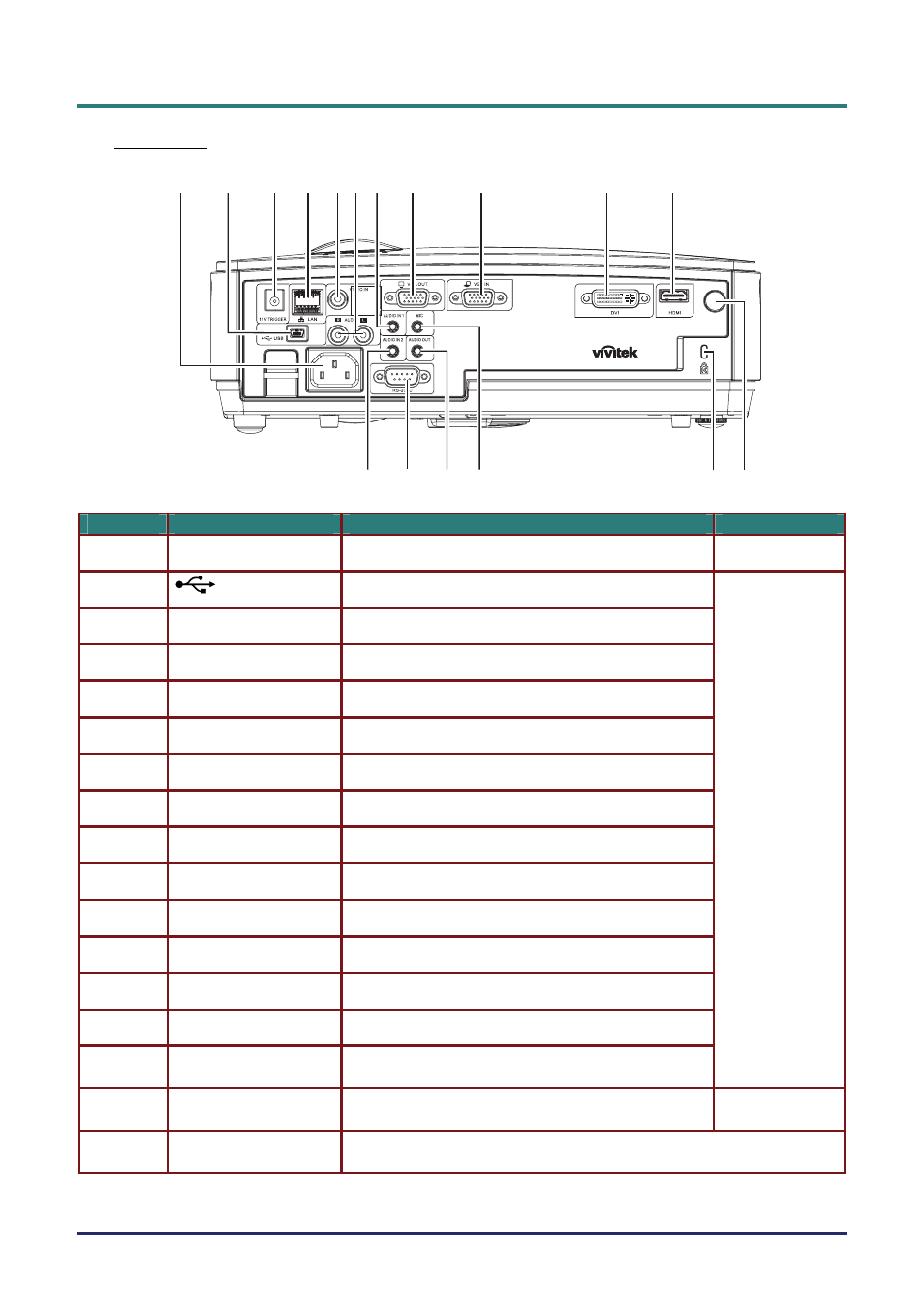

Rear view
1
2
3 4 5 6 7 8
9
10
11
12 13 14 15
16 17
I
TEM
L
ABEL
D
ESCRIPTION
S
EE PAGE
:
1.
AC IN
Connect the POWER CABLE
2.
(USB)
Connect the USB CABLE from a computer
3.
12V TRIGGER
Connect the DC 12V OUT
4.
LAN
Connect a LAN CABLE from Ethernet
5.
VIDEO IN
Connect the COMPOSITE CABLE from a video device
6.
AUDIO IN (L and R)
Connect the AUDIO CABLES from a audio device
7.
AUDIO IN – 1
Connect an AUDIO CABLE from the input device
8.
VGA OUT
Connect the RGB CABLE to a display
9.
VGA IN
Connect the RGB CABLE from a computer and components
10.
DVI
Connect the DVI CABLE to a display
11.
HDMI
TM
Connect the HDMI
TM
CABLE from a HDMI
TM
device
12.
AUDIO IN – 2
Connect an AUDIO CABLE from the input device
13.
RS-232C
Connect RS-232 serial port cable for remote control
14.
AUDIO OUT
Connect an AUDIO CABLE for audio loop through
15.
MIC
Connect the Microphone input device
16.
Kensington Lock
Secure to permanent object with a Kensington® Lock system
17.
IR receiver
Receive IR signal from remote control
