Viking DDRB304 - Manual (Page 5)

REFRIGERATION
Built-In 30”W. All Refrigerator
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E L E A S E D 1 2 / 1 / 0 7
© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE
Door
Wall
1”
(2.5 cm)
if 25” (63.5 cm)
cabinet depth is used
3/4”
(1.9 cm)
full end panel
25”
(63.5 cm)
Flush
Door
24”
(61.0 cm)
standard
cabinet depth
25”
(63.5 cm)
countertop
depth
Wall
3/4”
(1.9 cm)
full end panel
1”
(2.5 cm)
if 25” (63.5 cm)
cabinet depth is used
Flush
Dimensions & Specifications

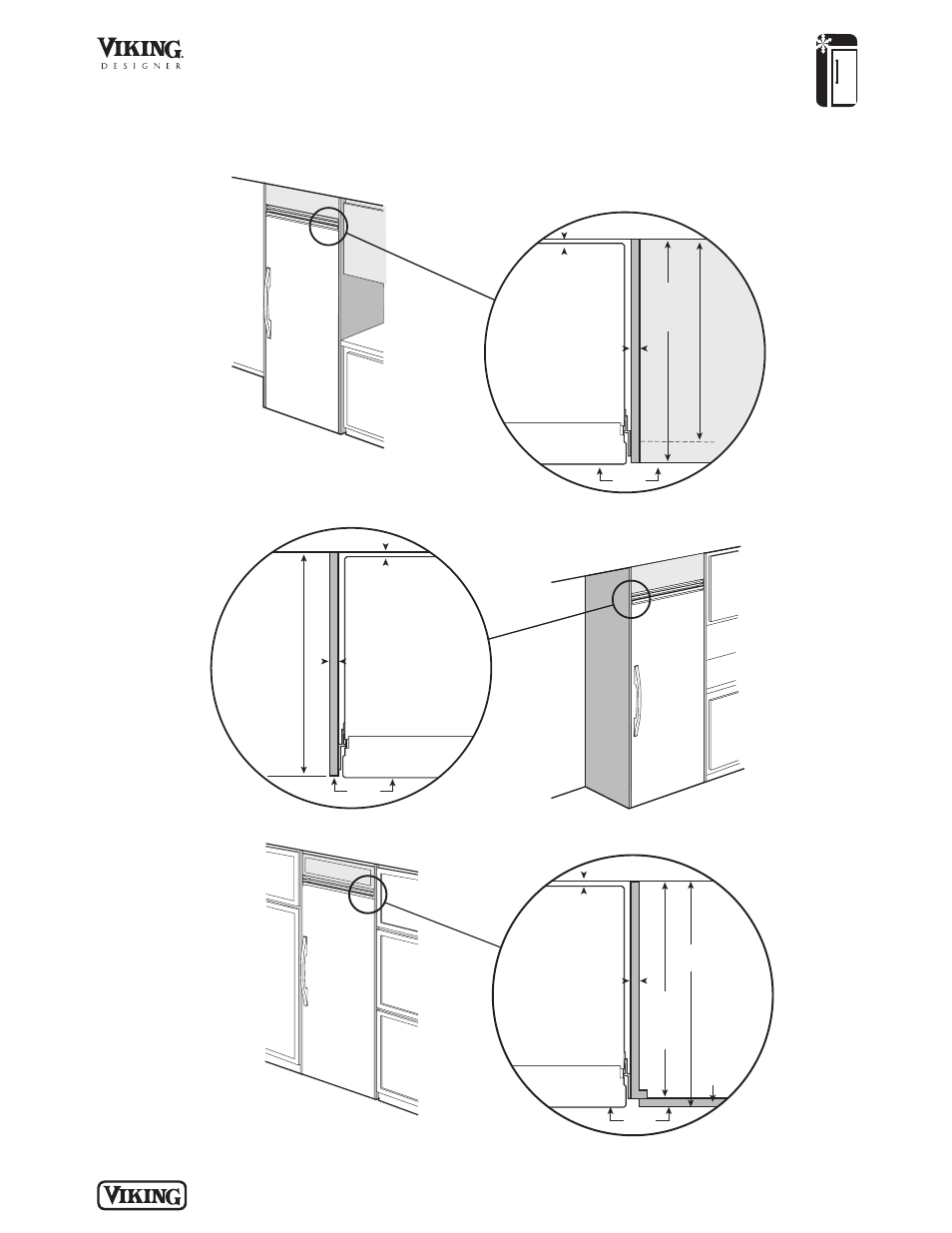

CLEARANCE DIMENSIONS—DESIGNER
Door
24”
(61.0 cm)
standard
cabinet
depth
24-3/4”
(62.9 cm)
Wall
3/4”
(1.9 cm)
full end panel
1”
(2.5 cm)
if 25” (63.5 cm)
cabinet depthis used
Flush
Cabinet
door
TOP VIEW
TOP VIEW
TOP VIEW
Overlapping cabinet doors
