Front Panel
Front Panel
Front Panel
Front Panel

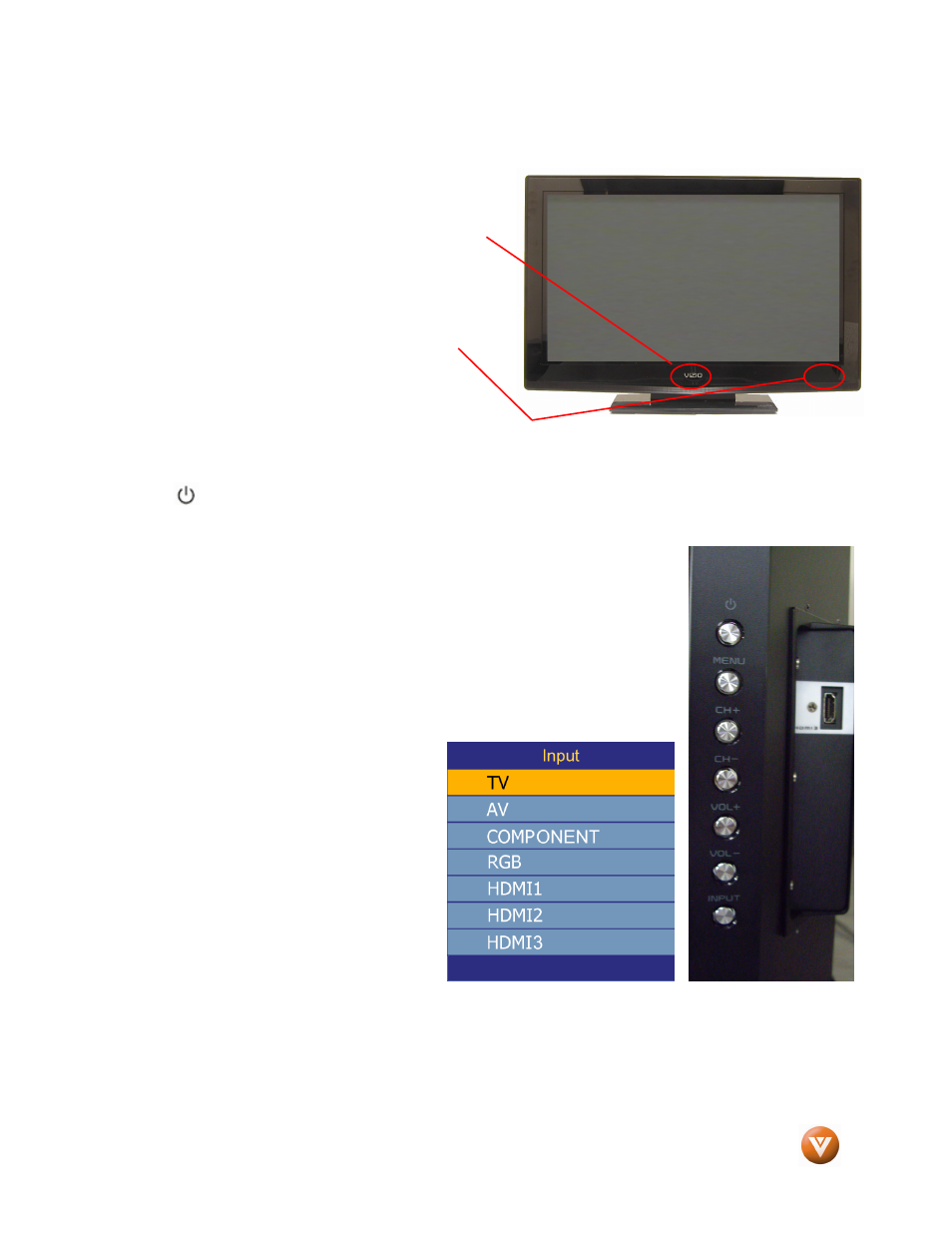

POWER ‘VIZIO’ LIGHT– The VIZIO name lights white
when powered on and orange when powered off.
REMOTE CONTROL SENSOR – This is the window
through which all of the remote control signals pass to
the sensor. Point the remote control directly at this
window for the best response to the remote signal.
1.2
1.2
1.2
1.2
Right
Side
Panel
Right
Side
Panel
Right
Side
Panel
Right
Side
Panel
Controls
Controls
Controls
Controls
Power (
) – Switch the VP422 HDTV10A on by pressing the button once. Press the button again to
turn the VP422 HDTV10A off.
Menu – This button activates the On Screen Display (OSD). If a sub-menu is
active, pressing this button will return to the previous menu level.
Channel +/- – Use these buttons to step up or down the TV channels. While the
OSD is active, these buttons function as up and down controls in the OSD menus.
Volume +/- – Use these buttons to increase or decrease to the speaker volume.
While the OSD is active, these buttons function as left and right controls in the
OSD menus.
Input – Repeated pressing of this buttons steps through the input sources in the
following sequence: TV, AV (S-VIDEO), Component, RGB, HDMI1, HDMI2 and
HDMI3. Once you have stepped through the entire sequence, you will return to
the beginning.
