4
17
1. IR Sensor – Allows the remote to
navigate the OSD (On Screen
Display) on this unit and to control
other functions and accessories.
2. Infrared Transmitters – Used to
transmit audio to the wireless head-
phone.
3. POWER LED – integrated into
“Power” button.
4. POWER – Soft-power on/off.
5. SOURCE – Selects the AV source
from optional ThinDVD/Auxillary
Source/Rear-mounted Auxillary
Input jack.
6. REAR-MOUNTED RCA INPUT
JACK
7. REAR-MOUNTED HEADPHONE
JACK
1
2
3
4
5
6
7

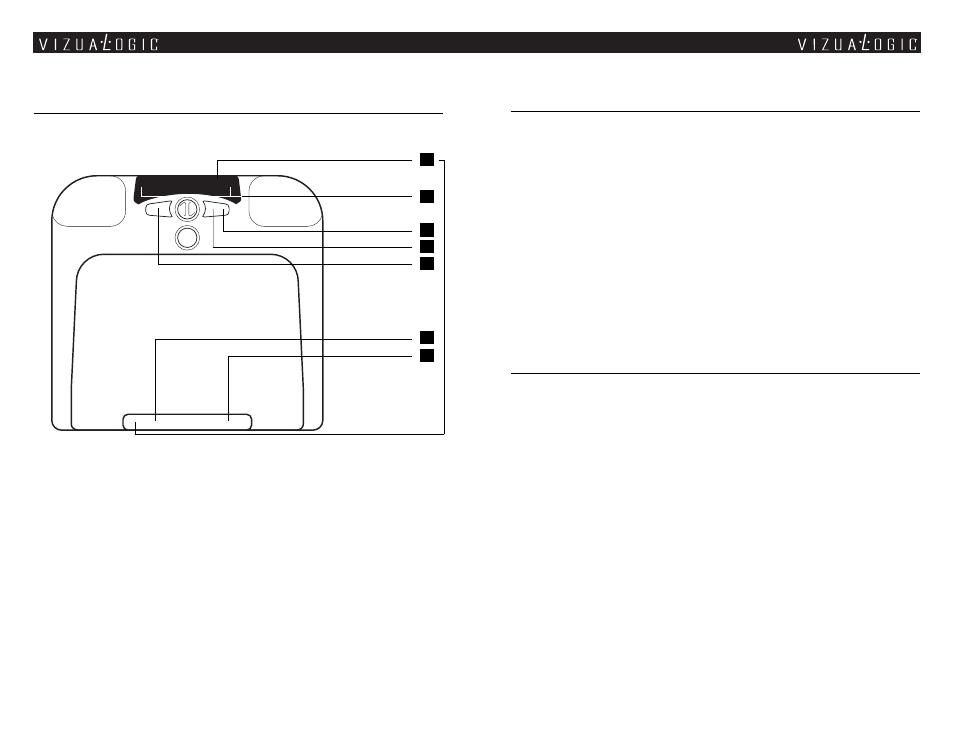

Overhead Monitor Control Buttons
Quantum™ Series
Video System
Specifications
Troubleshooting
No Picture
(1) Verify that the correct video input mode is used on the monitor.
(2) Verify that the video cables are securely connected.
No Sound
(1) Verify that the correct audio input mode is used on the monitor.
(2) Verify that the audio cables are securely connected.
IR Sensor Inoperative
(1) Verify that the batteries in the remote are installed correctly and in good
condition.
(2) Verify that the remote sensor eye is not obstructed.
Display Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . .LCD
Screen Size . . . . . . . . . . . . . . . . . . . . .7.0˝ (Diagonal)
Resolution . . . . . . . . . . . . . . . . . . .1440(w) x 234(h)
Brightness . . . . . . . . . . . . . . . . . . . . . . . .400 nit max
Video Display System . . . . . . . . . . . . . . . .NTSC/PAL
Horizontal View Angle . . . . . . . . . . . . . . . . . .+/- 60°
Vertical View Angle . . . . . . . . . . . . . . . . .+60° / -50°
Operating Temperature . . . . . . . . . . . . . . .-10-70° C
Expected Backlight Life . . . . . . . . . . . . .20,000 hours
Operating Voltage . . . . . . . . . . . . . . . . .10 to 16V DC
. . . . . . . . . . . . . . . . .LCD
. . . . . . .10.2˝ (Diagonal)
. . . . .2400(w) x 480(h)
. . . . . . . . . .400 nit max
. . . . . . . . . . . .NTSC/PAL
. . . . . . . . . . . . . .+/- 60°
. . . . . . . . . . .+60° / -50°
. . . . . . . . . . . .-10-70° C
. . . . . . . . .20,000 hours
. . . . . . . . .10 to 16V DC
7”
10.2”
