ViewSonic N1630w 15
ENGLISH
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
Getting Started

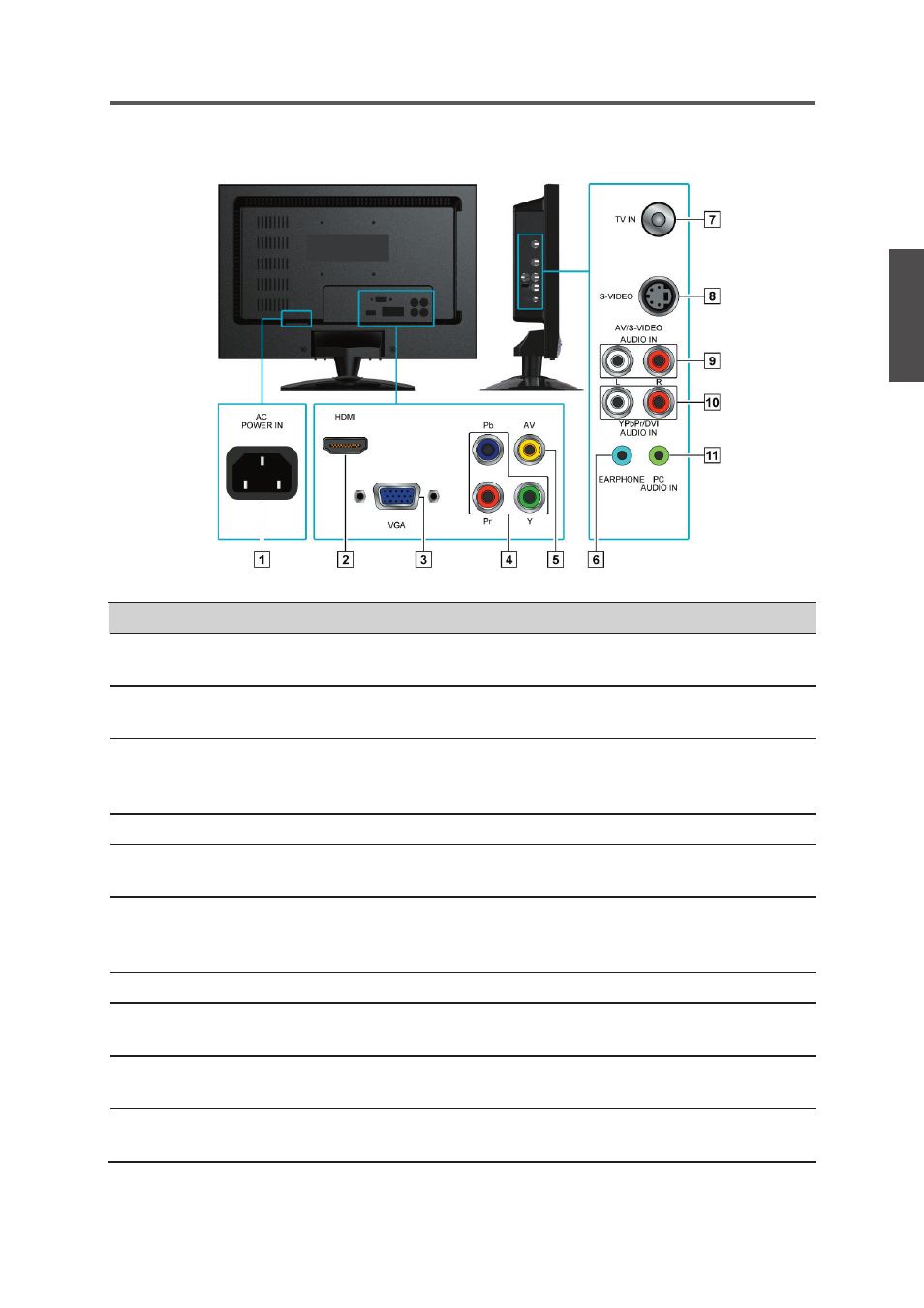

Rear View of the Product
Item Description
1 Power (AC input) Plug-in the supplied AC Power cord and connect to the AC input
power source.
2 HDMI Input Terminal Connect this port to the HDMI/HDMI-DVI jack of the compatible
equipment.
3 VGA signal input Connect a 15-pin D-sub RGB cable to the RGB output of your
computer and the other end to the RGB input on the rear of the LCD
TV.
4 YPbPr signal input Connect this jack to the YPbPr output of A/V device.
5 Composite Video input Connect this jack to the composite video output connectors on your
A/V equipment.
6 Headphone Jack Connect to your headphones. By connecting the headphones, you can
listen to the sound from the TV on headphones.
If you connect the headphones, the TV speakers will be muted.
7 TV Input Jack Connect this jack to your Cable or VHF/UHF antenna.
8 S-Video input Connect the S-Video cable from the compatible device to this
connector on the rear panel of the LCD TV.
9 AV/ S-Video signal
Audio input (left/ right)
Connect the Audio in cable for AV/ S-Video from this jack to the
corresponding connectors on your A/V device.
10 YPbPr/ DVI signal
Audio input (left/ right)
Connect the Audio in cable for YPbPr/ HDMI-DVI from this jack to
the corresponding connectors on your A/V device.
