VIZIO VP50HDTV User Manual
Version 4/17/2007
9
www.VIZIOCE.com
1.3

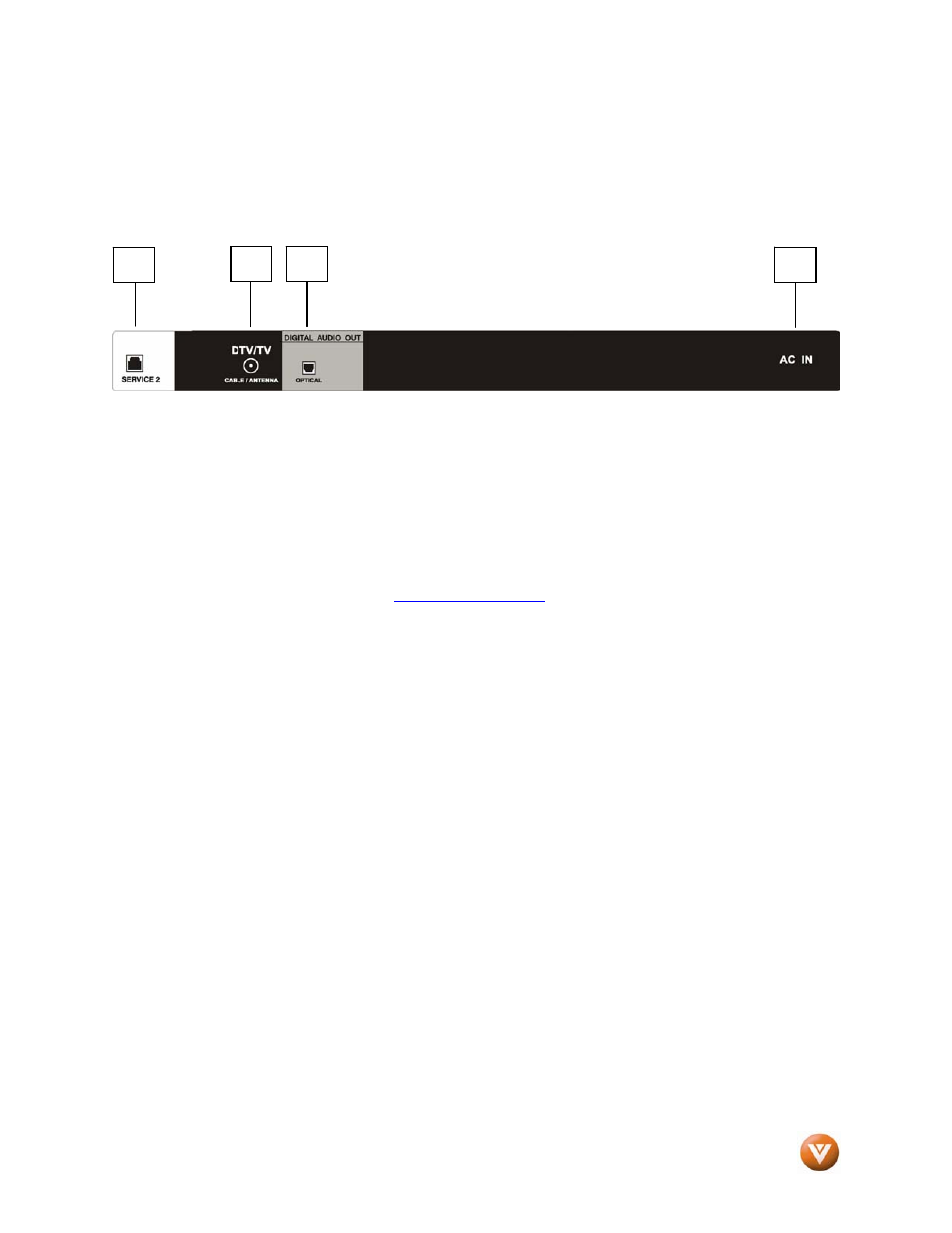

Rear Panel Connections
Right Portion
1.
SERVICE 2 – This custom communication port is for factory service only.
2.
DTV – Connect to an antenna or digital cable for Digital TV.*
3.
OPTICAL DIGITAL AUDIO OUT – When the DTV input is selected for viewing, the digital
audio associated with digital programming will be available on this SPDIF Optical connector
for connection to your home theatre system. The gray color band on the rear of the TV
indicates this connection.
4.
AC IN – Plug-in the supplied AC Power Cord here.
* For digital TV stations in your area visi
1
2
4
3
