VIZIO RP56 User Guide
040330 17
Connecting your HDTV Set-Top Box
Using Digital Video
HDTV Set-Top Boxes that have a digital interface compliant with the DVI (Digital Visual Interface)
standard can be connected to the DVI input of the DLP TV.
Note:
3.
Use TMDS signals conforming to DVI standards. The TMDS input is a single link input.
4. To maintain the display quality use a DVI cable from V, Inc. that is 10 meters or less.
1.
Turn off the power to the DLP TV and HDTV Set-Top Box.

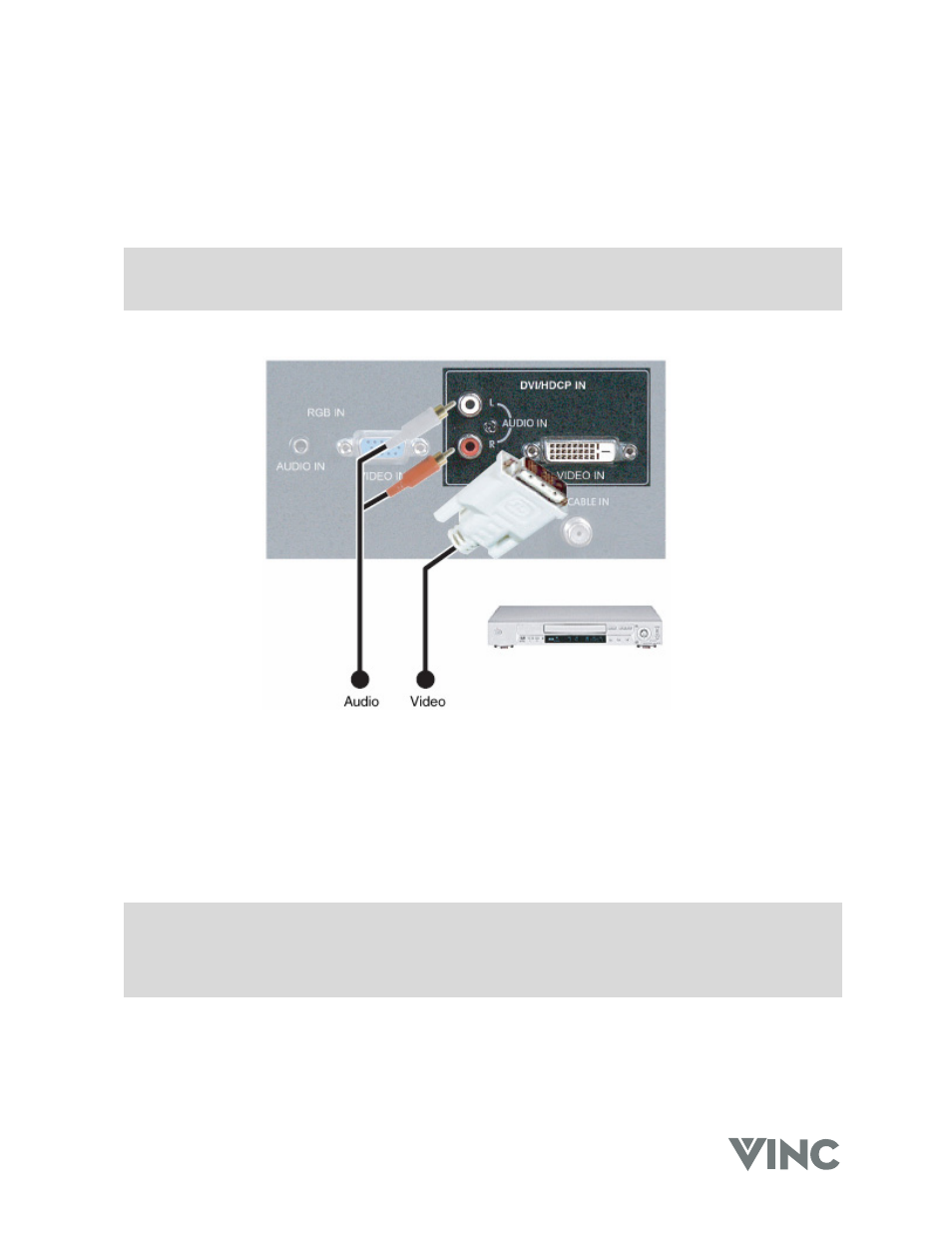

2. Connect a DVI-D cable to the DVI output of your HDTV Set-Top Box and the other end to the DVI
input in the rear of your DLP TV.
3. Connect the Audio Out (Left + Right) on your HDTV Set-Top Box to the DVI Audio In L (White)
and R (Red) in the rear of your DLP TV, next to the DVI connector.
4. Turn on the power to the DLP TV and your HDTV Set-Top Box.
5. Select DVI using the INPUT button on the front of the DLP TV.
Note: a). The DVI input on your DLP TV supports High-bandwidth Content Protection (HDCP).
HDCP encrypts the transmission between the video source and the digital display for
added security and protection.
b). Refer to your HDTV Set-Top Box User Manual for more information about the video output
requirements of the product or consult your Satellite or Cable operator.
