Connecting a CD Player with RCA Audio and Video

Outputs to the CD Input

A CD player can be connected to the CD inputs using the L/

R (red & white) RCA audio inputs and the RCA video (yellow)

input.

What you will need

• Player with RCA audio and video outputs

• RCA L/R audio cable (red & white)

• RCA video cable (yellow)

Audio

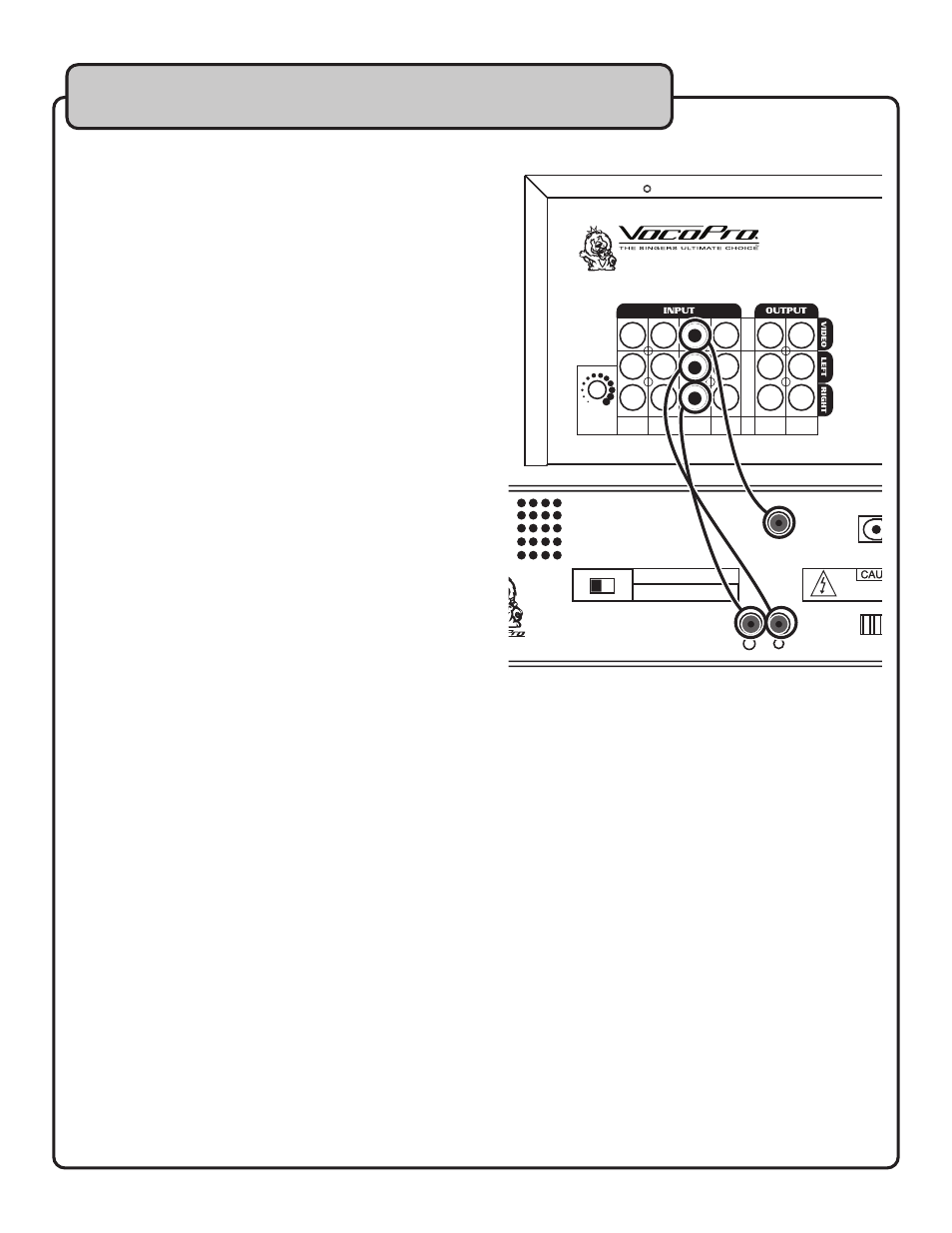

1. Connect one end of the red and white RCA audio cable to

the L/R audio outputs on your player

2. Connect the other end of the red and white RCA audio

cable to the CD L/R audio inputs on the DA-3800 PRO

rear panel

Video

1. Connect one end of the RCA video cable to the RCA video

output on your player

2. Connect the other end of the RCA video cable to the CD

RCA video inputs on the DA-3800 PRO’s rear panel

3. Select the proper input channel on the DA-3800 PRO.

NOTE: All four of the A/V input channels have

RCA audio and video inputs so make sure the

correct one is selected.

Selecting the Correct input channel

Front panel: Press the INPUT button on the DA-3800

PRO front panel until the CD input channel is displayed on

the screen
Remote Control: Press the input button on the remote

control until the CD input channel is displayed on the

screen

��
