CAUTION
DO NOT use any type of cleaner on the condenser
unit.
4. Clean the condenser coil (Figure 11, 2) using a soft
brush with a “combing” action or vacuum cleaner. Do
not touch the condenser coil.
5. Position the grille to align the mounting screws with
the holes in the cabinet.
6. Secure, but do not over-tighten both grille screws.
7. Reconnect power to the unit.
Ice Maker Maintenance
Inlet Screen
Interval - Every Twelve Months
The solenoid valve inlet screen must be cleaned at least
once each year as follows:
1. Shut off the water at the main supply valve.
2. Pull the unit out to access the back panel.
3. Disconnect electrical power to the unit.

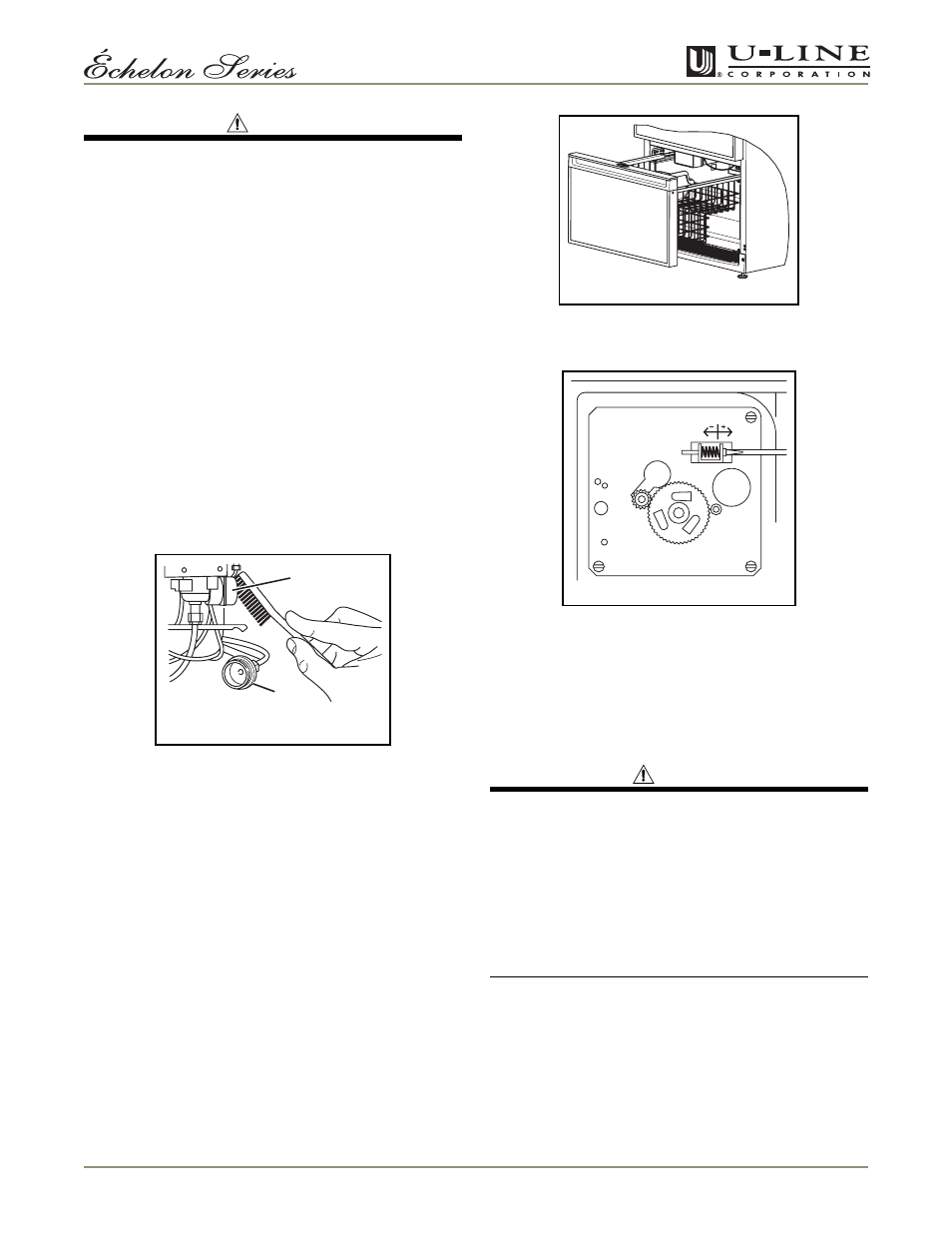

Figure 12
4. Disconnect the hose connector (Figure 12, 1) from the
water solenoid valve (Figure 12, 2).
5. DO NOT remove the inlet screen from the water
solenoid valve. Use a tooth brush to gently clean any
sediment from the inlet screen.
6. Re-connect the water supply hose connector (Figure
12, 1) to the water solenoid valve (Figure 12, 2).
Tighten the connector securely.
7. Open the water main supply valve and check for
leakage at the water hose connection. Ensure that the
water supply line is not kinked.
8. Reconnect power to the unit before re-installing.
Ice Cube Thickness Adjustment
Interval - As Required
On ice maker equipped models, the cube size may be
adjusted by changing the amount of water injected into
the ice maker assembly as follows:
Figure 13
1. Remove the ice maker assembly cover (Figure 13).
Figure 14
2. Locate the adjusting screw on the ice maker assembly
control box. The adjusting screw is just below the minus
(-) and plus (+) signs on the control box (Figure 14).
NOTE: Make adjustments in small increments. Too
large of an adjustment could cause the unit to
malfunction.
CAUTION
Too large of an adjustment to the screw can cause
the water to overflow the ice maker and can cause
property damage.
3. Turn the adjusting screw toward the minus (-) sign
(clockwise) for smaller cubes or toward the plus (+) sign
(counterclockwise) for larger cubes.
4. Install the ice maker assembly cover.
IMPORTANT
IMPORTANT
Use only genuine U-Line replacement parts. U-Line
ice maker parts are not the same as standard FSP
Whirlpool parts. Using non U-Line parts can reduce
ice rate, cause water to overflow from ice maker
mold, damage the unit, and may void the warranty.
