Cables and Connector Pinouts
A-1
v1.0, May 2007
Appendix A
Cables and Connector Pinouts
This appendix describes cables and connector pinouts for ports on the WFS709TP ProSafe Smart
Wireless Switch.
Fast Ethernet Network Ports
RJ-45 Pinouts

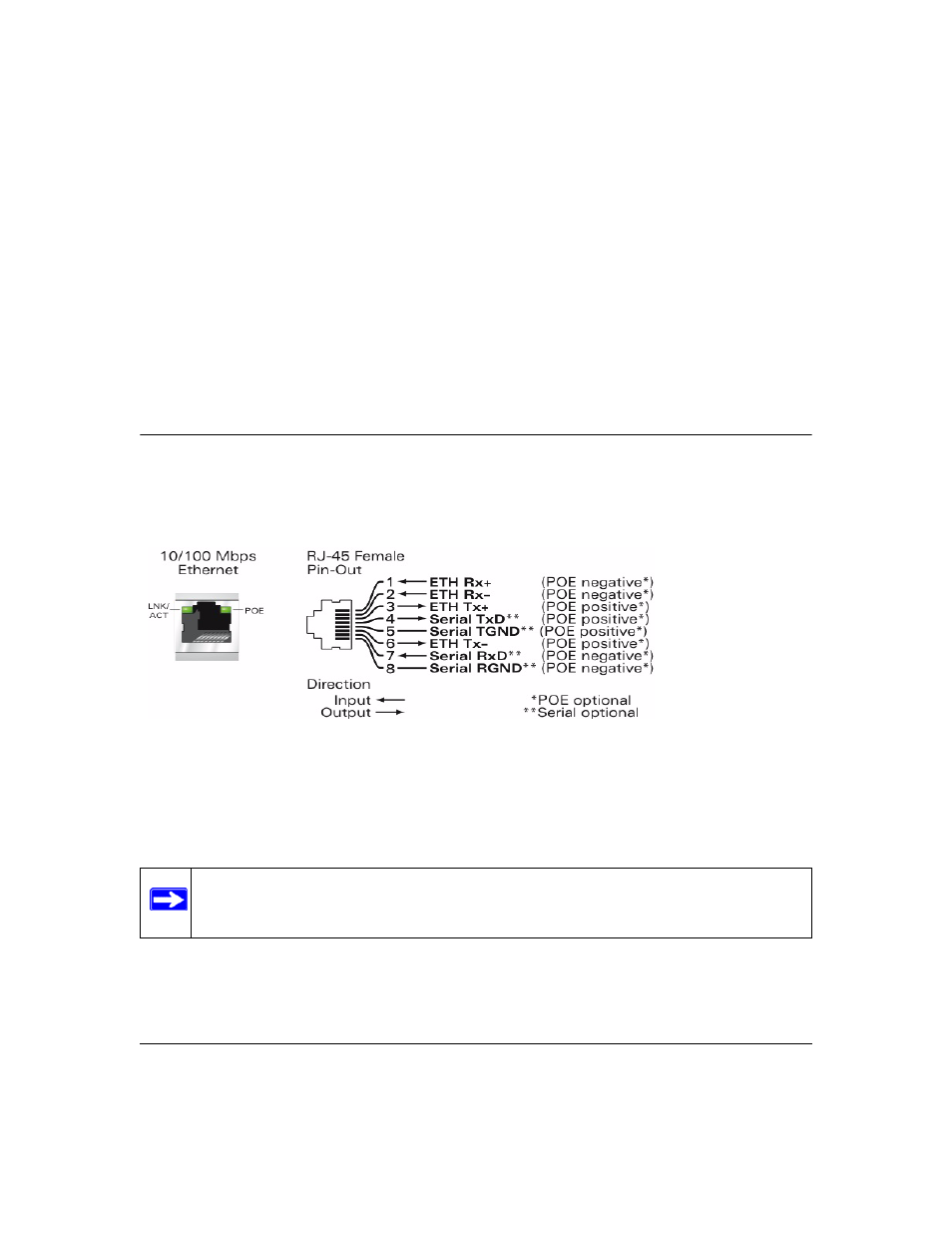

The RJ-45 female connector pinouts are shown in
:
Cables
The type of cable required for each port depends on the device being connected.
•
Direct connection to a POE-compatible device
This requires a 4- or 8-conductor Category 5 UTP Ethernet cable with an RJ-45 male
connector. A straight-through cable is required to preserve POE voltage polarity.
Figure A-1
Note: Refer to the document Installation Guide: ProSafe Wireless Access Point for
information about specific power requirements.
