CONNECTIONS
13
CONNECT TO TV C

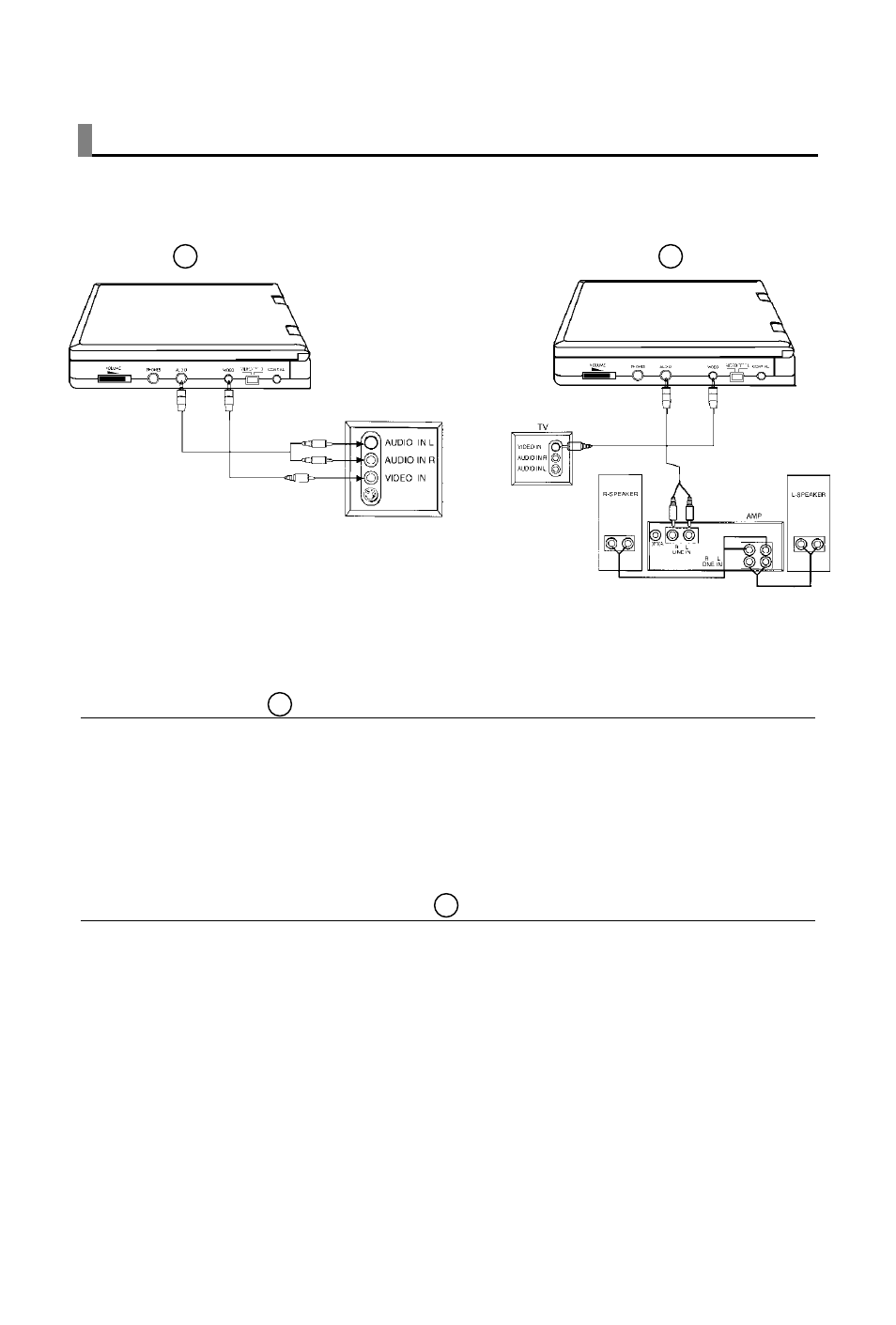

The AV cords are connected according to diagram C:
1.
Mini - plug: connect to the VIDEO OUT jack of the unit.
2.
Yellow plug: connect to the VIDEO IN jack of the TV.
3.
Mini - plug: connect to the AUDIO OUT jack of the unit.
4.
Red - plug: connect to the AUDIO IN R jack of the TV.
5.
White - plug: connect to the AUDIO IN L jack of the TV.
CONNECT TO TV AND AMPLIFIER D
The AV cords are connected according to diagram :
1.
Mini - plug: connect to the VIDEO OUT jack of the unit.
2.
Yellow plug: connect to the VIDEO IN jack of the TV.
3.
Mini - plug: connect to the AUDIO OUT jack of the unit.
4.
Red - plug: connect to the LINE IN R jack of the amplifier.
5.
White - plug: connect to the LINE IN L jack of the amplifier.
NOTE:
When the unit is connected to a TV, the slide switch must be set to
“VIDEO” position.
D
C
