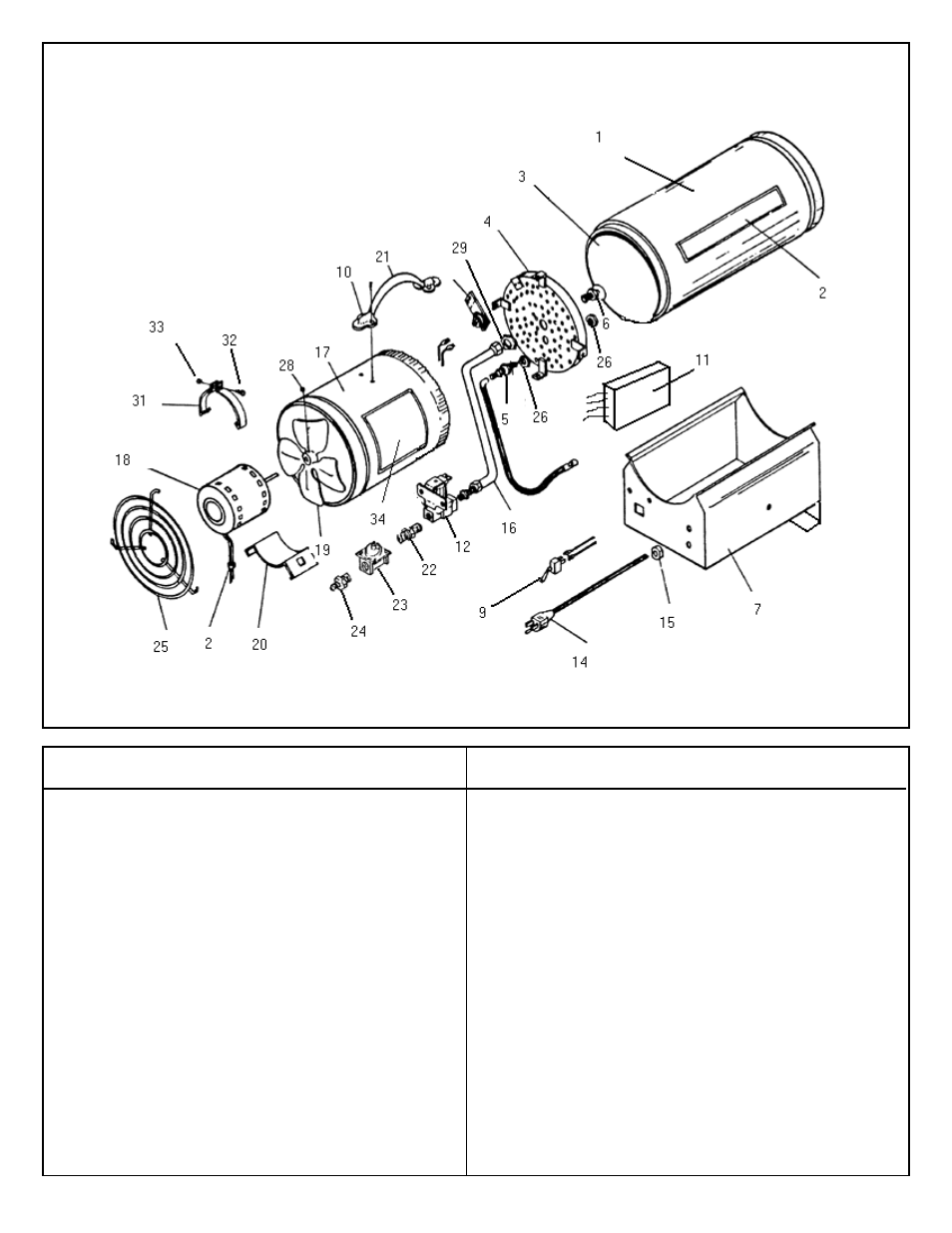

150-FASNG PARTS
Item Part No.
Description
Qty.
1
1700
Burner Shell Ass'y
1
2
6225
Snap Bushing, 5/8"
1
3
1672
Middle Cylinder
1
4
1146
Flame Holder Ass'y
1
5
1083
Spark Plug
1
6
1216
Orifice Ass'y
1
7
1741
Control Box Ass'y
1
8
1550
High Limit Switch
1
9
6170
Toggle Switch
1
10
7094
Clip, Handle Mtg.
2
11
7808
Flame Control, potted
1
12
6100
Solenoid Valve
1
13
6123
Fitting, Male Connector
1
14
1036
Power Cord
1
15
6223
Bushing, Strain Relief
1
16
1171
Fuel Tube Ass'y
1
17
1939
Motor Shell
1
18
1561
Motor Ass'y
1
19
6074
Fan Blade
1
20
3132
Saddle, Motor Support
1
21
7095
Handle Ass'y
1
22
6146
Fitting, Reducing Nipple
1
23
6259
Regulator
1
24
6125
Fitting, Male Connector
1
25
3087
Grill, Inlet
1
26
3037
Nut, Spark Plug
3
*
7295
Label, Wiring Diagram
1
28
6010
Set Screw
1
29
3038
Nut, Orifice
1
30
8682
Label, Logo
2
31
3133
Support, Motor Strap
2
32
6030
Screw, Machine
1
33
6053
Nut, Lock
1
34
6428
Label, Operating/Instruction
1
*
6189
Terminal, "Y" Adaptor
1
*
8688
Manual, Operating Instructions
1
*
8679
Label, BTU Rating
1
*
6384
Label, NG
1
*
7348
Label, Warning
1
*
7704
Label, Warning
1
*
8685
Striping
1
*
Not shown on exploded view
