E. Do not use this appliance if any part has

been under water. Immediately call a qualified

service technician to inspect the appliance

and to replace any part of the control system

and any gas control which has been under

water.

LIGHTING INSTRUCTIONS FOR

CONTINUOUS PILOT SYSTEM

1. Stop! Read the safety information at

the beginning of this manual.

2. Set thermostat to lowest setting.

3. Turn off all electric power to the

appliance.

4. Remove manifold cover and burner

door, (figures 13 & 15 on pages 14 & 16).

5. Turn gas control knob clockwise to “off” (See Note #1).

NOTE #1: Some gas control knobs cannot be turned from “pilot” to “off” unless knob is

pushed in slightly. Do not force.

6. Wait (5) minutes to clear out any gas. If you smell gas, stop! Follow safety information

“What to do if you smell gas,” located on page 10 of this manual. If you don’t smell gas, go

to the next step.

7. Find pilot. Follow metal tube from gas control. Depending on the model of the boiler,

pilot is mounted on the base or on one of the burner tubes.

8. Turn gas control knob counterclockwise

to “pilot”.

9. Push in gas control knob, or reset button if so equipped, all the way in and hold.

Immediately Light the pilot with a match. Continue to hold the gas control knob or reset button

for about one (1) minute after the pilot is lit. Release knob or button and it will pop back up.

Pilot should remain lit. If it goes out, repeat steps 5 through 10.

* If knob or button does not pop up when released, stop and immediately call your

service technician or gas supplier.

* If the pilot will not stay lit after several tries, turn the gas control knob clockwise

to “off” (see note #1 above) and call a service technician or gas supplier.

10. Replace burner door and manifold cover, (figures 13 & 15 on pages 14 & 16).

11. Turn gas control knob counterclockwise

to "on".

TO TURN OFF GAS TO APPLIANCE

1. Set the thermostat to the lowest setting.

2. Turn off all electric power to the appliance if service is to be performed.

3. Remove access panel (if present)

4. Turn gas control knob clockwise

to “off”. (See note #1) in the lighting

instructions. Do not force.

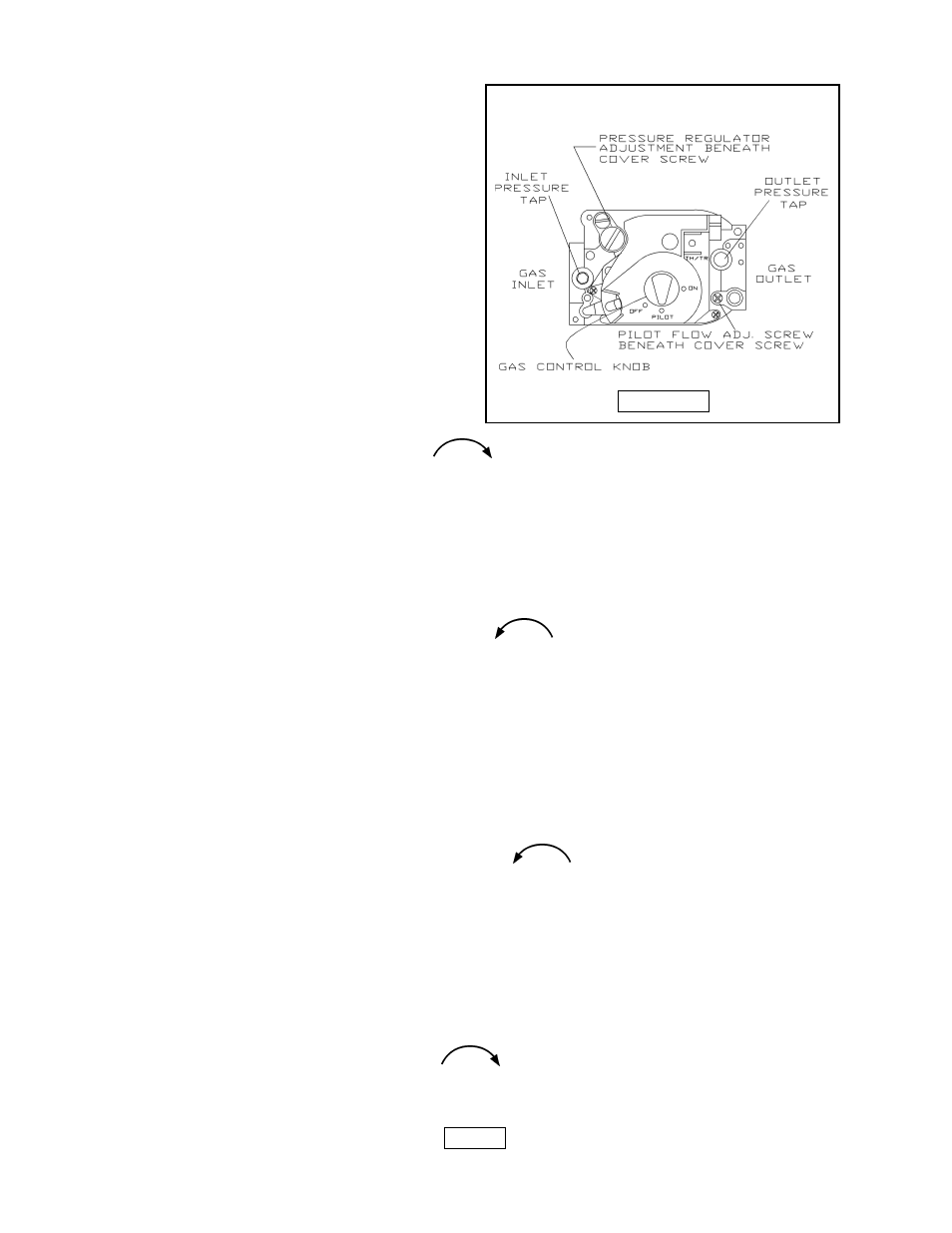

CONTINUOUS PILOT GAS VALVE

FIGURE 12
