10 •DRAWINGS FOR ILLUSTRATION PURPOSES ONLY•
ASSEMBLY OF FURNACE
Your furnace requires the following items
to be assembled or installed by the service
person:
Feed Door Handle
Feed Door Latch
Ash Door Handle
Ash Door Latch
Blower and Blower Control
Electrical Connections
Remove all parts from inside the
furnace and inspect for damage,
including the firebrick as some
breakage could occur during
shipment.

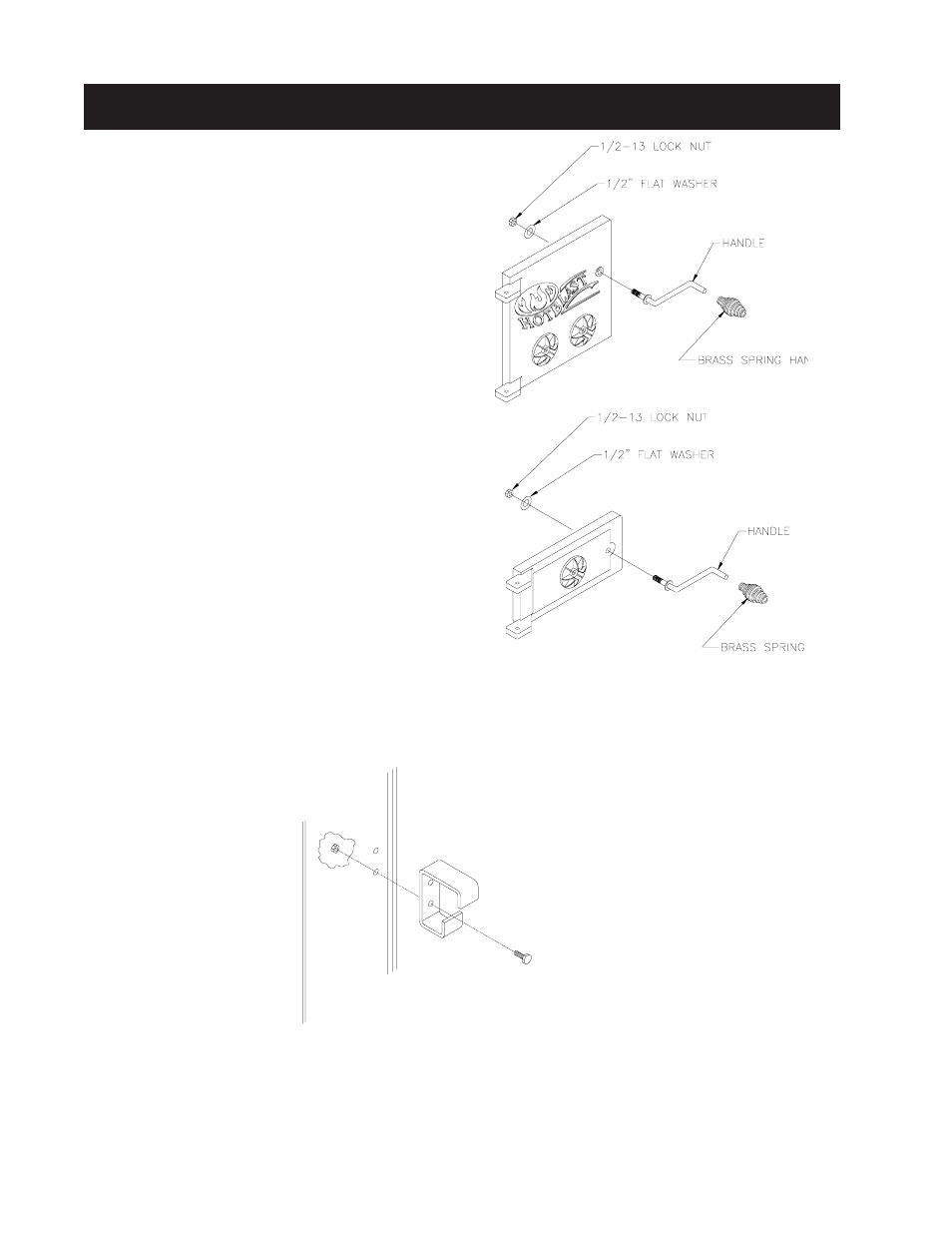

Assemble the feed door handle and
the ash door handle as shown in
Figure 8.
Install the latches as shown in Figure
9. 1.
2.
3.
FIG. 8
FIG. 9
