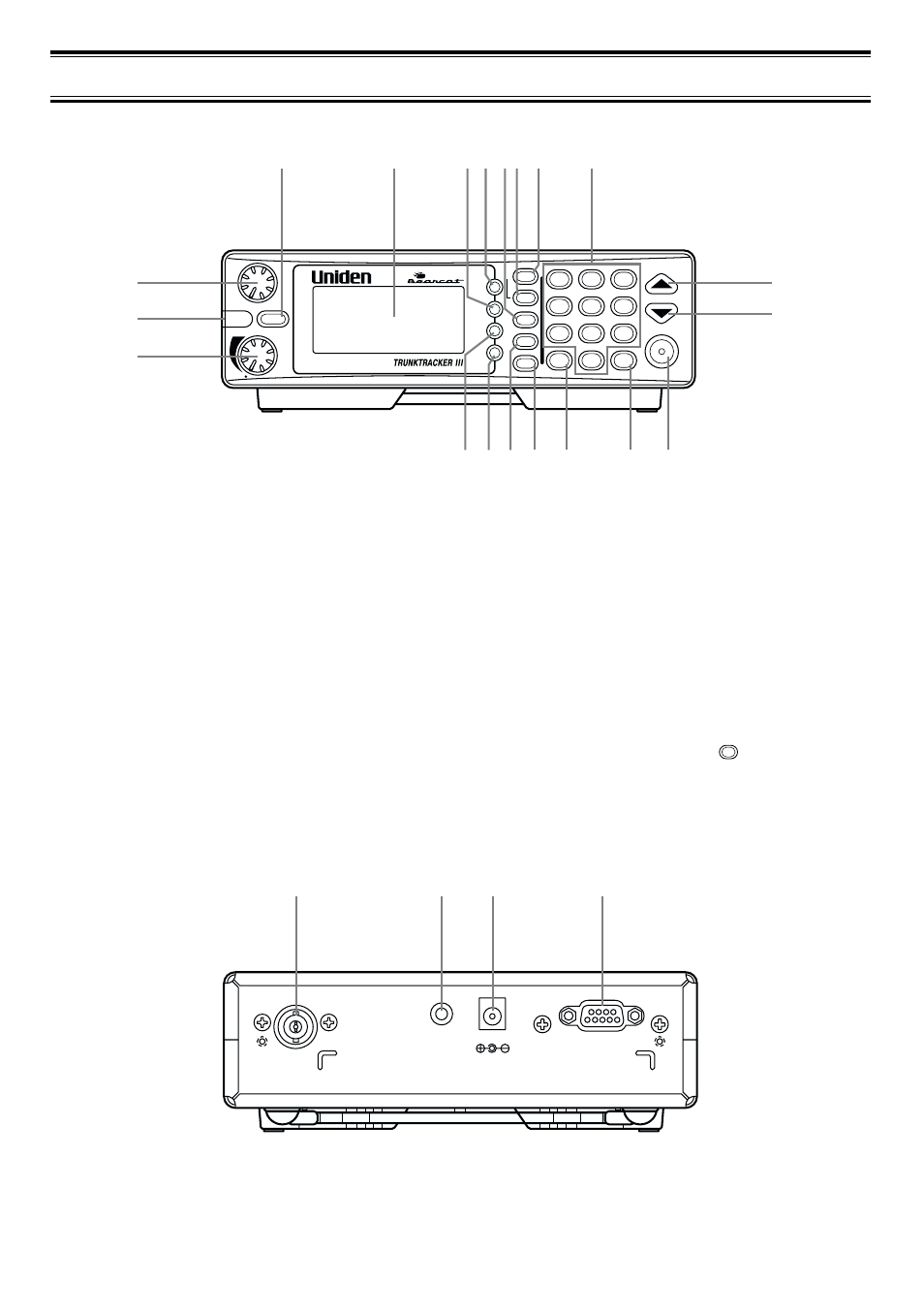

Front and Rear Views
1. Squelch Control / Flash Brightness
Selector (SQL, FLASH)
2. Alerting Light (ALERT)
3. Volume Control / Alert Tone Selector
(VOL)
4. Mute Key (MUTE)
5. Display
6. Lockout Key (L/O)
7. Delay Key (DELAY)
8. Service Key (SVC)
9. Private Scanning Key (PVT)
2
STATE HWY
PVT
SVC
SRCH
TRUNK
1
1-50
4
151-200
DELAY
L/O
DATA
PRI
SQL
BCT8
VOL
push
ALERT
push
FLASH
MUTE ALERT
7
.
RMT
2
51-100
5
201-250
8
0
3
101-150
6
9
E
M-LOCK
HOLD/RESUME
12
13
4
2
3
1
5 6 7 8 9 10 11
19 20 18 17 16 1415
21. Antenna Connector ( ANT.)
22. External Speaker Jack (EXT. SP.)
23. DC Power Jack ( DC 12V)
24. Remote Control Terminal (REMOTE)
ANT.
EXT.
SP.
DC 12V REMOTE
21 22 23 24
10. Highway Scanning / State Key ( HWY,
STATE)
11. Numeric Keypad
12. Up Key (
▲)
13. Down Key (
▼)
14. Data Key (DATA)
15. Priority Key (PRI)
16. Search Key (SRCH)
17. Trunk Key (TRUNK)
18. Decimal/Remote Key (
, RMT)
19. Enter / Memory Lock Key (E, M-LOCK)
20. Hold/Resume Key (HOLD/RESUME)
.
