PARTS INFORMATION
[email protected] Page 4
TC- 4700

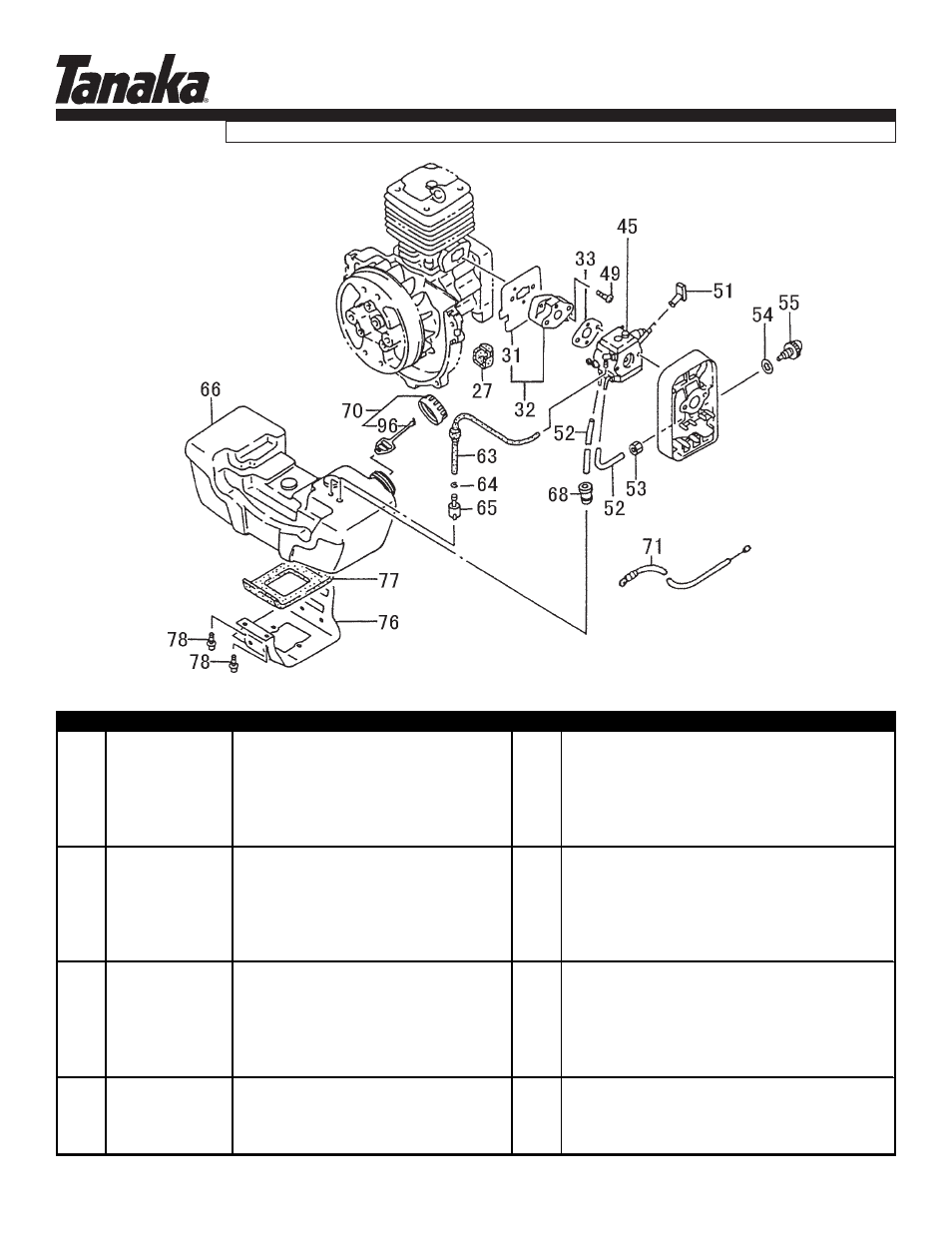

FUEL SYSTEM • FIGURE 3
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
3-27 65504200200 CUSHION,FUEL TANK 2
3-31 4030422021 GASKET,INTAKE 1
3-32 4040422U90 SET,CARB INSULATOR 1
3-33 4020174020 GASKET,CARBURETOR 1
3-45 45525055900 CARBURETOR 1
3-49 99464050254 BOLT,HEX HOLE,5X25WS 2
3-51 49504200200 LEVER,CHOKE 1
3-52 70002504090 PIPE,FUEL 2
3-53 99111100011 NUT,10 1
3-54 99220100010 WASHER,10 INNER TOOTHED 1
3-55 42225030800 PUMP,PRIMING 1
3-63 22301251901 PIPE,FUEL,3X5X230 1
3-64 68000731201 CLIP 6.3 1
3-65 67501630900 FILTER,FUEL 1
3-66 5910422P21 TANK,WHITE,TC-4700 1
3-68 53432710200 GROMMET,FUEL PIPE 1
3-70 5950651690 CAP,TANK,BLACK 1
3-71 8850428280 WIRE,THROTTLE 1
3-76 60304201200 BAND,HOLDING,TANK 1
3-77 65204201200 CUSHION 1
3-78 99463050164 BOLT,HEX,5X16,PS 2
3-96 62632810200 CHAIN,TANK CAP 1
