3
48U
42U
A A B B
C C D D
M
F
M
M
E
M
M
E G
1-2
1-3
1-4
1-5

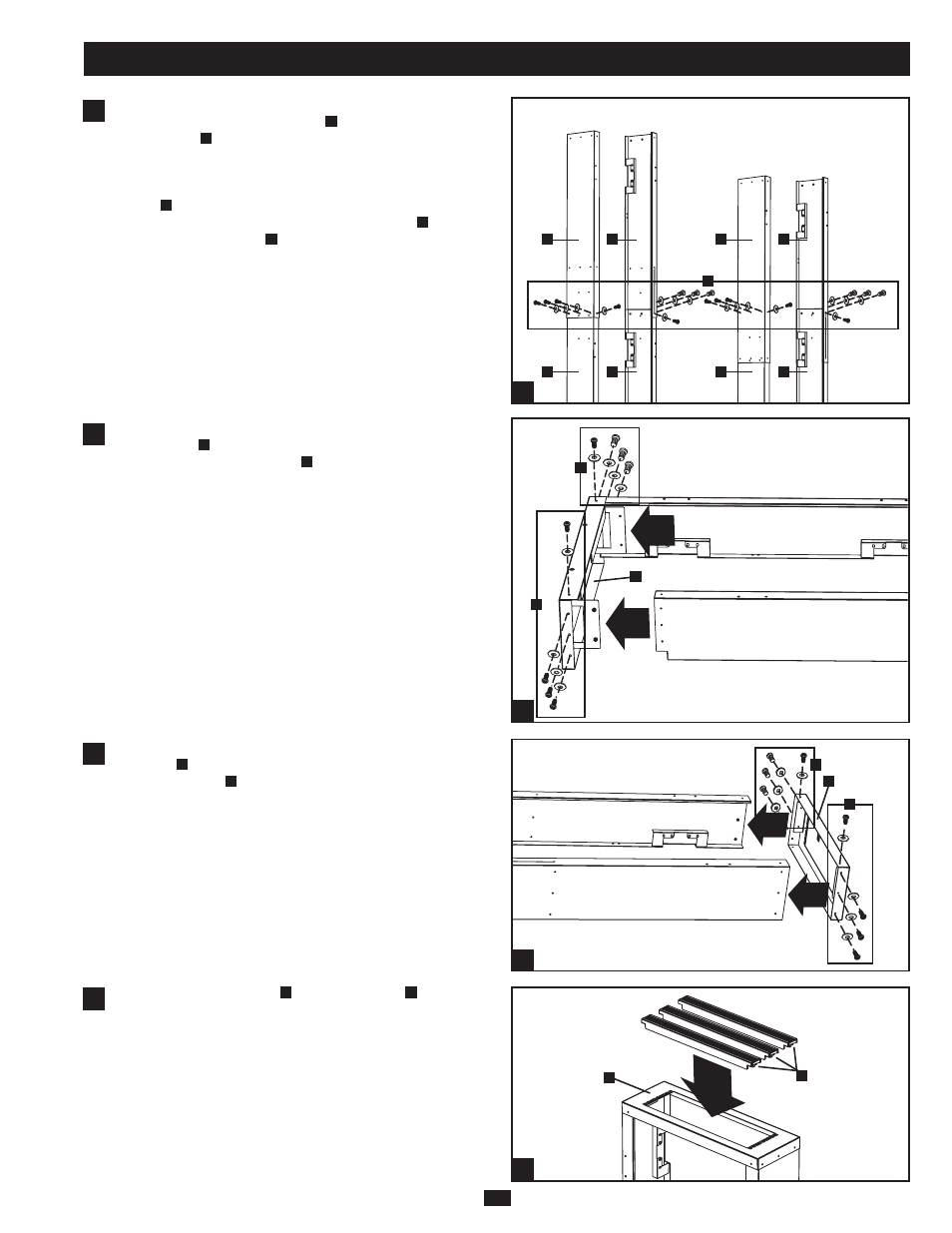

1 – Frame Assembly
(continued)
(For 25U enclosures, skip this step.) Align the set of four screw
holes in the lower left vertical section
A and the upper left
vertical section C
. Use the lower set of screw holes for 48U
enclosures (this will make the vertical section longer). Use the
upper set of screw holes for 42U enclosures (this will make the
vertical section shorter). Insert four M5 x 10 mm screws and
washers
M and tighten securely. (Start all the screws before
tightening.) Repeat for the lower right vertical section
B and the
upper right vertical section D .
Insert the lower end of the left vertical section into the
bottom section
F
as shown. Align the screw holes, insert four
M5 x 10 mm screws and washers
M
and tighten securely. (Start
all the screws before tightening.) Repeat this step for the right
vertical section.
Insert the upper end of the left and right vertical sections into the
top section
E . Align the screw holes, insert eight M5 x 10 mm
screws and washers M and tighten securely. (Start all the screws
before tightening.)
Insert the 1U blanking panels G into the top section E .
Each blanking panel will snap into place with the Tripp Lite logo
facing outward. The blanking panels may be removed to install
standard 19-inch rack accessories up to 3U – contact Tripp Lite
for more information.
