6 OMEGA Antenna Installation Manual
Installing the Antenna
Use the following procedure to assemble the Yagi antenna:
1. Mount the mast onto a wall using the supplied bracket and screws.
2. Mount the brass clamp, as shown in Figure 2.

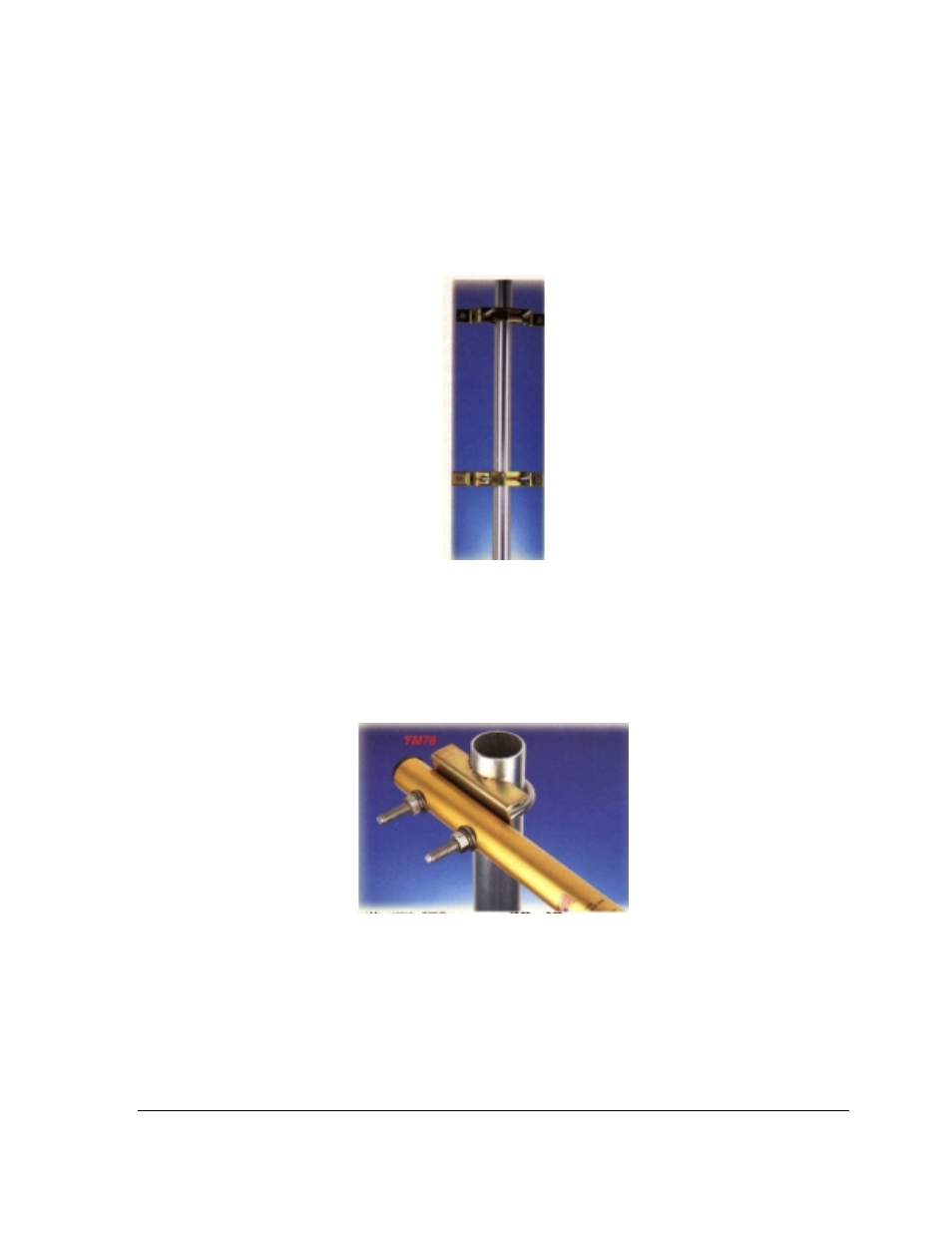

Figure 2. Mounting the Brass Clamp
3. Align the antenna with the brass clamp.
4. Use the two supplied flat washers, lock washers, and screws to secure the antenna to the
brass connector, as shown in Figure 3.
Figure 3. Completed Antenna Assembly
5. To prevent moisture from entering the OMEGA, route the antenna cable through the
conduit hole at the bottom of the OMEGA.
6. Open the OMEGA enclosure and connect the antenna cable to the OMEGA transceiver.
