TD-8616B ADSL2/2+ Ethernet Modem User Guide
7

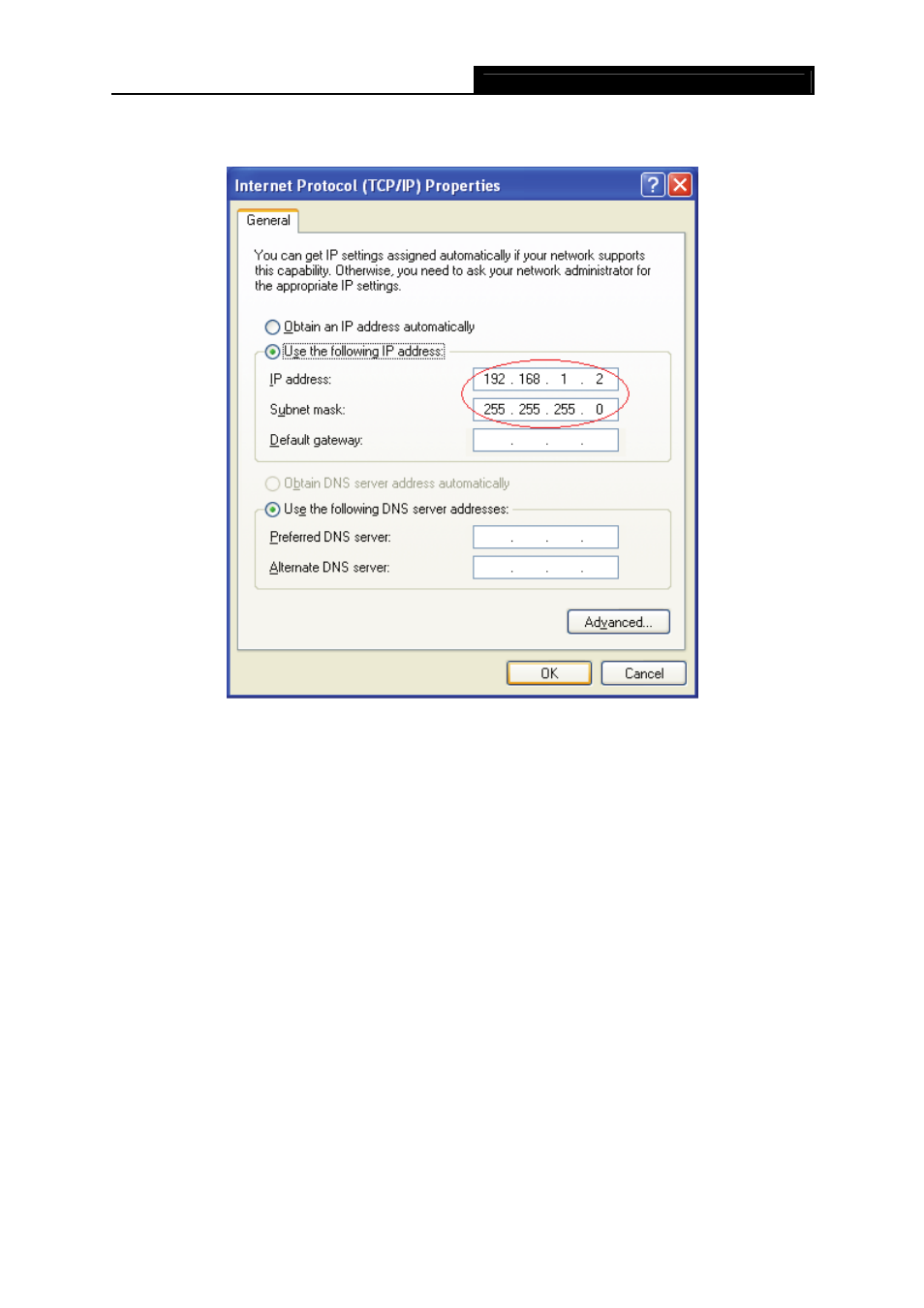

Step 4: Configure the IP address (Figure 3-4): Enter the IP address as 192.168.1.* (* is any
value between 2 to 254, Subnet mask is 255.255.255.0). After that, click OK.
Figure 3-4
)
Note:
1) The users of Windows 98 can open TCP/IP Properties according to the following:
Right-press (Mouse) Network Neighbor -> Choose Properties -> Double-press TCP/IP. PCI
Fast Ethernet Adapter.
2) The words in fact maybe are different with this guide.
Now, you can run the Ping command in the command prompt to verify the network connection.
Please click the Start menu on your desktop, select run tab, type cmd in the field and press
Enter. To continue, please type ping 192.168.1.1 on the following appeared command prompt
screen and then press Enter.
If the result displayed is similar to the screen below, the connection between your PC and the
Modem has been established.
