4
CU111 Installation

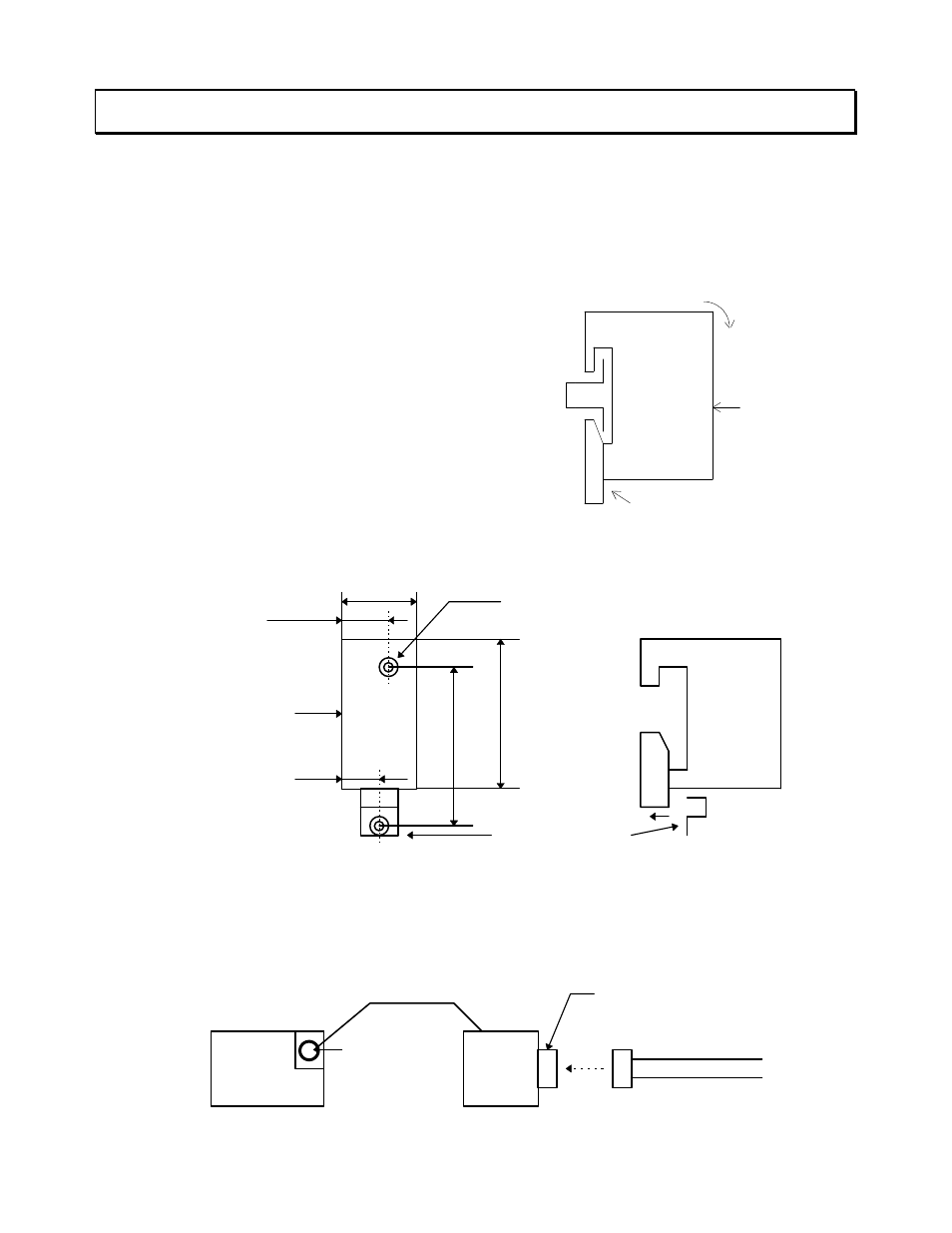

3.Installation
1.Installing the adapter
Either DIN rail or screw mounting is available.
The length of the T1 connection cable is 30cm. Consider the cable length when installing
the multi-drop adapter.
Please read the installation section of the T1 user’s manual.
Mounting
Adapter
DIN rail bracket
(Screw mounting)
Attach the metal fittings for screw to the DIN rail bracket and screw securely using the M3
screws.
2.Connecting the dedicated cable
Turn off the power of the T1 main unit. Connect the T1 side connector to the T1’s
programmer port and RS485 cables to the terminal block.
Do not connect or remove the cables while power to the T1 is on.
(Mounting on a DIN rail)
(1)Hang the adapter on the DIN rail at first.
Next, push the adapter and hook the
DIN rail.
(2)Please check that the DIN rail bracket
hooks the DIN rail.
DIN rail
(35mm)
30mm
23mm
adapter
2-M3
15mm
fitting for screw
95mm 90mm
T1 CU111
Programmer
port
Terminal block
RS485
T1 dedicated cable
