Welcome to Toshiba
Congratulations! You have purchased one of the finest color TVs on the
market. The goal of this manual is to guide you through setting up and
operating your Toshiba TV as quickly as possible. Please make sure you
have received the following items: TV, remote control, batteries, owner’s
manual, registration card, and extended service plan literature. If you
did not receive all of the items or if any of the items are damaged or
broken, please contact your Toshiba dealer. In addition, you may need
to purchase other audio or video cables to connect your equipment. See
“Connecting your TV” on page 7 for more information.
Please read all safety and operating instructions carefully before you
proceed.

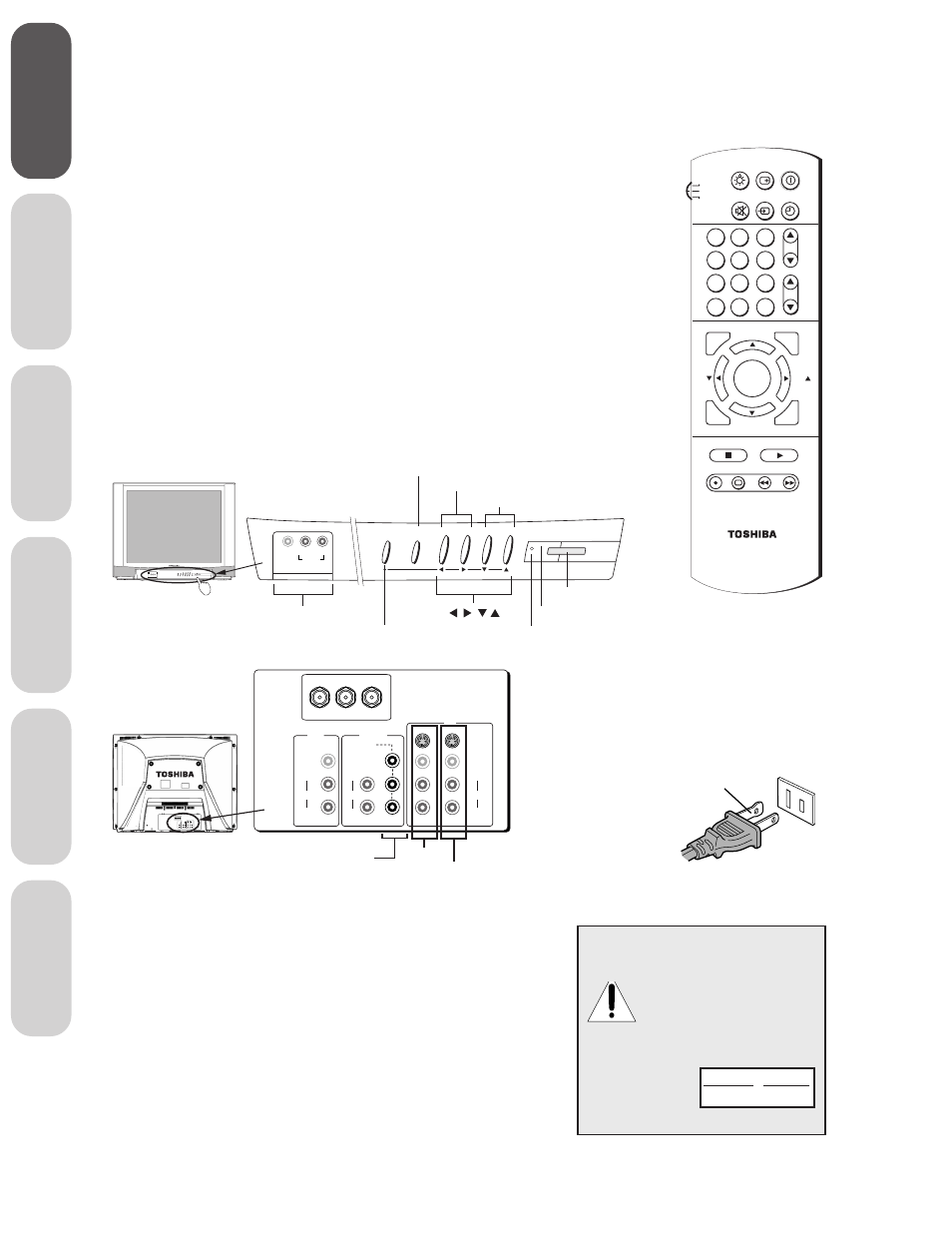

Exploring your new TV
You can operate your TV using the buttons on the front panel or the
remote control. The back panel provides all the terminal connections
you will need to connect other equipment to your TV.
wide prong
Caution:
The plug has one prong wider than the other
and will fit only one way into a standard
electrical outlet (120 volt AC, 60 Hz). If the
plug does not fit into the outlet, try turning it
around. If the
plug still
does not fit,
the outlet is
probably non-
standard and
must be
replaced by a qualified electrician. Do not
tamper with the plug or try to force it
into a non-standard outlet.
Selecting a location for the TV
• Place the TV on the floor or on the recommended TV stand (see
“Notice of Possible TV Stand Instability” at right).
• Place the TV in a location where light does not directly hit the
screen.
• Place the TV far enough from the walls to allow proper ventilation.
Inadequate ventilation may cause overheating, which may damage
the TV.
The serial number is on the back of your TV. Record the number in
the space below. Refer to the model and serial numbers whenever you
communicate with your Toshiba dealer about this TV.
Model number: ________________________
Serial number:
________________________
NOTICE OF POSSIBLE
TV STAND INSTABILITY
Use with other
stands may result
in instability,
causing possible injury or death.
WARNING: RISK OF
SERIOUS PERSONAL
INJURY OR DEATH!
Use your TV with the Toshiba TV
stand recommended below only !
TV Model TV Stand
36A61 ST3641
36A61
CH RTN
ADV/
PIP CH
ADV/
PIP CH
TV
CABLE
LIGHT
MUTE TV/VIDEO TIMER
RECALL POWER
VCR
CH
VOL
ENT
ENTER
PLAY PIP
REC
STILL LOCATE SWAP
TV/VCR REW FF
STOP SOURCE
FAV FAV
C.CAPT
EXIT
MENU
RESET
1
4
7
2
5
8
3
6
9
0 100
CT-9946
36A61 – Rear
Video 1
ColorStream
(component video)
Video 2
36A61
MENU TV / VIDEO VOLUME CHANNEL POWER
Menu
Channel
TV/Video
Volume
Power Indicator (Red)
Remote Sensor
POWER
Video 3
VIDEO L/MONO R
AUDIO
VIDEO-3 IN
