3. System Components & Compatibility
4. Features
Package contains:
• B021-000-19-SH 1U Short-Depth Rackmount Console
• Mounting Hardware
• USB Cable Kit with PS/2 Adapter
• AC Power Adapter
• User’s Guide
The B021-000-19-SH supports most servers and KVM switches with PS/2 or USB console port connectors.

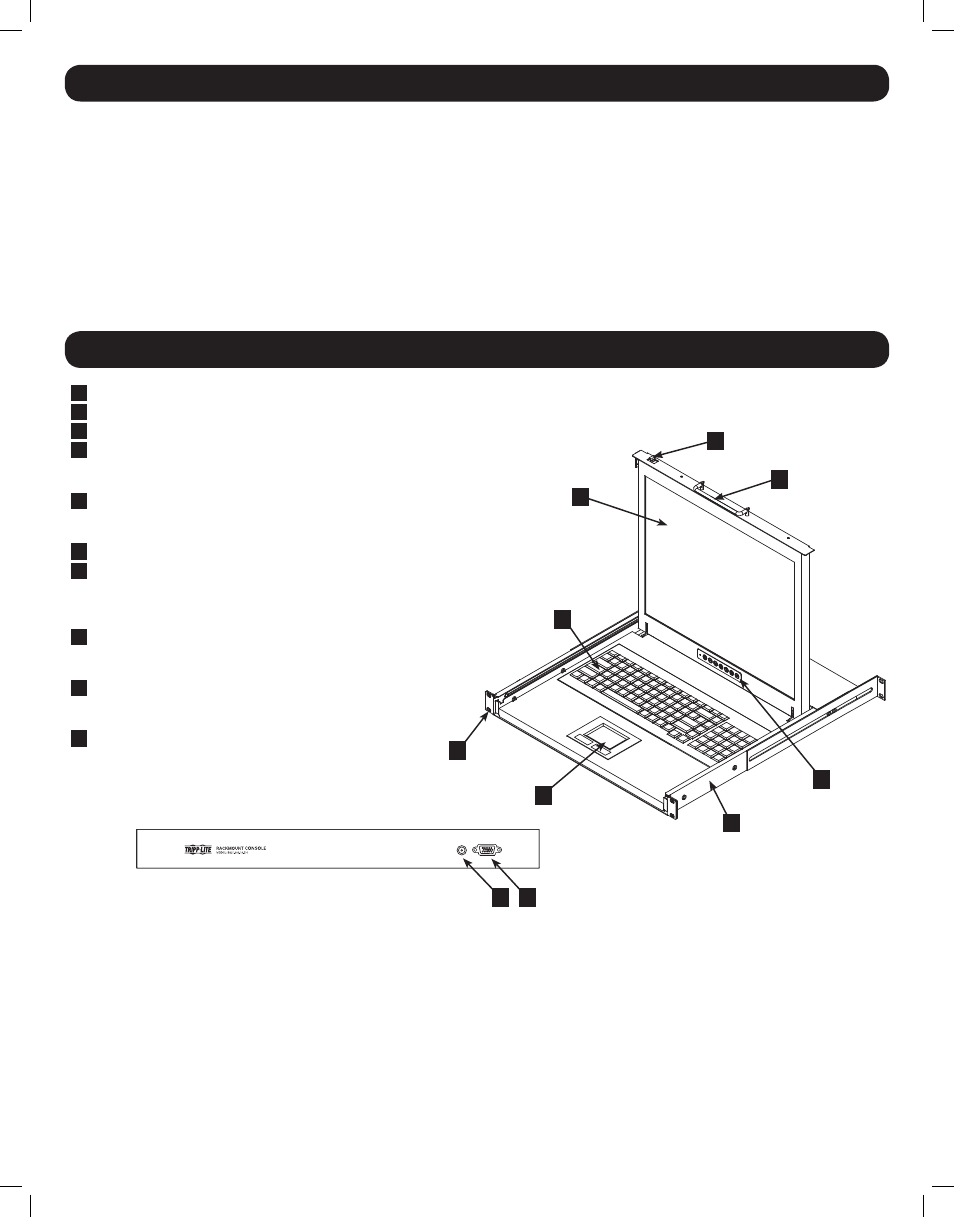

1 Handle: Pull to slide the Console out; push to slide in.
2 LCD Monitor: After sliding the Console out, flip up the cover to access the LCD monitor, keyboard and touch pad.
3 Keyboard
4 Slide Release: Locks the drawer closed when the Console is
not in use and prevents it from accidentally sliding open. To
slide the Console out, release it by moving this tab sideways.
5 Rackmounting Brackets: Included with the B021-000-19-SH;
install at each corner of the unit. For rackmounting instructions,
see Section 5.
6 Two Button Touchpad
7 LCD Display Controls: Control the position and picture
settings of the LCD display. Also includes a power LED to
indicate the status of the LCD panel. See Section 7, LCD
OSD Configuration, for details.
8 Railway Release Tabs: When the Console is fully extended,
the railway system will lock. Push the release tabs to unlock
the Console so that it can be slid back in.
9 Console Port Section: The included cable kit required to
connect the Console to your server or KVM switch plugs
in here.
10 Power Socket: The included Power Adapter plugs in here.
1
4
2
3
6
7
8
9 10
5
