PARTS INFORMATION
[email protected] Page 5
THT-2530/40

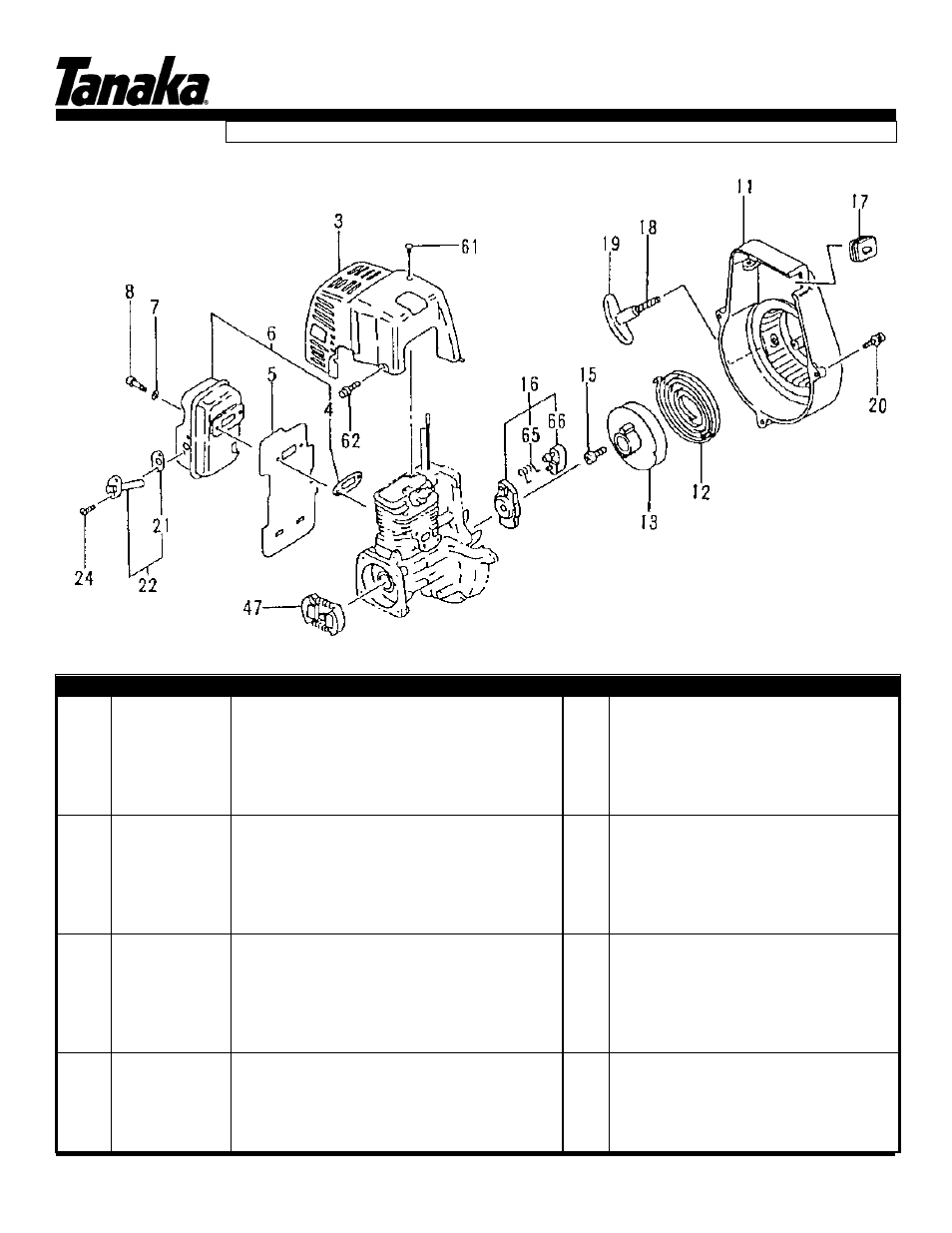

CLUTCH, STARTER, MUFFLER COMPONENTS • FIGURE 4
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
03 738-06600-20 PROTECTOR,MUFFLER 1
04 737-06500-200 GASKET,MUFFLER 1
05 133-06500-200 SHIELD,HEAT 1
06 704-06500-90 SET,MUFFLER 1
07 992-01050-011 WASHER,5 2
08 990-51050-503 BOLT,HEX,5X50 2
11 112-06500-80 CASE,FAN 1
12 780-06097-200 SPRING,RECOIL 1
13 774-06097-200 PULLEY,STARTER 1
15 839-02010-20 SCREW,SET 1
16 798-06500-900 PULLEY,STARTER,ASS’Y 1
17 203-0604A-202 GROMMET 1
18 783-06097-200 ROPE,STARTER 1
19 785-06410-200 HANDLE,STARTER 1
20 994-15040-162 SCREW,PS,4X16 3
21 751-06500-200 GASKET, TAIL PIPE 1
22 721-06611-90 SET,TAIL PIPE 1
23 994-34040-081 SCREW,4X8/S 2
47 277-0634F-900 CLUTCH,ASS’Y 1
61 990-72045-164 SCREW,TAPPING,4.5X16 1
62 994-25040-128 BOLT,PS,4X12 2
65 790-06097-200 SPRING,STARTER PAWL 1
66 788-06500-20 PAWL,STARTER 1
