Page 15

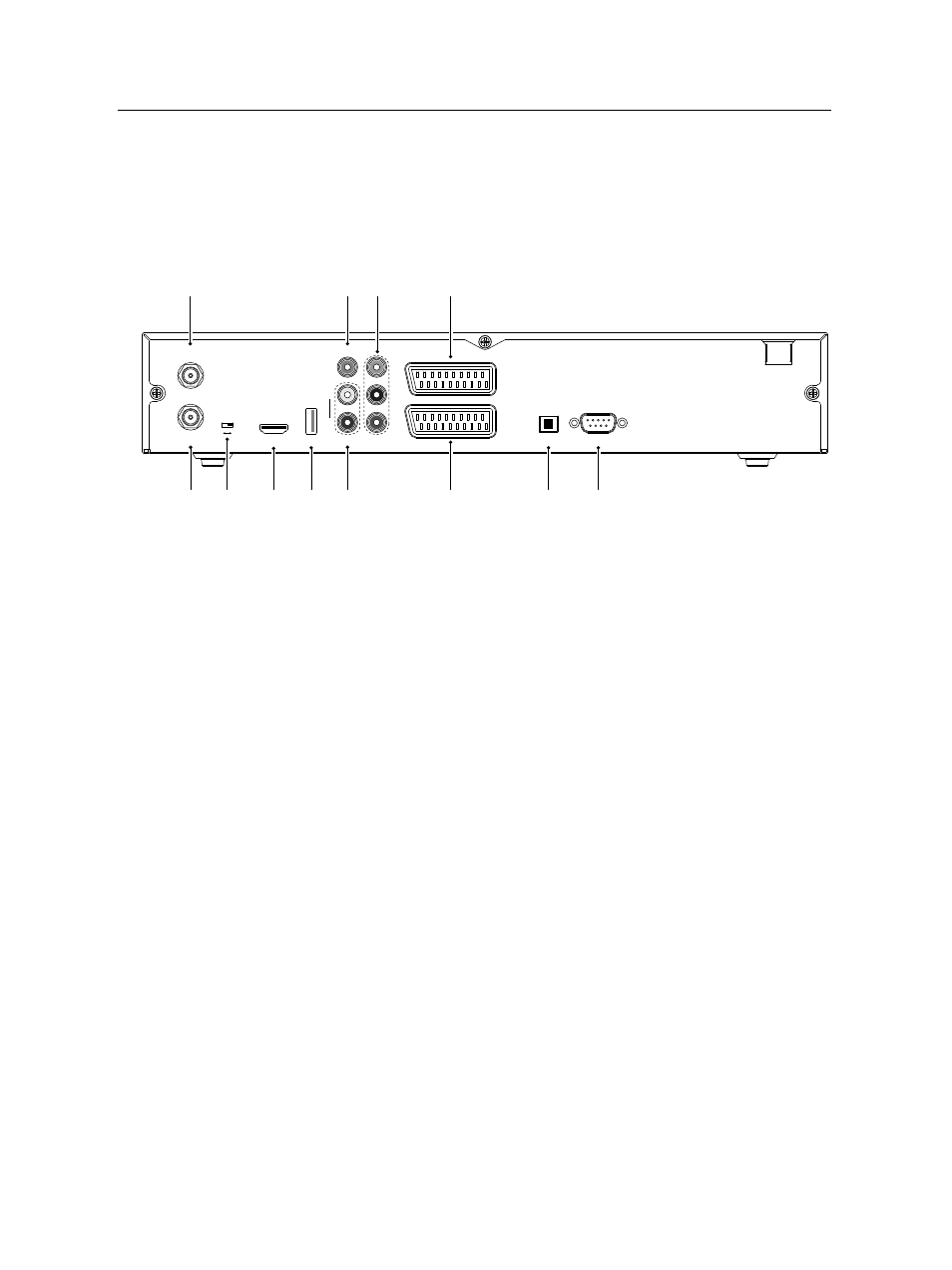

2.3 Rear panel connections
9
2.3
Rear panel connections
The TF 7710 HSCI/TF 7720 HSCI has some connections on the
back panel.
HDMI
Y
USB
Pb
Pr
AUDIO
VIDEO
L
R
TV
VCR
RS-232
S/PDIF
YPbPr
SCART
1
2
3
4
5
6
7
8
9
10
11
12
LNB IN
LNB OUT
Check what connections your television set has in comparison
with the digital receiver.
1
LNB IN
Satellite broadcasting signal input socket.
2
LNB OUT
Satellite broadcasting signal output socket
through the LNB IN socket for another digital
receiver.
3
YPbPr ↔ SCART
Video output selection switch. See
§
for more details.
4
HDMI
Audio and video output socket for the high
definition television set.
5
USB
USB port for firmware update and data trans-
fer.
6
VIDEO
Composite video output socket for the televi-
sion set. (yellow)
7
AUDIO L/R
Stereo audio output socket for the television
set or the audio system. (white/red)
8
Y/Pb/Pr
Component video output socket for the tele-
vision set. (green/blue/red)
