Troy-Bilt 7524 - Manual (Page 24)

24

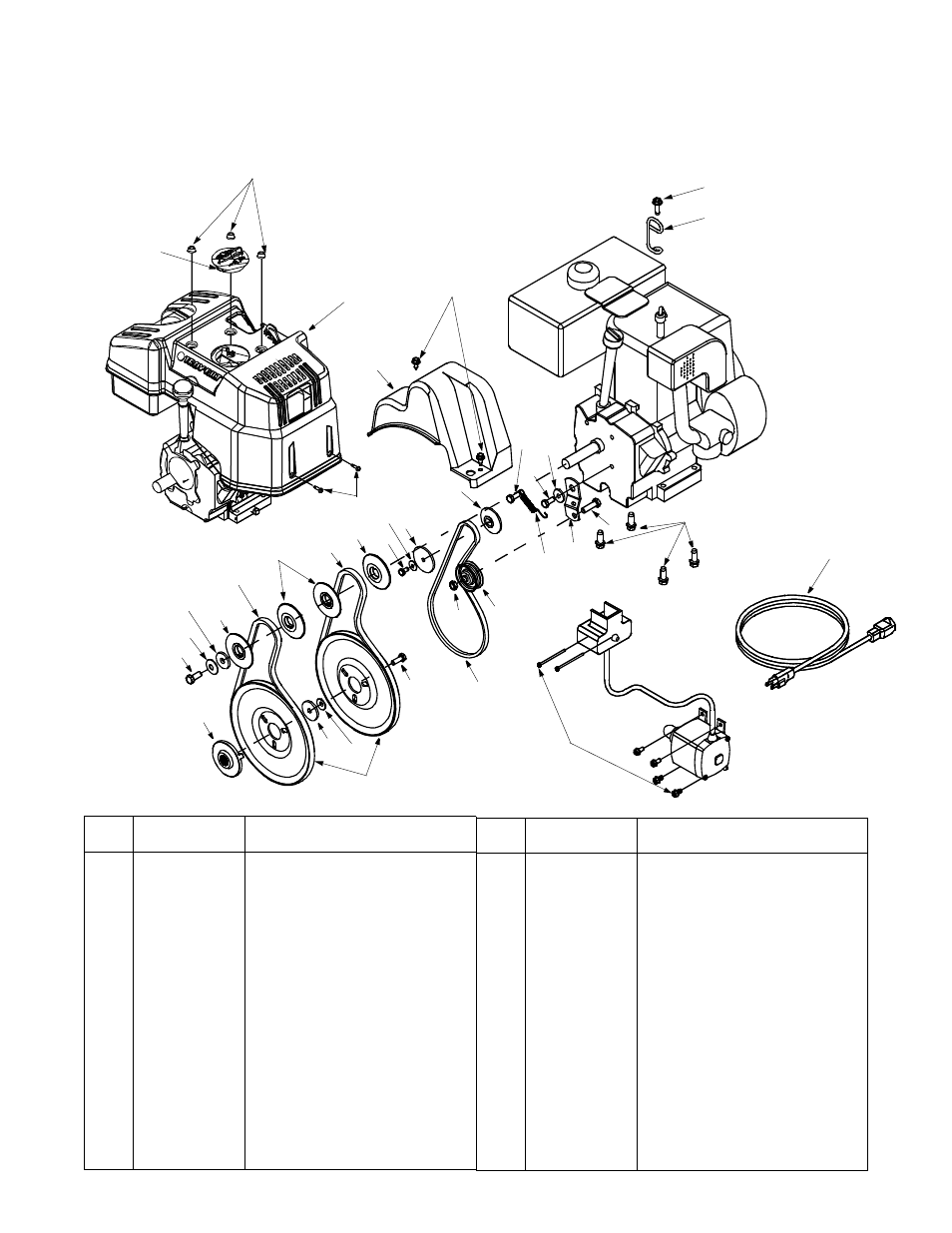

Models 7524 / 8526
Ref.
No.
Part No. Description
1. 05896A Idler Brkt.
2. 710-1245B Hex Hd. Cap Screw 5/16-24 Thd.
3. 710-0230 Hex Hd. Cap Screw 1/4-28 Thd.
4. 710-0627 Hex Hd. Cap Screw 5/16-24 Thd.
5. 710-0654A TT-Tap Screw 3/8-16 Thd.
6. 710-0696 Hex Hd. Screw 3/8-24
7. 710-1652 TT-Tap Screw 1/4-20 Thd.
8. 710-3005 Hex Hd. Cap Screw 3/8-16 Thd.
9. 712-0181 Jam Nut
10. 731-1324 Belt Cover
11. 732-0710 Extension Spring
12. 736-0242 Bell Washer
13. 736-0247 Fl-Washer .406 I.D. x 1.25 O.D.
14. 736-0270 Bell Washer
15. 736-0331 Bell Washer
16. 736-0505 Fl-Washer .34 I.D. x .50 O.D.
17. 748-0234 Shoulder Spacer
18. 748-0360 Pulley Adapter
19. 754-0346 V-Belt 3/8
20. 754-0430B Belt
21. 756-0313 Flat Idler Pulley
22. 756-0569 Half Pulley
23. 756-0967 Auger Pulley
24. 756-0986 Half Pulley
25. 756-0987 Half Pulley
26. OEM-390-987 Electric Start Kit
27. 684-04011 Spark Plug Cap
28. 629-0071 Extension Cord
29. - Part of Engine
30. 732-0705 Cable Control Wire
31. 712-3004A Flange Lock Nut, 5/16-18 Thd.
32. 710-04082 Screw, #10-16 x .75
33. 684-04014 Engine Shroud (Incl. Ref. 27)
Ref.
No.
Part No. Description
7
30
29
17
4
4
25
32
24
14
3
22
20
22
11
1
8
5
21
9
19
26
2
12
16
23
28
20
22
13
15
6
18
10
31
33
27
