2. Align the shelf with the previously installed
clip nuts and attach the shelf with the 10-32
screws that are provided. Once the screws have
started in all four corners, tighten all of the screws.
FIXED SHELF ADJUSTMENT
1. To adjust the Fixed Shelf, loosen the bracket screws,
move the brackets, then re-tighten the screws.
(figure 5)
1. Install the front and rear shelf brackets as
shown on both the left hand and on the
right hand side of the shelf.
(figure 3)
FIXED SHELF INSTALLATION

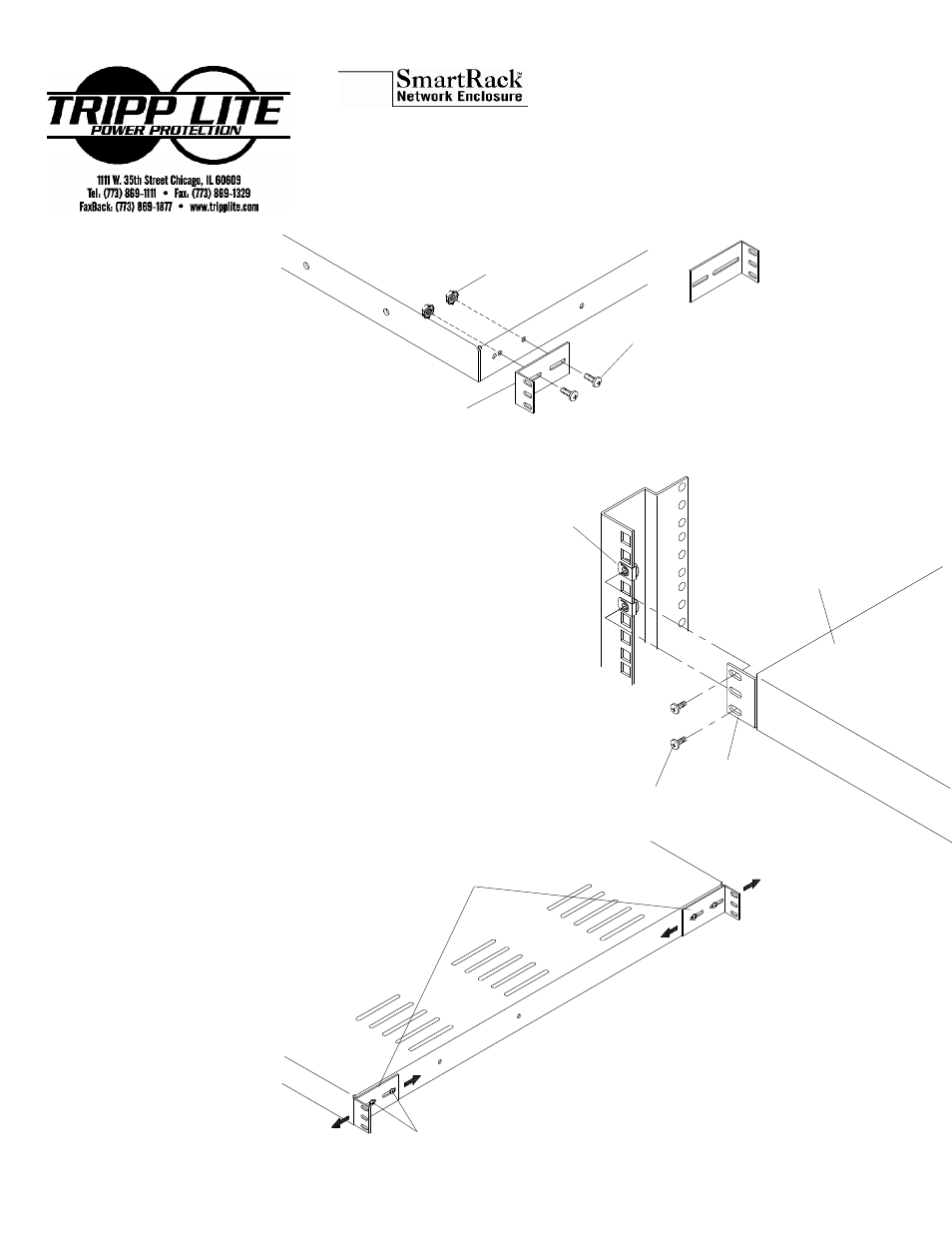

Figure 3
Clip nuts
Fixed shelf
#10-32 x 5/8" Pan
Head Machine Screws
Bracket
Shelf brackets
Screws
Shelf bracket
Lock nuts
#10-32 x 3/8" Phillips
Pan Head Screws
Figure 4
Figure 5
2
Rack Mount Fixed Shelves
SRX2 and SRX3
Manual Part #93-1937
01/18/02 rev. A
