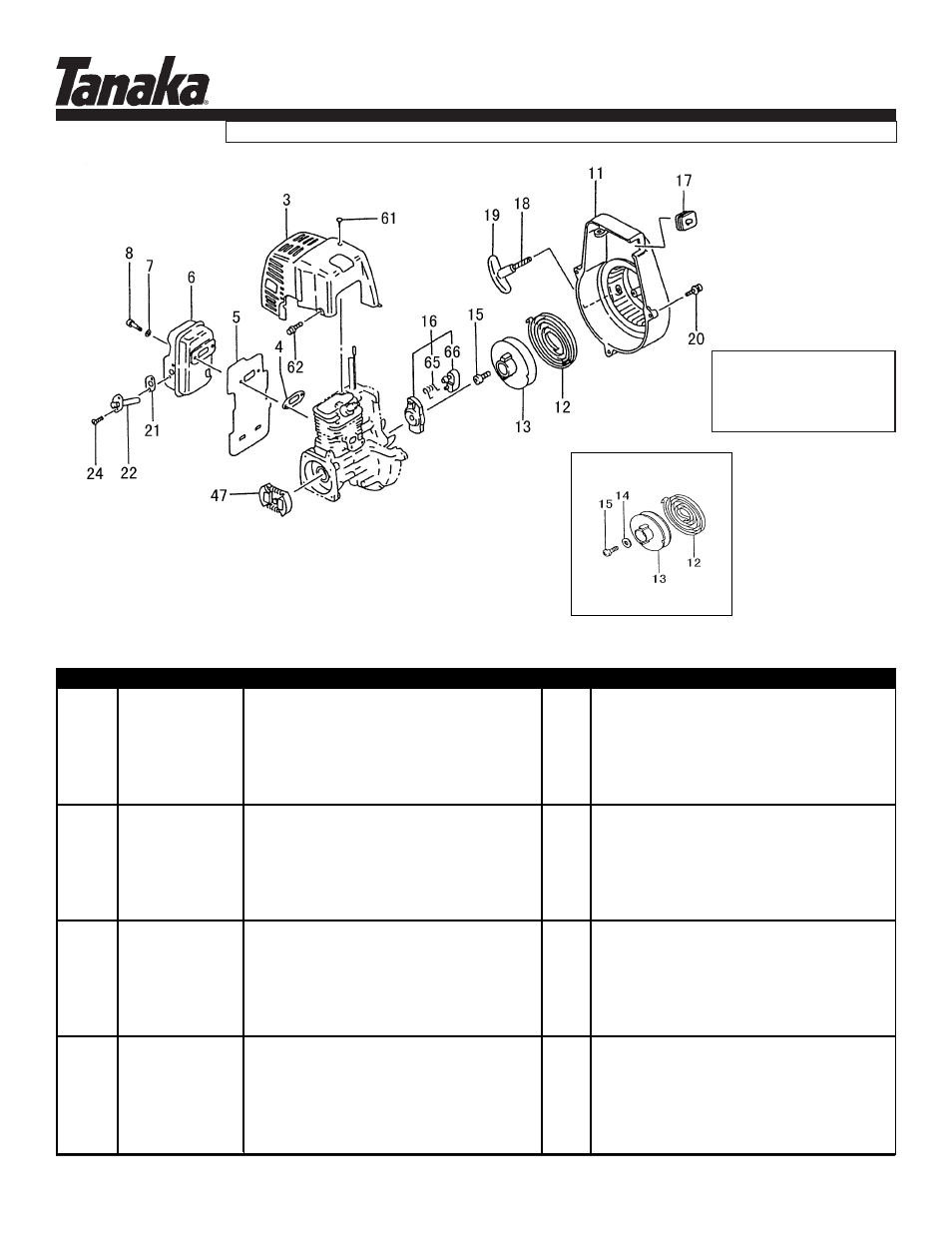

STARTER, MUFFLER, COVER • FIGURE 4

ITEM

PART NUMBER

DESCRIPTION

QTY

COMMENTS

4-3

7380650020

PROTECTOR,MUFFLER

1

4-4

73706500200

GASKET,MUFFLER

1

4-5

13306500200

SHIELD,HEAT

1

4-6

70606500800

MUFFLER

1

4-7

99201050011

WASHER,5

2

4-8

99051050503

BOLT,HEX,5X50

2

4-11

1120650080

CASE,FAN

1

4-12

78006097200

SPRING,RECOIL

1

4-13

77406097200

PULLEY,STARTER

1

4-14

80106091200

WASHER,ROPE REEL

1

~Q005150

4-15

8390201020

SCREW,SET

1

4-16

79806500900

PULLEY,STARTER,ASS'Y

1

4-17

2030604A202

GROMMET

1

4-18

78306097200

ROPE,STARTER

1

4-19

78506410200

HANDLE,STARTER

1

4-20

99415040162

SCREW,PS,4X16

3

4-21

75106500200

GASKET,MUFFLER

1

4-22

7210650090

PIPE,TAIL

1

4-24

99434040081

SCREW,4X8/S

2

4-47

2770634F900

CLUTCH,ASS'Y

1

4-61

99072045164

SCREW,TAPPING,4.5X16

1

4-62

99425040128

BOLT,PS,4X12

2

4-65

79006097200

SPRING,STARTER PAWL

1

4-66

7880650020

PAWL,STARTER

1

Recoil Starter Assy

Use #762.06500.90

Includes items #11-#19
