6
Ref
er
ence
W
elcome to Toshiba
Connecting
y
our T
V
Using the
Remote Contr
ol
Setting up
y
our T
V
Using the T
V
’s
F
eatur
es
Appendix
Index
ANT (75 Ω)
ANT-1 OUT ANT-2
IN
VIDEO 1 VIDEO 2
S-VIDEO
VIDEO
L/MONO
R
AUDIO
OUT
VIDEO
L/MONO
R
AUDIO
DVD IN
COLOR
STREAM
INPUT
L
R
AUDIO
Y
Pb
Pr
ANT (75 Ω) ANT-1 OUT ANT-2 IN
VIDEO 1 VIDEO 2
S-VIDEO VIDEO L/MONO R AUDIO
OUT VIDEO L/MONO R AUDIO
DVD IN COLOR
STREAM
INPUT L R AUDIO
Y Pb Pr
Welcome to Toshiba
Congratulations! You have purchased one of the finest color TVs on
the market. The goal of this manual is to guide you through setting
up and operating your Toshiba TV as quickly as possible. Please make
sure you have received the following items: TV, remote control,
batteries, owner’s manual, registration card, and extended service plan
literature. If you did not receive all of the items or if any of the items
are damaged or broken, please contact your Toshiba dealer. In
addition, you may need to purchase other audio or video cables to
connect your equipment. See “Connecting your TV” on page 7 for
more information.
Please read all safety and operating instructions carefully before you
proceed.

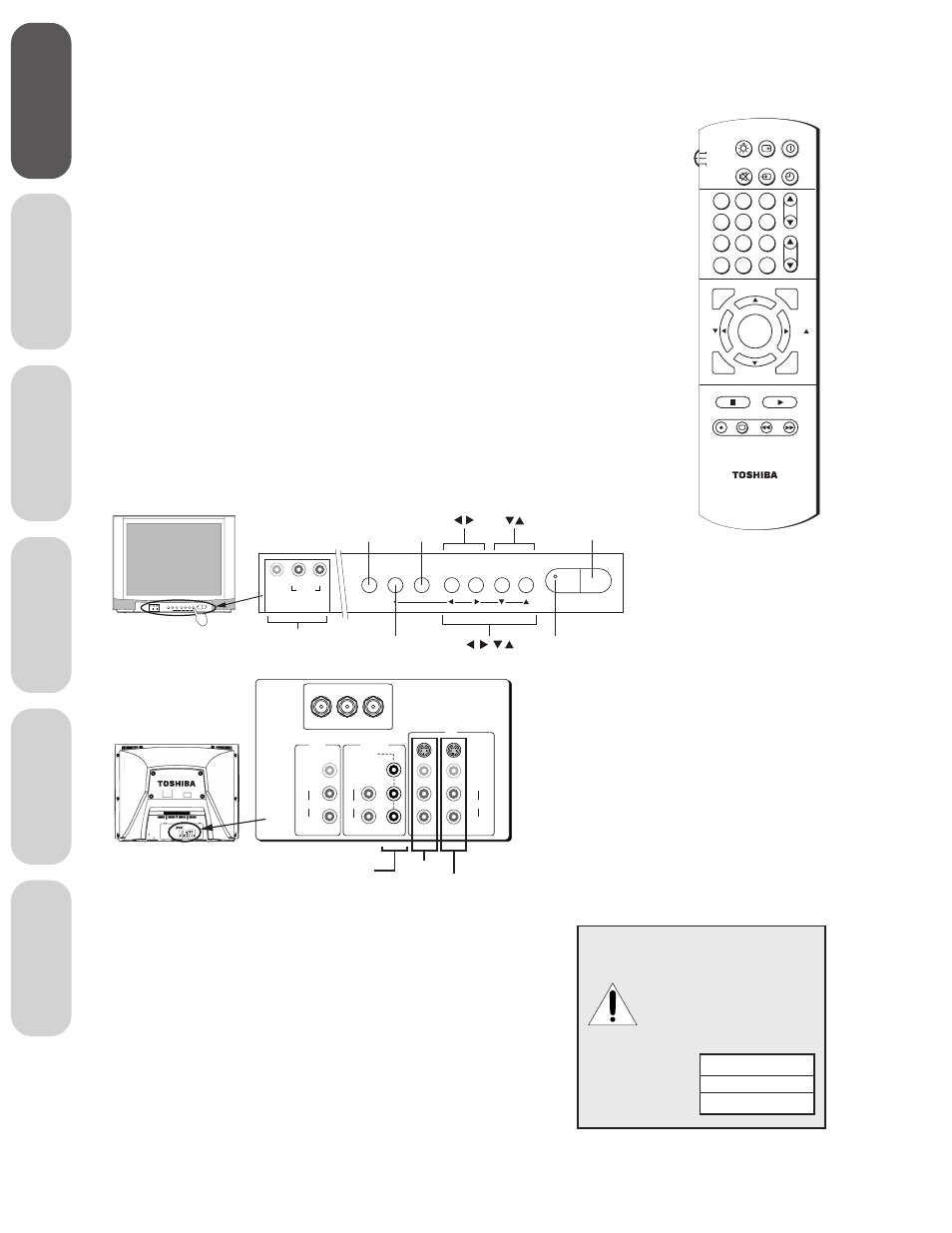

Exploring your new TV
You can operate your TV using the buttons on the front panel or the
remote control. The back panel provides all the terminal connections
you will need to connect other equipment to your TV.
Selecting a location for the TV
• Place the TV on the floor or on the recommended TV stand (see
“Notice of Possible TV Stand Instability” at right).
• Place the TV in a location where light does not directly hit the
screen.
• Place the TV far enough from the walls to allow proper ventilation.
Inadequate ventilation may cause overheating, which may damage
the TV.
The serial number is on the back of your TV. Record the number in
the space below. Refer to the model and serial numbers whenever you
communicate with your Toshiba dealer about this TV.
Model number: ________________________
Serial number:
________________________
NOTICE OF POSSIBLE
TV STAND INSTABILITY
WARNING: RISK OF SERIOUS
PERSONAL INJURY OR DEATH!
Use your TV with the Toshiba TV
stand recommended below only !
Use with other
stands may result
in instability,
causing possible
injury or death.
CH RTN
ADV/
PIP CH
ADV/
PIP CH
TV
CABLE
LIGHT
MUTE TV/VIDEO TIMER
RECALL POWER
VCR
CH
VOL
ENT
ENTER
PLAY PIP
REC
STILL LOCATE SWAP
TV/VCR REW FF
STOP SOURCE
FAV FAV
C.
CAPT
EXIT
MENU
RESET
1
4
7
2
5
8
3
6
9
0 100
CT-9946
36AF61 – Back
Video 1
ColorStream
(component video)
Video 2
TV Model TV Stand
27AF61 —
36AF61 ST3661
36AF61
Video 3
(behind door)
VIDEO L/MONO R
AUDIO
VIDEO-3 IN
Menu
Channel
TV/Video
Volume
Remote Sensor
POWER Demo
DEMO MENU TV/VIDEO VOLUME CHANNEL
POWER
VIDEO L/MONO R AUDIO VIDEO-3 IN
DEMO MENU TV/VIDEO VOLUME CHANNEL
POWER
36AF61 – Front
Note:
This manual applies
to models 27AF61
and 36AF61, and
there are slight
differences between
them. Check the
model of your TV
before using this
manual. Model
36AF61 is used for
illustration purposes.
Instructions in this
manual are based
on using the remote
control.
Note:
Model 27AF61 does not have
a DEMO button on the front
panel (see “Viewing the
demonstration mode” on
page 36).
