10

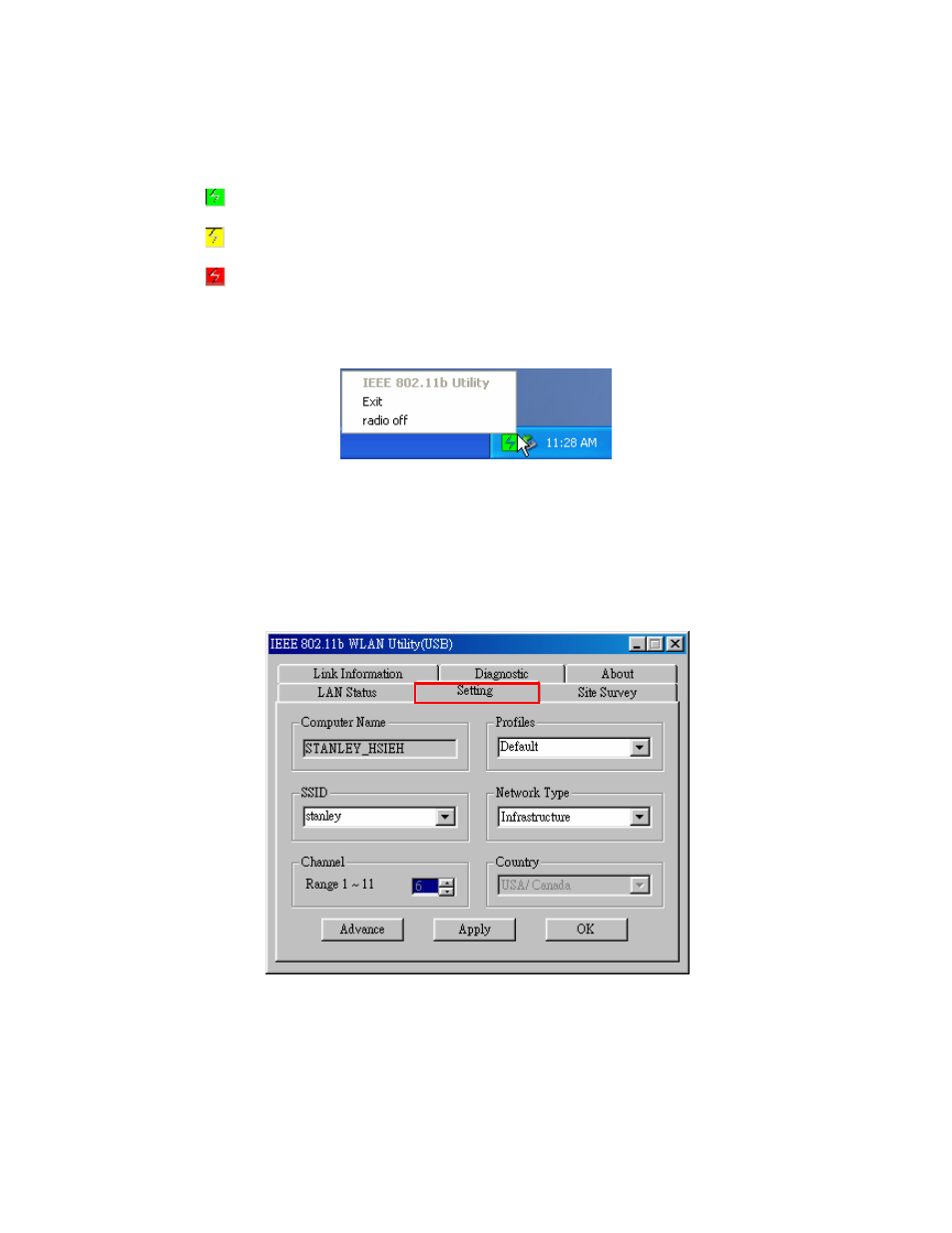

3. The

IEEE 802.11b WLAN Utility (USB) window will appear.

™

One of following signal icons will appear in the system tray (bottom right corner) after the

WLAN Utility has executed.

(Green): Connected

(Yellow): Low Quality

(Red): Disconnected

™

You can right-click the signal icon, and select Exit to close the IEEE 802.11b WLAN

Utility (USB) window, or select radio off to disable the Wireless LAN function.

Connect to an Access Point (Infrastructure Mode)

Follow the procedures below to connect with an Access Point:

1. Execute

the

WLAN Utility.

2. Select

the

Setting tab in the IEEE 802.11b WLAN Utility (USB) window.

3. Select

Infrastructure as the Network Type.
