True Food Service Equipment, Inc.
5 5
INSTALLATION / OPERATION INSTRUCTIONS
VENTILATION
Set unit in its final location. Be sure there is adequate
ventilation in your room. Maximum ambient operating
temperature is 75˚F / 55% humidity.
WARNING
Warranty is void if ventilation is insufficient.
SEALING CABINET TO FLOOR
Step A - Position Cabinet
When positioning cabinet into a final location make sure
there are no obstructions in front of the intake and exhaust
areas. These areas are located in the front and back of the
cabinet.
Step B - Level Cabinet
Cabinet should be level, side to side and front to back.
Place a carpenter’s level in the interior floor in four places:
1. Position level in the inside floor of the unit near the
front. (Level should be parallel to cabinet front). Level
cabinet.
2. Position level at the inside rear of cabinet. (Again level
should be placed parallel to cabinet back).
3. Perform similar procedures to steps 1 & 2 by placing
the level on inside floor (left and right sides — parallel
to the depth of the cooler). Level cabinet.
Step C
Draw an outline on the base on the floor.
Step D
Raise and block the front side of the cabinet.
Step E
Apply a bead of “NSF Approved Sealant”, (see list below),
To floor half inch inside the outline drawn. The bead
must be heavy enough to seal the entire cabinet surface
when it is down on the sealant.
Step F
Raise and block the rear of the cabinet
Step G
Apply sealant on floor as outline in Step E. on other three
sides.
Step H
Examine to see that cabinet is sealed to floor around
entire perimeter.
NOTE
Asphalt floors are very susceptible to chemical attack. A
layer of tape on the floor prior to applying the sealant will
protect the floor.
NSF Approved Sealants:
1. Minnesota Mining #ECU800 Caulk
2. Minnesota Mining #ECU2185 Caulk
3. Minnesota Mining #ECU1055 Bead
4. Minnesota Mining #ECU1202 Bead
5. Armstrong Cork - Rubber Caulk
6. Products Research Co. #5000 Rubber Caulk
7. G.E. Silicone Sealer
8. Dow Corning Silicone Sealer

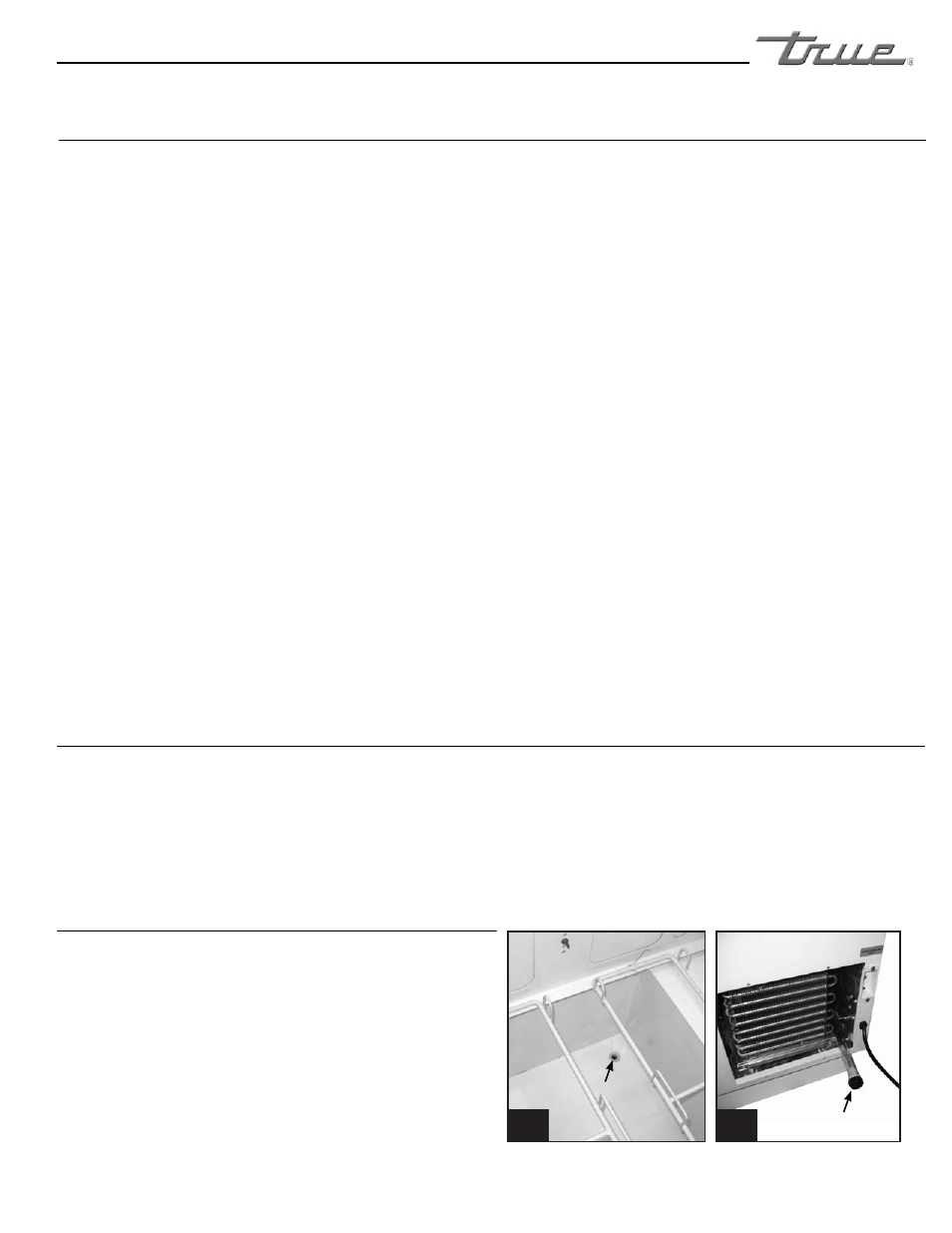

CABINET DRAIN
TRUE Dipping Cabinets have a drain at the bottom of
the unit. (See image 1). The drain hose is located behind
the rear grill of the unit. (See image 2). Back out four
1/4" hex head screws to remove the rear grill when
accessing this drain hose. When cleaning the unit make
sure the drain hose is connected to
a garden type hose that is routed to a floor drain.
Drain Hose
Cabinet Drain
1 2
