Troy-Bilt 654J - Manual (Page 23)

23
8 7
3
12
10
11
2
17
18
9
6
13
15
16
14
1
5
4

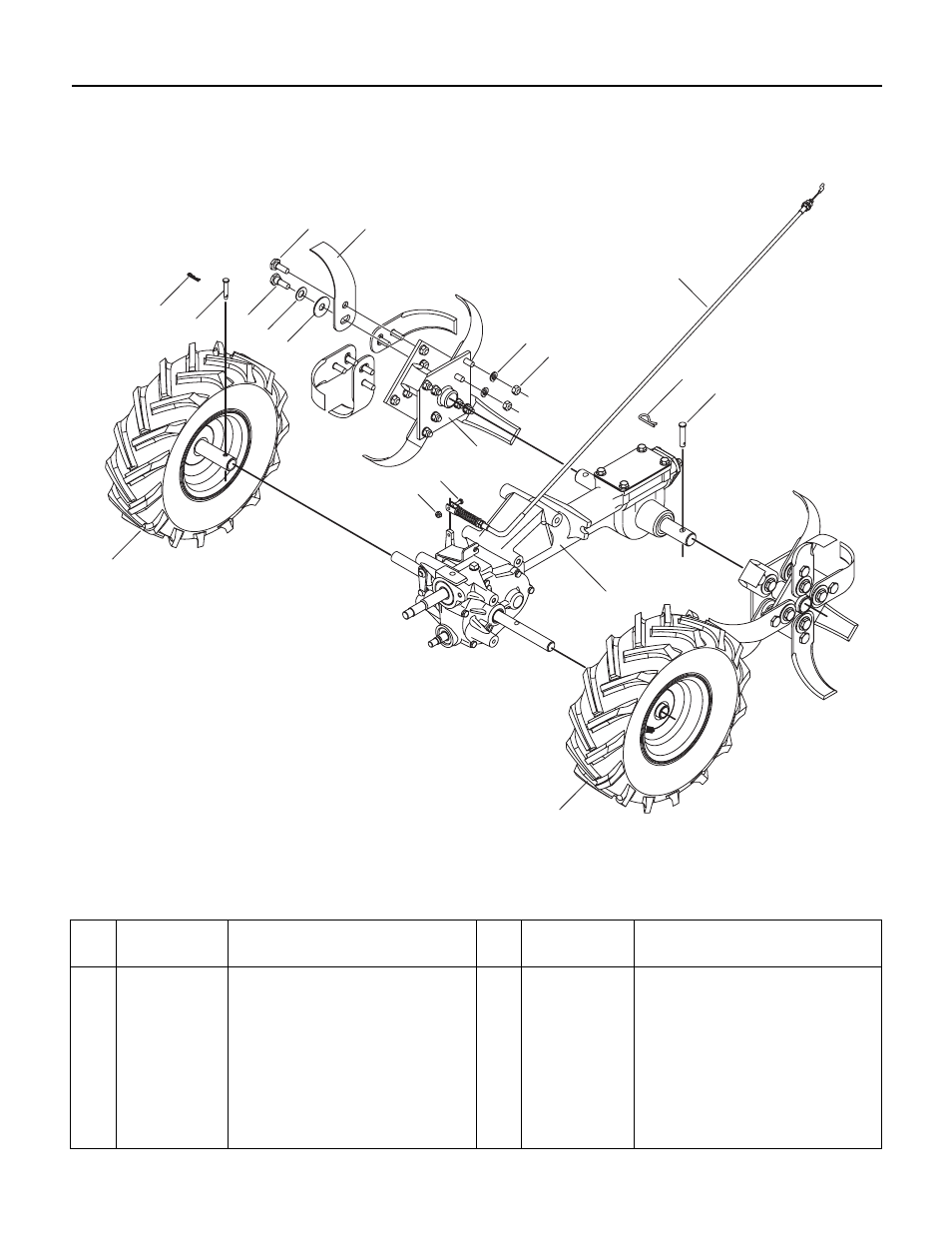

Wheels and Tines
REF
NO.
PART NO. DESCRIPTION
1 642-04015 Adapter Assembly, Tine
2 712-3054 Nut, 3/8-24, Hex, Lock
3 736-0169 Washer, Lock, 3/8, Regular Duty
4 736-0208 Washer, Flat, .51 x 1.5 x .07
5 736-0253 Washer, Bell, .525 x 1.00 x.050
6 738-0688 Screw, Shoulder 1/2 Dia x .325
7 738-0689 Screw, Shoulder 1/2 Dia x .180, 3/8-2
8 742-0305 Tine, Articulating
9 618-04120 Transmission Assembly, Dual Direction
10 710-1194 Screw, Machine, #10-24, 1.00, Gr5
11 712-0161 Nut, Hex Lock, #10-24, Gr2, Nylon
12 746-04150 Cable, Shift, Wheel
13 634-0240 Wheel, Complete, 14 x 4.5 x 6, RH, Gray
14 634-0241 Wheel, Complete, 14 x 4.5 x 6, LH, Gray
15 711-1017 Pin, Clevis, .250 x 1.53
16 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg
17 714-0149B Internal Cotter Pin
18 711-0415 Pin, Clevis, 3/8, 1.75
REF
NO.
PART NO. DESCRIPTION
SECTION 7: MODEL 654J PARTS LIST
