Installation
Installing the TERK XM5 Marine Satellite Radio Antenna (continued)

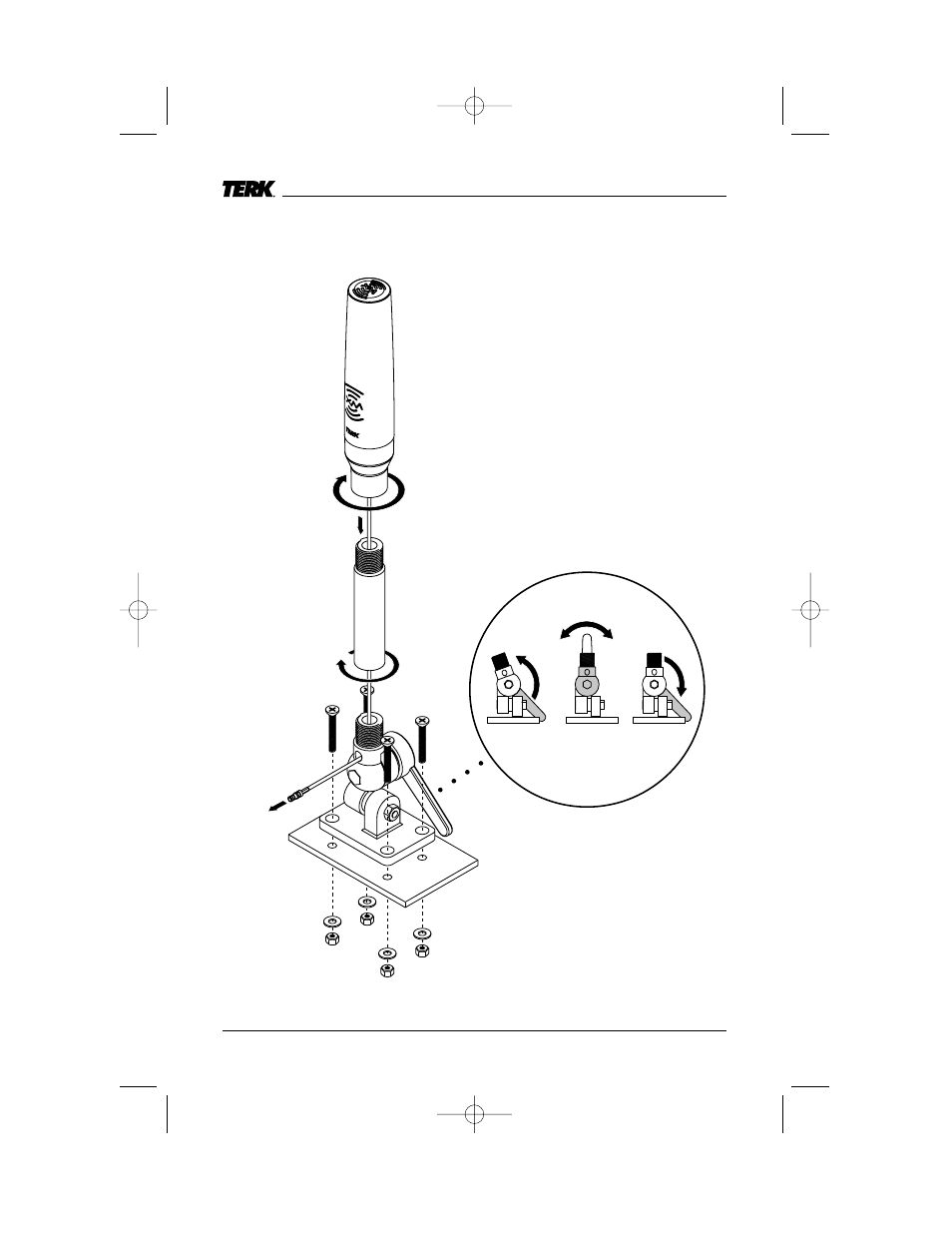

Figure 6. Installing the TERK XM5 antenna and bracket.
8
Installation
XM5 Antenna
(with 30' of attached cable)
Antenna Extension
(optional – length
determined by application)
Adjusting the Tilt
(side view)
❷
adjust tilt
(10
°
increments)
❶
unlock
❸
lock
Mounting Bracket
(with adjustable, ratchet tilt)
For parts,
see figure 4
on page 6.
For parts,
see figure 4
on page 6.
Mounting Surface
diam. = 0.25"
Antenna Cable
To Splitter, see
figures 7 and 8
on page 9.
