Installation
Parts for TERK XM5 Marine Satellite Radio Antenna

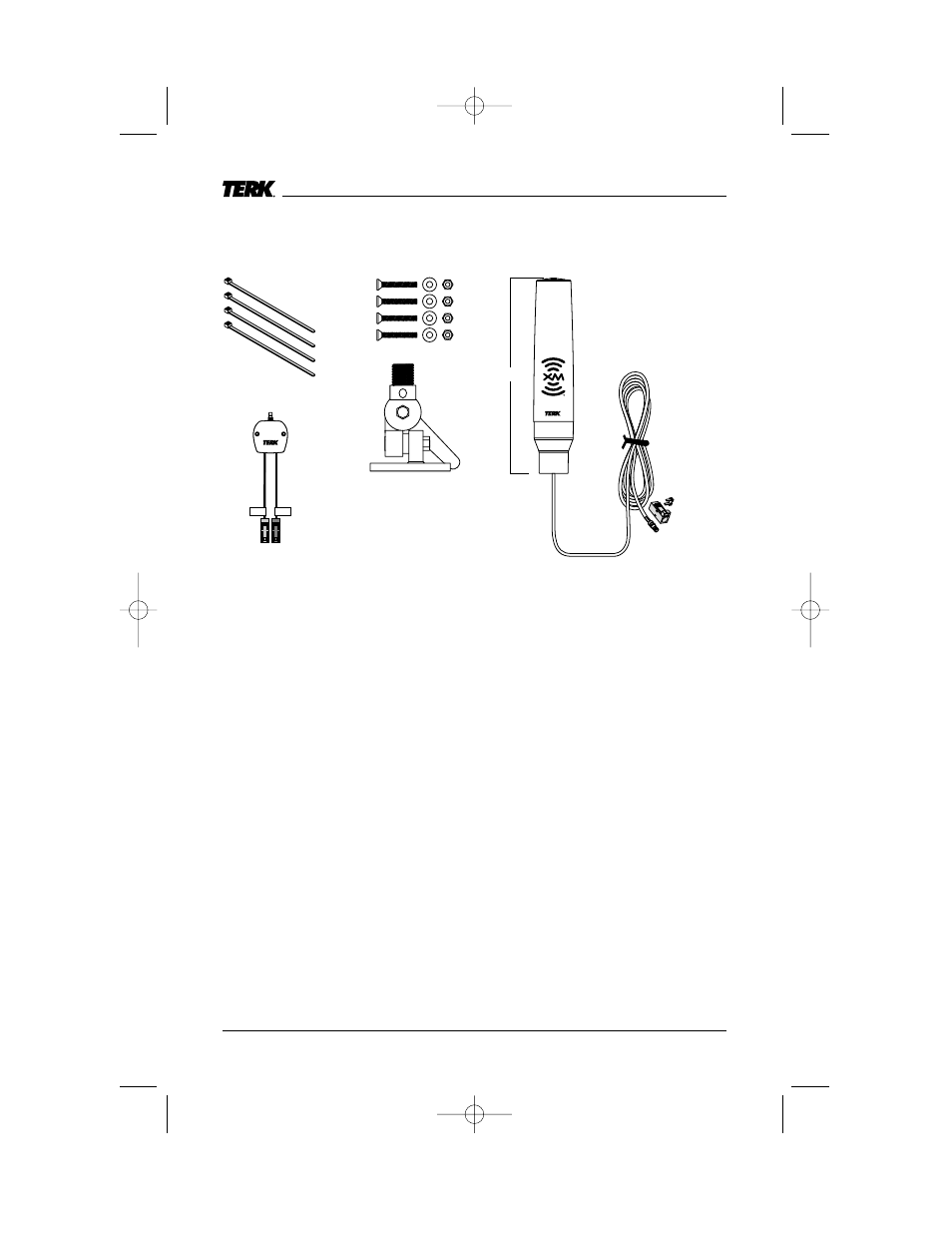

Figure 4. Verify that your TERK XM5 package includes the above items.
Recommended Tools and Supplies
• Any electric drill and bits (to drill mounting holes for the mounting bracket)
• Any socket tool/wrench set (to tighten machine bolts and hex nuts)
• Any tool to help cable routing (e.g., flat dental pick, screwdriver, etc.)
• Grommets and silicone sealer (for cable routes)
• (Optional) Antenna Extension with 1"-14 threads
• (Optional) Substitute any mounting bracket with 1"-14 threads for the supplied bracket
Installation Precautions and Tips
• When selecting an antenna location, make sure the antenna is not enclosed by any metal material.
If a metal fly bridge is to be used, the antenna must protrude at least 5 inches above the bridge’s
top edge. Consider using an antenna extension to increase the height above the boat.
• Also, at the proposed site, verify that there is at least a 20-degree clearance from any metallic
obstruction on all sides, as shown in figure 5 (on the next page).
• Prior to installation, turn off all audio systems and other electrical devices. Disconnect the (–)
negative lead from the boat’s battery.
• At the installation site, locate and make a note of all fuel lines, cables, and electrical wiring.
Use extreme caution when cutting or drilling in and around these areas. Always wear protective
eyewear when using tools.
6 Installation
SAT TER
(4) Cable Tie Wraps
(1) Splitter
(1) Mounting Bracket
With Mounting Hardware
(4) Hex Bolts/Washers/Nuts
8.75"
(1) TERK XM5 Antenna
With 30'of Attached Coaxial Cable
(1) FAKRA
Case/Clip
