BACK CAN FITTED IN STUD PARTITON
451.0
[17.76"]
477.0
[18.78"]
3
89.1
[3.51"]
[0.49"min]
101.5 min
[4.00"min]
STUD WALL COVERING MATERIAL
FITTED AFTER BACK CAN HAS
BEEN INSTALLED IN POSITION.
440.0
[17.32"]
210.0
[8.27"]
139.0
[5.47"]
TOP
WALL COVERING MATERIAL
FITTED AFTER BACK CAN HAS BEEN
INSTALLED IN POSITION.
BACK CAN FITTED IN STUD PARTITION
STUD
12.5 min
0.49” min
101.6 min
4.00” min
440.0
17.32
89.0
3.51”
451.0
17.76”
139.0
5.47”
210.0
8.27”
Tannoy United Kingdom
Tannoy North America
Tannoy Deutschland
Tannoy France T: 00 44 (0) 1236 420199
T: 00 1 (519) 745 1158
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473 E: [email protected]
E: [email protected]
E: [email protected]
E: [email protected]
iw4 DC
Tannoy adopts a policy of continuous improvement and product specification is subject to change iW4DC data file issue:1.06 // 15.01.08

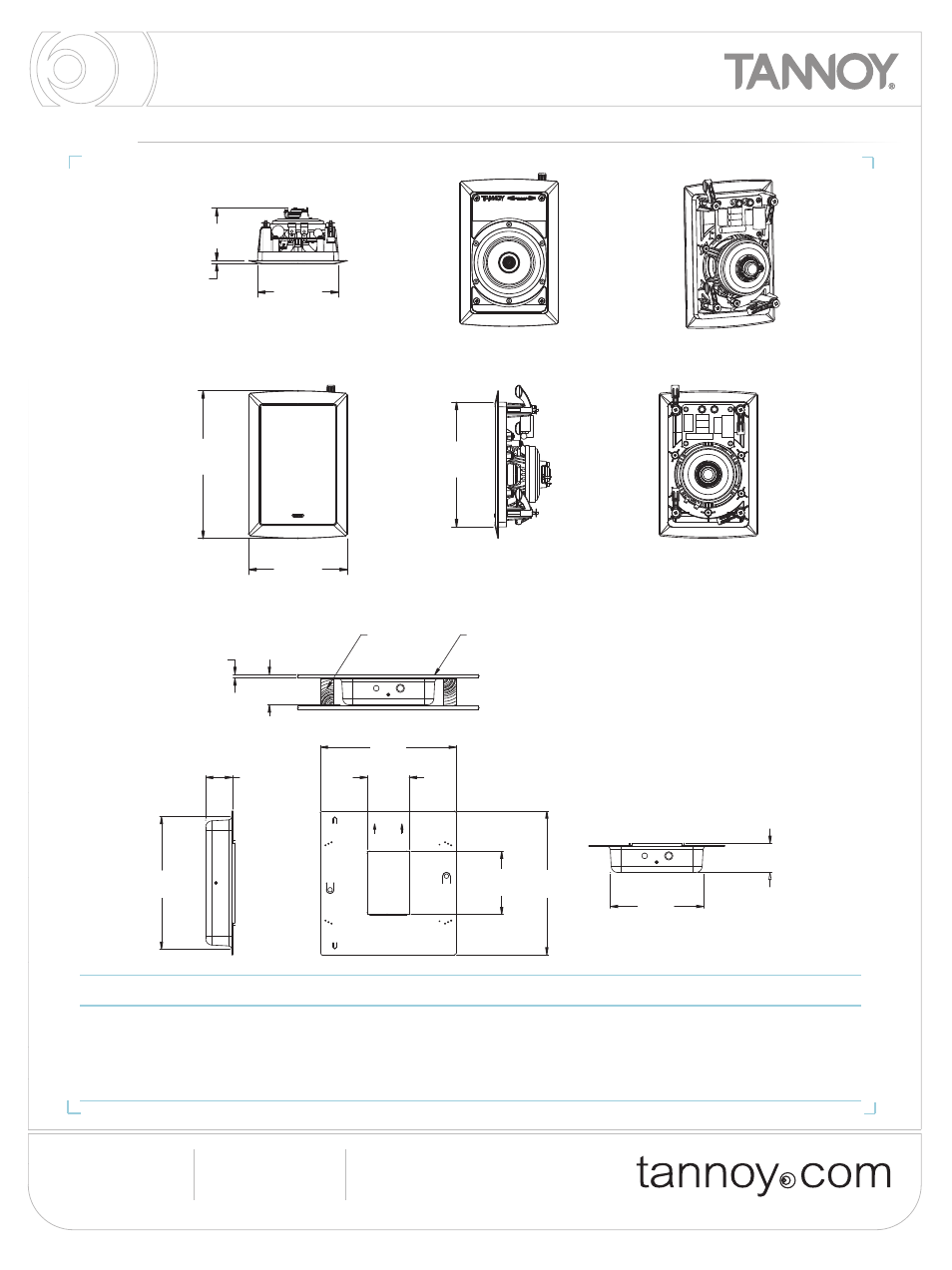

DIMENSIONAL SKETCHES & BACK CAN ACCESSORY
201.5
[7.93"]
130.5
[5.14"]
84.0
[3.31"]
5.0
[0.20"]
238.0
[9.37"]
159.0
[6.26"]
i
84.0mm
(3.31”)
130.5mm
(5.14”)
5.0mm
(0.20”)
238.0mm
(9.37”)
159.0mm
(6.267”)
201.5mm
(7.93”)
TEMPLATE HOLE CUTOUT SIZE - 206mm x 135mm [8.11” x 5.31”]
Ordering Information
8000 5130 iw4 TDC/DS Back Can Unpainted Steel 1 4.00Kgs (8.80lbs)
8000 5140 iw4 TDC/DS Transformer Back Can Unpainted Steel 1 11.00Kgs (23.1lbs)
8000 5100 Pre-install mounting ring for iw4 TDC/TS - - -
PACKED
WEIGHT
PACKED
QUANTITY
BAFFLE / GRILLE
COLOUR
MODEL NAME PART NUMBER
