TASCAM HD-R1
6–RS-232C Serial Interface
The HD-R1 is equipped with a 9-pin RS-232C port,
capable of receiving commands and sending status
information. The commands cover all transport
functions and a majority of settings. A document
detailing the HD-R1’s serial control protocol can be
downloaded from TASCAM’s web site.
Connector: 9-pin D-sub (female)
Mode: Asynchronous
Data rate: 9600 bps
Character length: 8 bits
Parity bit: none
Stop bit: 1 bit
Transmission order: Least significant bit first

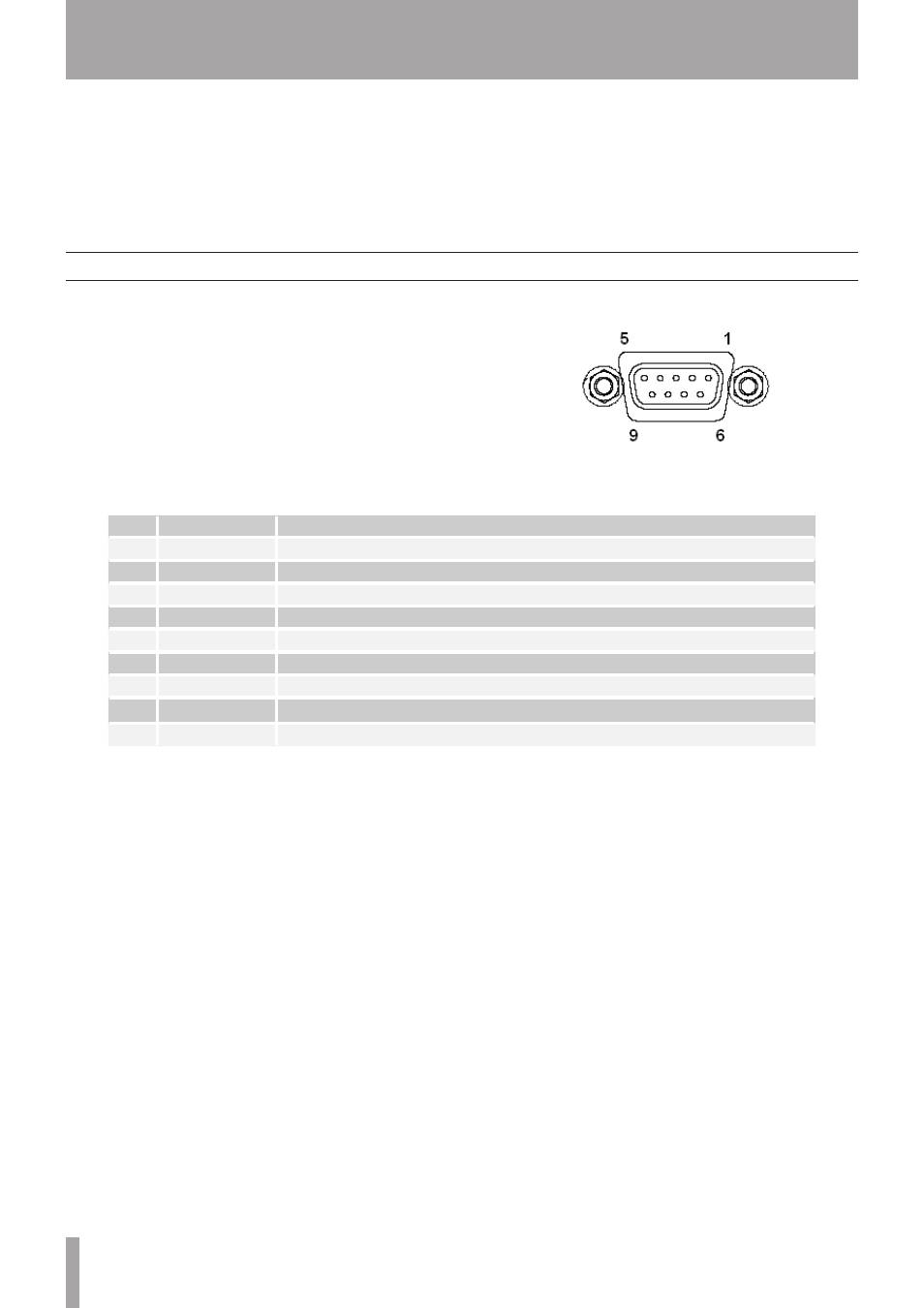

9-pin D-sub Connector Pinout
Serial interface specifications
Pin# Signal
Description
1
Unused
Unconnected within the HD-R1
2
Receive
Serial data into the HD-R1
3
Transmit
Serial data out of the HD-R1
4
Unused
Unconnected within the HD-R1
5
Ground
Connected to the digital ground plane within the HD-R1
6
Unused
Unconnected within the HD-R1
7
Unused
Unconnected within the HD-R1
8
Unused
Unconnected within the HD-R1
9
Unused
Unconnected within the HD-R1
