1.2 Features
•
DC to DC convertor for PC/104 bus equipped products.
•
“Load Dump” transient suppression on input power supply.
•
Operates from 6VDC to 40VDC input.
•
“Stacks” onto the PC/104 bus.
•
Passthrough or non-passthrough 8 bit and 16 bit versions.
•
5V, 12V standard, -12V, -5V and battery charger optional.
•
Highly compact, 100 percent PC/104 conforming.
•
AC bus termination available.
•
Screw terminals provide off-board connection to output voltages.

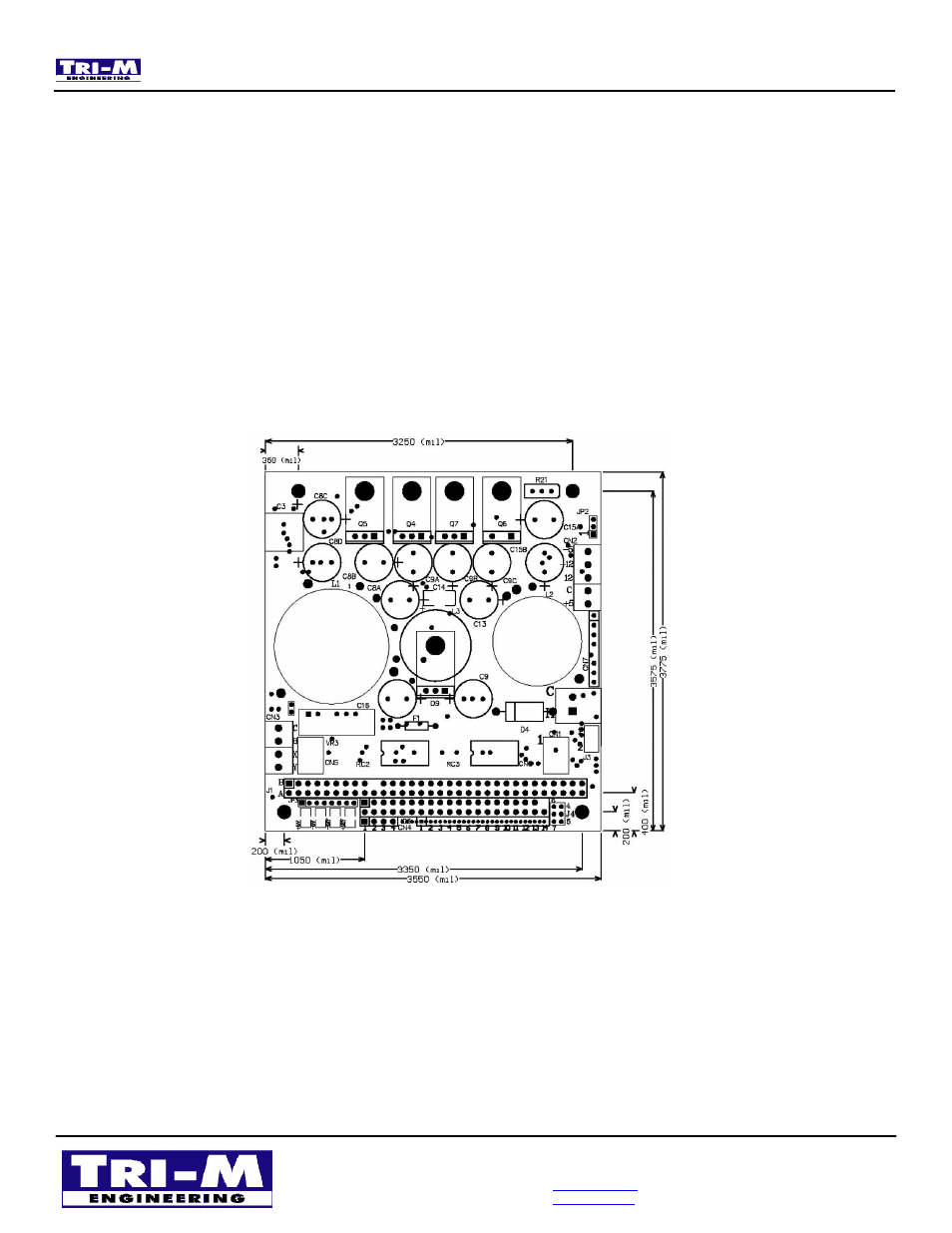

Figure 1-1, HE104 Dimensions
1000mil=1in
