Unpacking the system
You should have the following:
• one main unit (with 2 main speakers);
• one remote control;
• one AM loop antenna;
• one user’s guide;
• one Thomson Warranty Card

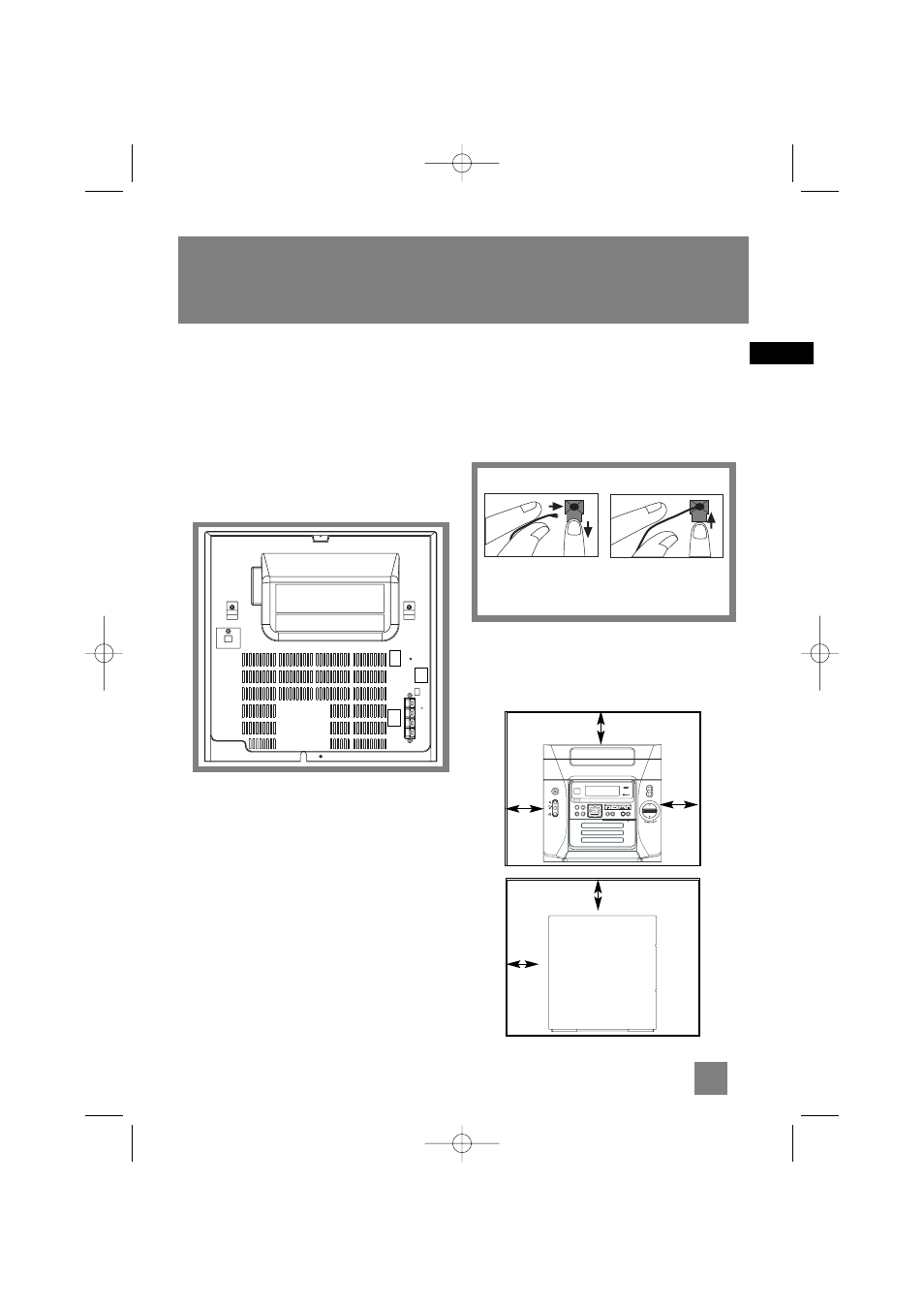

Back View
1. FM Pigtail Antenna
2. AM Loop Antenna Connector
3. Main Speaker Jacks
Using the FM and AM Antennas
Before you use your audio system, you’ll want to
make sure both the FM and AM antennas are
positioned properly. Uncoil the FM antenna at
the back of the unit, making sure it is fully
extended (you may even want to tape it to the
wall behind the unit if possible. The higher the
better.) You’ll also need to connect the AM
antenna loop to the back of the unit if you listen
to AM stations. Rotate the AM loop antenna for
better reception.
Connecting the Speakers
Match the red wire (on the left speaker) to red
terminal for the left speaker (L) on the back of
the unit and the black wire (on the left speaker )
to the black terminal for left speaker (L). Follow
the same procedure to connect the right (R)
speaker.
Installation
To ensure sufficient ventilation, keep the spacings
shown below free from other surfaces:
2
EN
Getting Started
DIGITAL TUNING PRESET EQ
RECORD PROG • SET
SOURCE
CLOCK
TUNE • PRESET TIMER
BAND DIMMER•DEMO
AUTO PROG
DISC SKIP
GAME •mp3•
CD-R / RW COMPATIBLE
S I M U L T A N E O U S P L A Y A N D L O A D S Y S T E M 5 DISC CHANGER
ON
R
L
ECO
OP EN • CLO SE
B. BOOST
ECO
IR SENSOR
CD INFO
CASSETTE DECK PLAYBACK/ RECORD
RDS
D I G I T A L L O G I C D E C K
PUSH
10 cm
10 cm
Front View
10 cm
10 cm
5 cm
Side View
MAIN SPEAKERS 6
FM ANTENNA
AM LOOP
RL
+
_
_
+
Release tab to lock wire in
the terminal.
NOTE: Make sure the insulation is completely removed from the
ends of the speaker wires at all connection points.
Speaker Wire Connection
Push Speaker terminal tab
down to insert wire.
1
2
3
