2. CAMERA PARTS AND FUNCTIONS
Top/Bottom/Front Side
1 2
[Top]
3
4
[Bottom]
5
[Front]

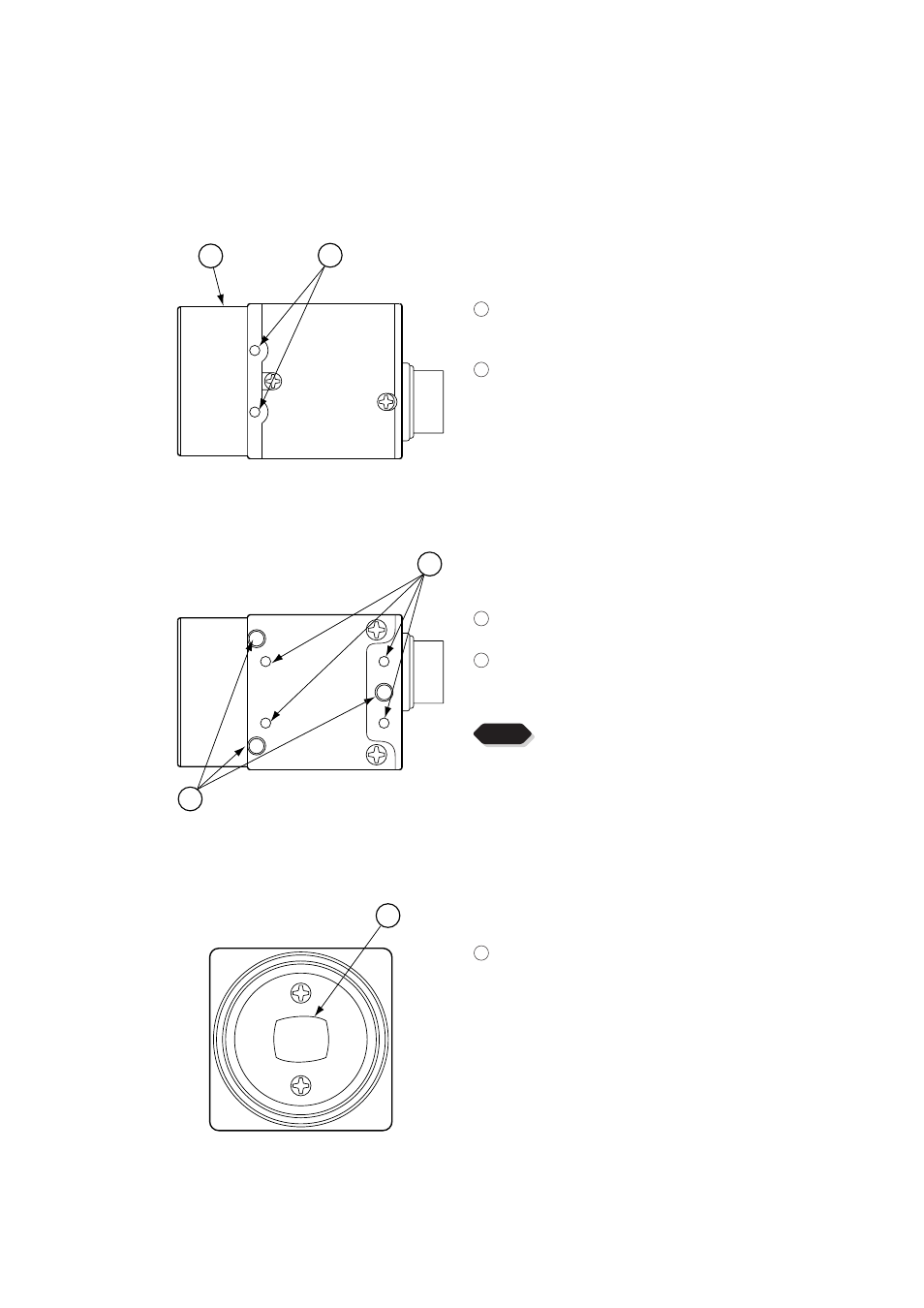

1 Lens mount (C mount)
This is used to mount a C-mount type lens or
optical equipment.
2 Camera fixing reference hole (top side)
3 Camera fixing reference hole/Tripod fixing metal
screw hole (bottom side)
4 Camera fixing reference hole/Tripod fixing metal
screw hole (bottom side)
NOTE
When the mass of lens exceeds 300g, fix the cam-
era at the side of the lens.
5 Imaging area
The protection cap is attached on the lens mount
portion. After removing the cap, mount the lens.
Be careful not to scratch or touch the optical
area.
